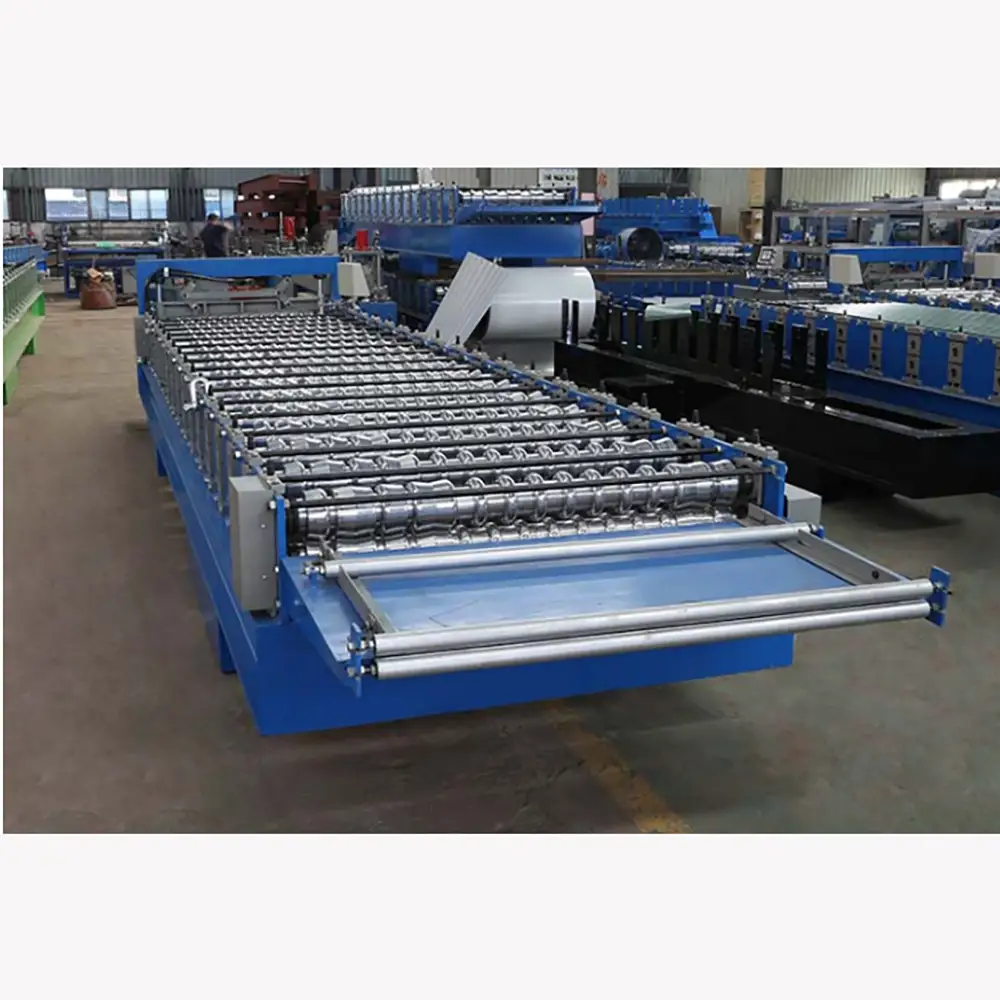

Corrugated Roof Panel Roll Forming Machine

1)Main features of YX18-912 Corrugated Panel Roll Forming Machine
The advantages of YX18-912 Corrugated Panel Roll Forming Machine are as follows:
1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.
2.Easy operation,low maintenance cost

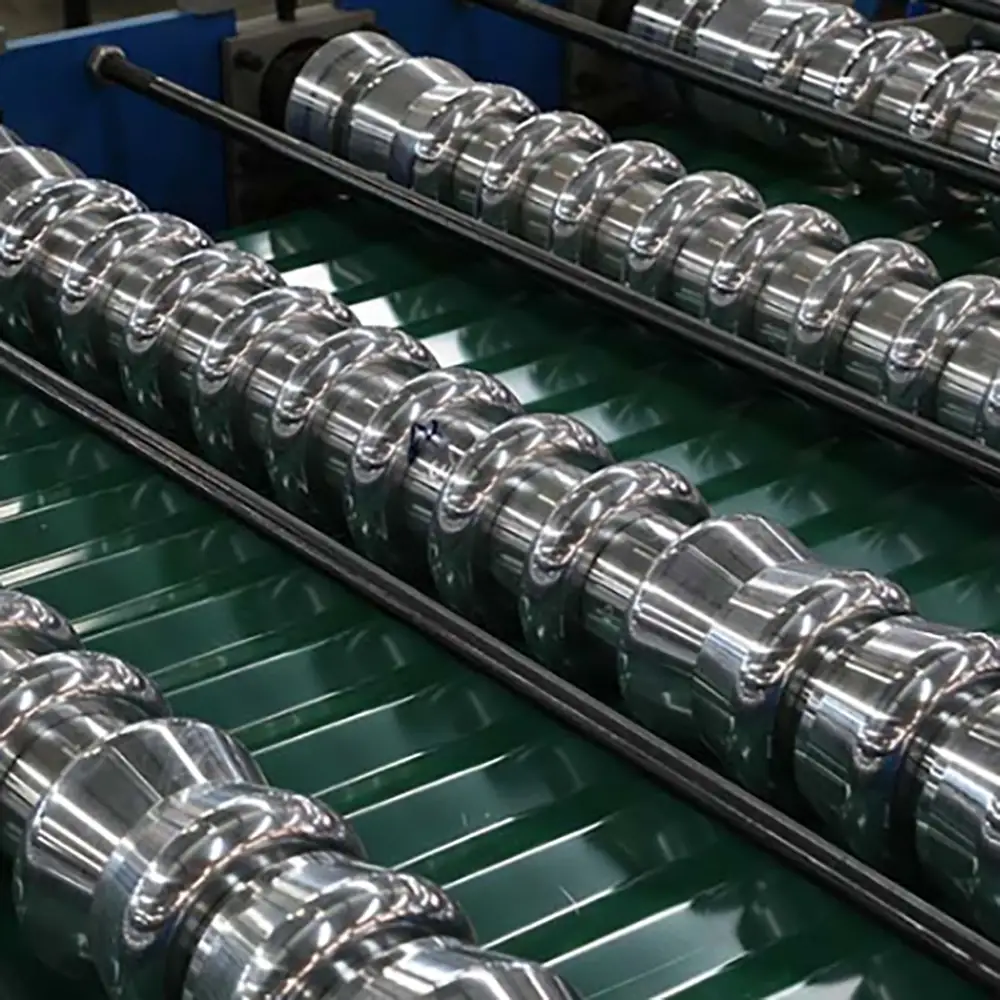

2)YX18-912 Corrugated Panel Roll Forming Machine feeding guide3)YX18-912 Corrugated Panel Roll Forming Machine rollers
Brand:BMS   Original:China
Rollers manufactured from high quality 45# steel,percision machine,CNC lathes.Heat Treatment
With black treatment or Hard-Chrome Coating for options
With feeding material guide,body frame made from 300#H type steel by welding.

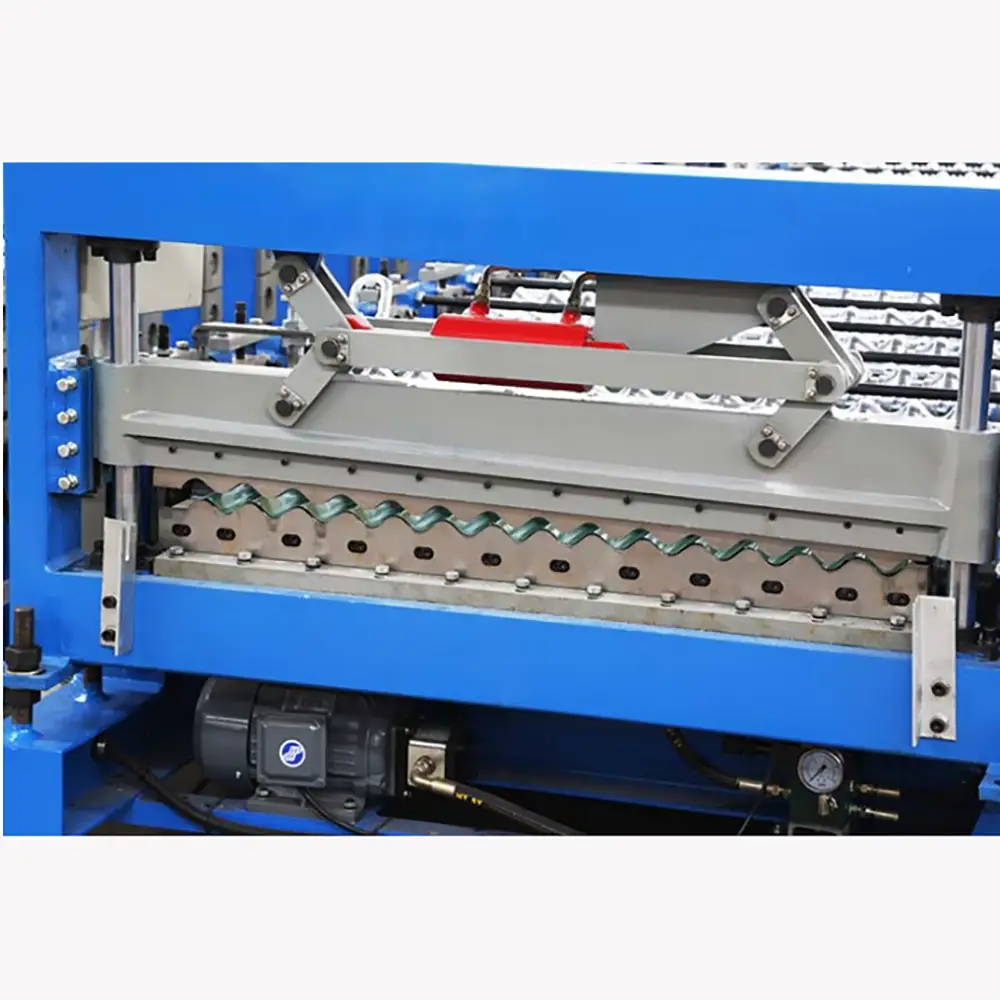

4) YX18-912 Corrugated Panel Roll Forming Machine post cutter
Cutter frame made from high quality 20mm steel plate by welding
Post to cut,stop to cutting,use the same hydraulic motor drive
Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa Cutting tool material :Cr12,Heat treatment

The Corrugated Roof Panel Roll Forming Machine is an industrial metal forming system designed to produce corrugated roofing panels with consistent profiles, dimensions, and surface quality. It continuously forms metal coils into finished corrugated roof sheets through a series of precision roll forming stations. This makes the machine suitable for roofing sheet manufacturers, steel building suppliers, construction material factories, and metal fabrication businesses.

Corrugated metal roof panels are widely used for residential, commercial, agricultural, industrial, warehouse, workshop, and other building applications. Compared with traditional sheet forming methods, continuous roll forming provides an efficient production process with repeatable panel geometry and stable output.

Continuous Corrugated Panel Forming

The machine uses multiple forming rollers to gradually shape flat metal coil into the required corrugated roofing profile. Instead of forming the entire profile in a single operation, the material passes through successive stations that progressively create the finished shape.

This controlled forming process helps maintain profile consistency and reduces unnecessary deformation of the sheet. It is suitable for continuous production where manufacturers need a reliable supply of corrugated roof panels for different construction projects.

Designed For Metal Roofing Production

The Corrugated Roof Panel Roll Forming Machine can process compatible metal coils such as galvanized steel, pre-painted steel, and other suitable sheet materials. Material selection depends on the required roof panel application, thickness, strength, coating, and finished appearance.

By configuring the machine according to the required roofing profile, manufacturers can produce panels with consistent corrugation and dimensions for installation on different building structures.

Precision Roll Forming System

The forming section consists of carefully arranged roller stations that guide and shape the sheet progressively. Proper roller design is important for maintaining panel width, corrugation shape, and overall forming accuracy.

A stable roll forming system can help reduce dimensional variation during production and improve the consistency of finished roofing panels. This is particularly useful for manufacturers supplying standardized construction materials to distributors and building contractors.

Automatic Coil Feeding

The production line can be equipped with a suitable decoiler and feeding system for continuous coil processing. The feeding section guides the raw material into the forming machine while helping maintain stable material alignment.

Automatic or semi-automatic feeding reduces repetitive manual handling and supports a more efficient production workflow. The complete configuration can be selected according to production requirements and factory conditions.

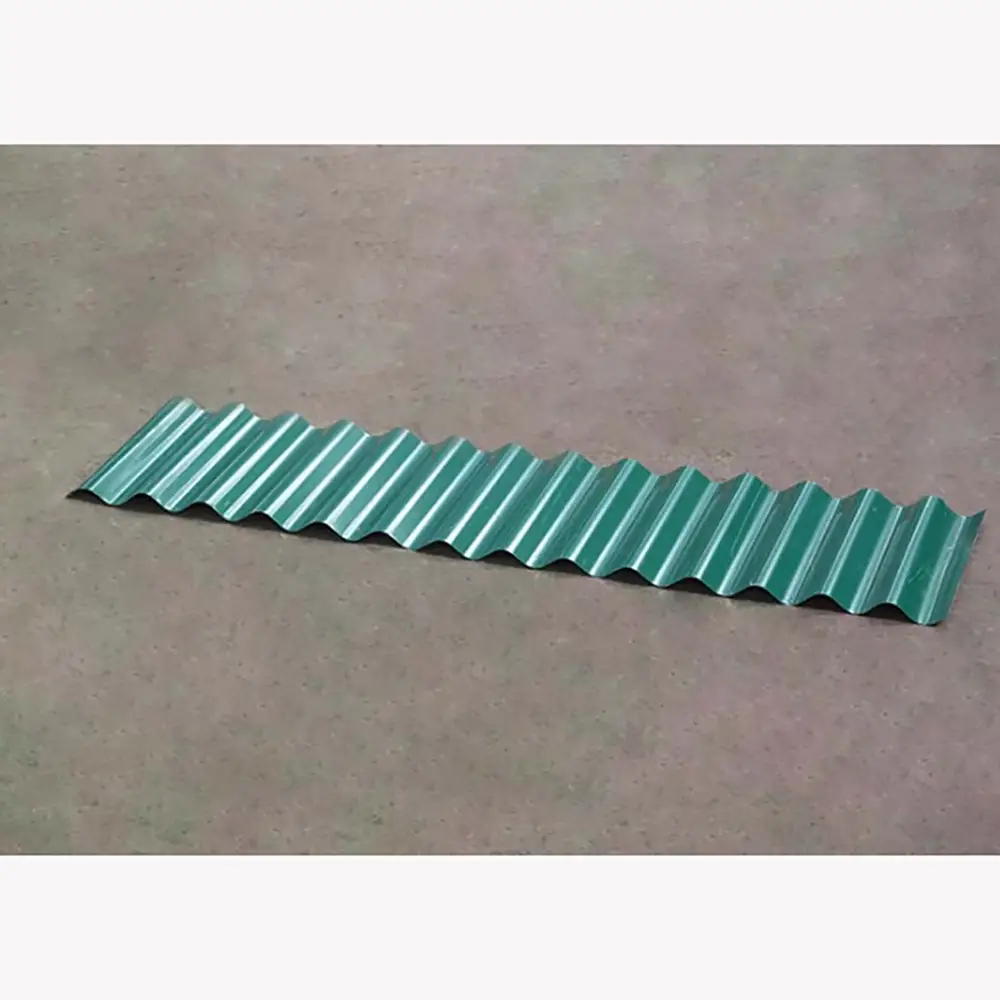

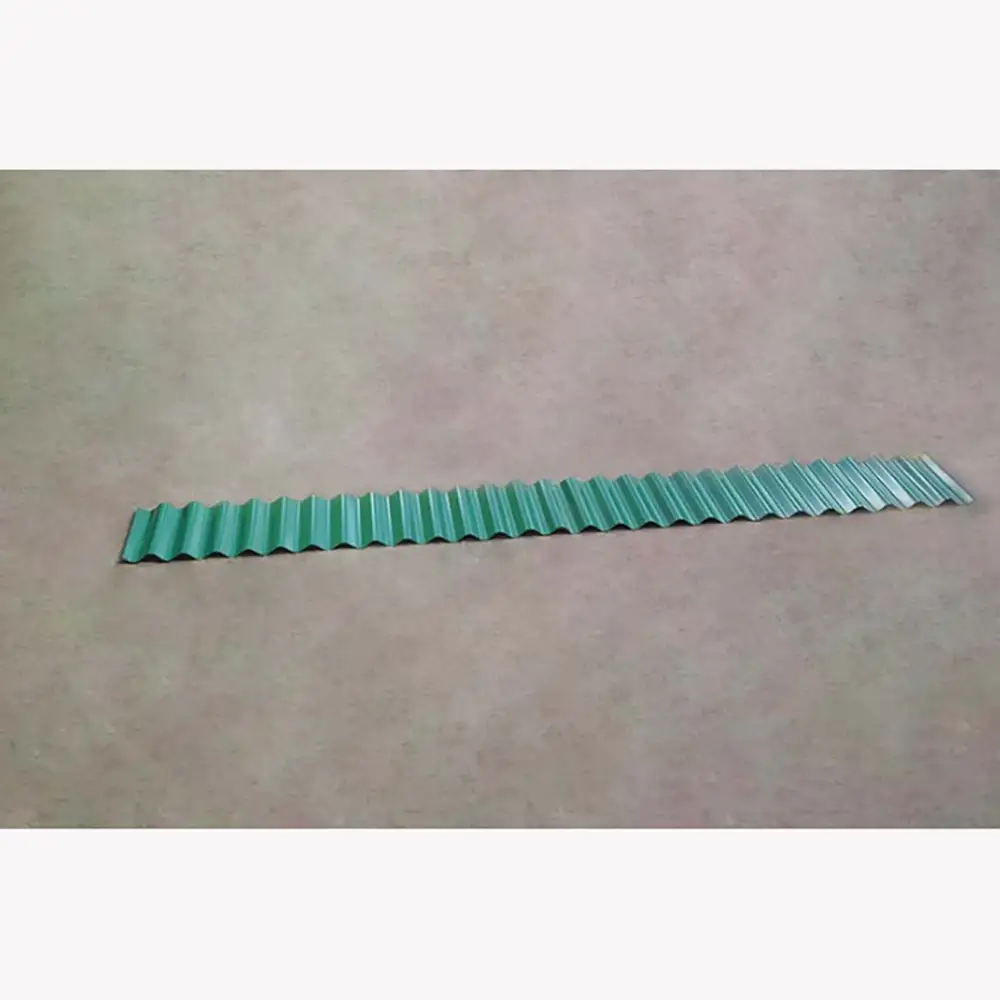

Corrugated Roof Panel Profiles

Different construction projects require different corrugated roofing profiles. The roll forming machine can be designed around the customer's required panel dimensions, corrugation shape, effective width, and other specifications.

Customized roller tooling allows manufacturers to develop equipment for specific corrugated roof panel designs. Customers can provide technical drawings, samples, profile dimensions, or product specifications for machine configuration.

Cutting System

A cutting unit can be integrated into the production line to cut continuously formed roofing panels to the required length. The cutting process is coordinated with the forming operation to support efficient production of panels with consistent dimensions.

The cutting configuration can be selected according to the material, panel profile, production requirements, and desired automation level.

PLC Control And Easy Operation

A PLC-based control system can be used to coordinate feeding, forming, measuring, and cutting operations. Operators can set production parameters through the control interface and monitor the machine during operation.

Automated control helps simplify repetitive production tasks and allows manufacturers to maintain more consistent panel lengths and production procedures.

Strong Machine Structure

A roll forming machine must maintain stable alignment during continuous metal forming. A robust machine frame and properly supported roller stations help provide stable operation during production.

The machine structure can be configured according to the required panel profile, material thickness, production speed, and factory workflow. Proper machine installation and maintenance are also important for long-term operating performance.

High Production Efficiency

Continuous roll forming is well suited to roofing material production because metal coils can be processed through multiple forming stations without requiring individual forming operations for every panel.

For manufacturers producing large quantities of corrugated roof panels, this production method can help reduce repetitive labor and improve workflow efficiency while maintaining consistent product geometry.

Applications In Construction

Corrugated metal roofing panels are commonly used for warehouses, factories, workshops, agricultural buildings, garages, commercial buildings, temporary structures, and other construction projects.

The finished panels can be used as roofing materials and, depending on the profile and engineering requirements, may also be used for wall cladding and other building envelope applications.

Customized Roofing Sheet Equipment

Different markets may have different requirements for roof panel width, corrugation profile, material thickness, cutting length, and production capacity. We can provide customized roll forming solutions based on these requirements.

A complete production line may include a decoiler, leveling or guiding components, roll forming unit, cutting system, PLC control cabinet, run-out table, and other optional equipment depending on the project.

B2B OEM And Factory Production

The Corrugated Roof Panel Roll Forming Machine is suitable for roofing sheet manufacturers, steel structure companies, construction material suppliers, equipment distributors, and investors establishing new metal roofing production lines.

For OEM and customized projects, customers can provide profile drawings and technical requirements so the machine configuration can be matched to the intended product.

Key Features
Corrugated Roof Panel Production
Continuous Roll Forming Process
Precision Forming Rollers
Stable Sheet Alignment
Automatic Coil Feeding
Integrated Cutting System
PLC Control System
Customized Roller Tooling
Adjustable Panel Length
Consistent Corrugation Profile
Heavy-Duty Machine Structure
Factory Production Solution
Suitable For OEM Projects
Main Applications
Corrugated Metal Roofing
Residential Roofing Panels
Warehouse Roof Panels
Industrial Building Roofing
Agricultural Building Roofing
Workshop Roofing
Garage Roof Panels
Commercial Buildings
Steel Structure Buildings
Metal Wall Cladding
Construction Material Production
Roofing Sheet Manufacturing
FAQs
1. What Is A Corrugated Roof Panel Roll Forming Machine?

It is a continuous metal forming machine used to transform metal coils into corrugated roofing panels through a series of forming rollers.

2. What Materials Can Be Used?

Common materials include galvanized steel and pre-painted steel, as well as other compatible metal coils. The suitable material depends on the machine configuration and roofing application.

3. Can The Corrugated Roof Profile Be Customized?

Yes. The roller tooling can be designed according to the customer's required corrugation shape, panel width, dimensions, and technical drawings.

4. Can The Machine Cut Panels To Different Lengths?

Yes. A suitable cutting system can be integrated into the production line to produce roofing panels according to the required length.

5. Is The Machine Fully Automatic?

The automation level depends on the selected configuration. A production line can integrate automatic feeding, roll forming, measuring, cutting, and PLC control functions.

6. Can I Use Galvanized Steel Coil?

Yes. Galvanized steel is commonly used for metal roofing production. The actual coil thickness, width, and material specifications should be confirmed before machine configuration.

7. Can The Machine Produce Different Roofing Profiles?

Different roller tooling is generally required for different profiles. Customized forming systems can be developed according to the required roofing panel design.

8. What Equipment Is Included In A Complete Production Line?

A typical line may include a decoiler, feeding system, roll forming machine, cutting unit, PLC control cabinet, and run-out table. Additional equipment can be selected according to the production project.

9. Is This Machine Suitable For Factory Production?

Yes. Continuous roll forming is designed for repetitive metal roofing production and is suitable for construction material manufacturers and roofing sheet factories.

10. What Information Is Needed For A Machine Quotation?

Useful information includes the roofing profile drawing, material type, coil thickness, coil width, finished panel width, panel length, desired production requirements, and automation preferences.

Why Choose Us
Professional Roll Forming Equipment

We provide industrial roll forming solutions for roofing sheets, wall panels, metal profiles, and other construction materials. Our equipment is designed around practical factory production requirements.

Customized Profile Tooling

Different corrugated roofing profiles require different forming rollers. We can develop customized roller tooling based on drawings, samples, and technical specifications.

Complete Production Line Solutions

A roofing panel production line can be configured with decoilers, feeding systems, forming units, cutting systems, PLC controls, and run-out tables according to the customer's production workflow.

Factory-Direct B2B Supply

We support construction material manufacturers, roofing suppliers, distributors, equipment dealers, and industrial buyers with direct machine supply and technical communication.

Application-Based Technical Support

Material type, thickness, profile design, panel dimensions, and production requirements are considered when configuring the machine, helping customers select an appropriate roll forming solution.

Export-Oriented Service

We support international customers with machine configuration, technical documentation, production coordination, installation guidance, spare parts support, and export-oriented B2B service.
