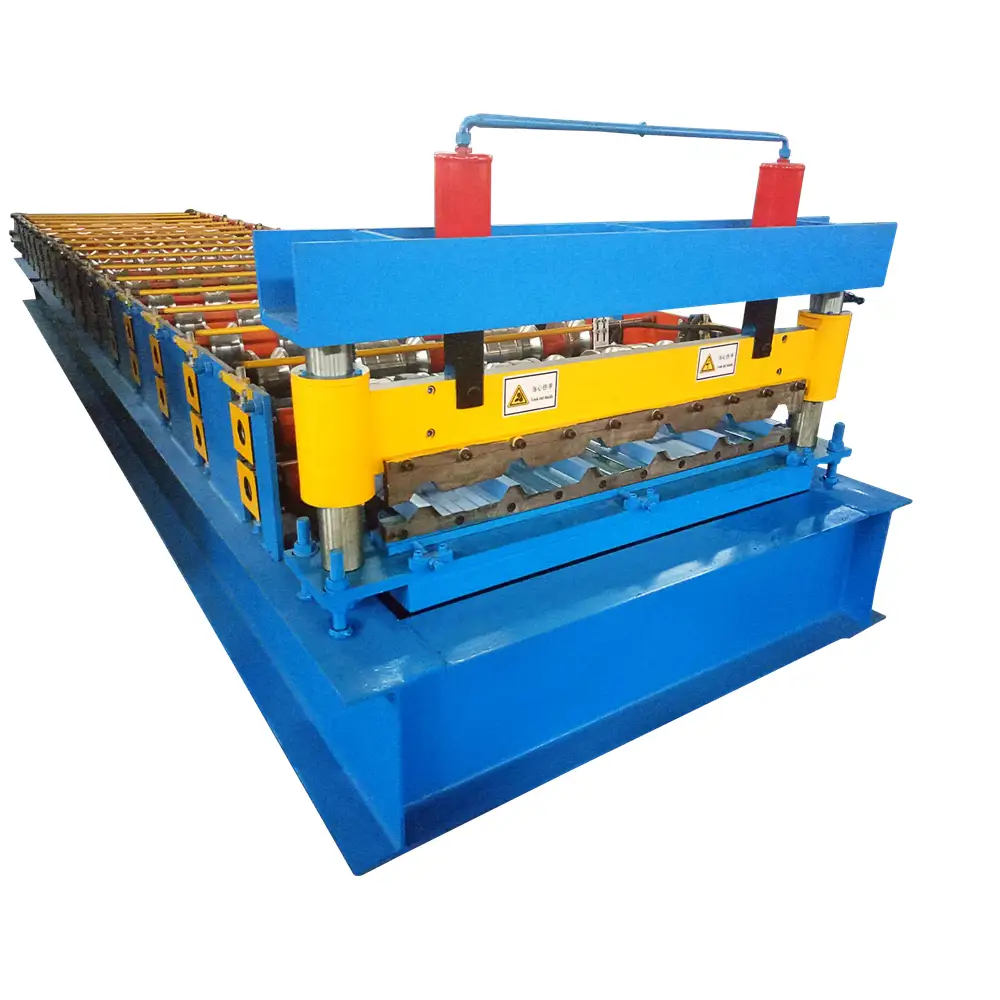

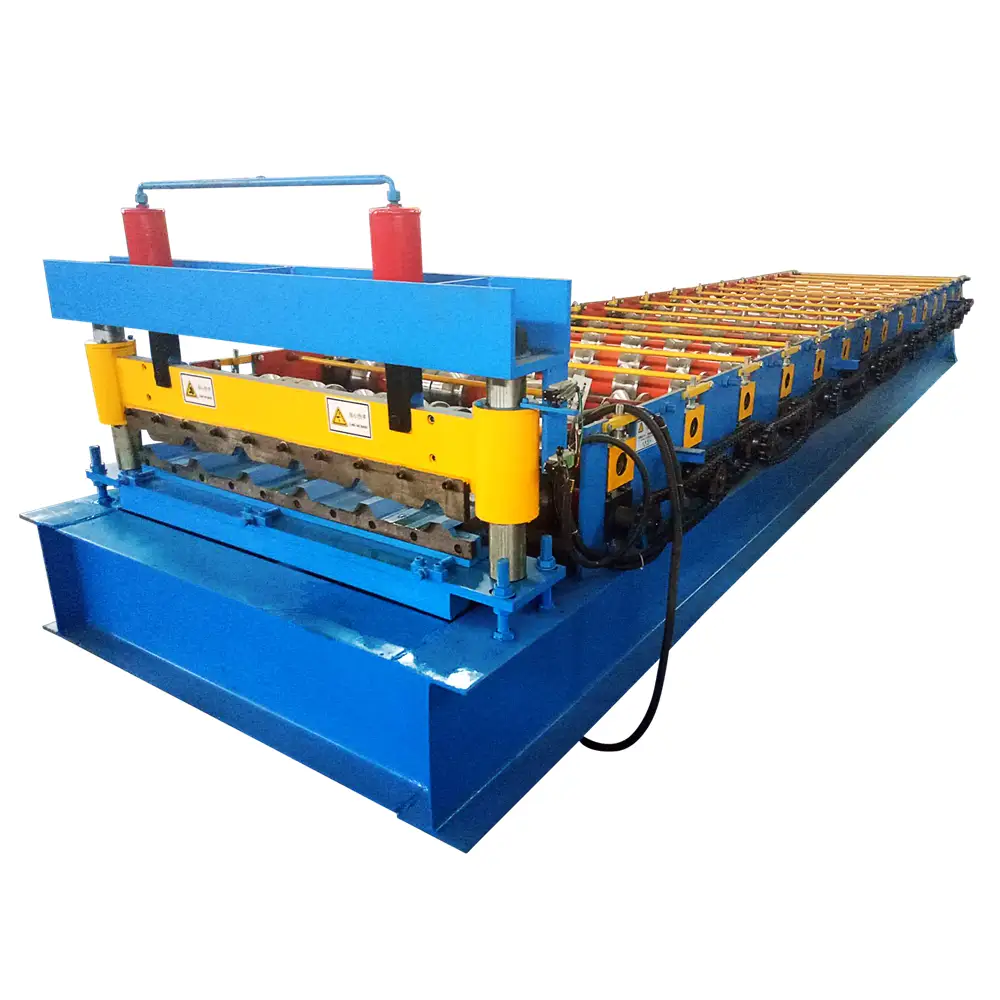

Automatic Trapezoid Metal Roll Forming Machine

Hot Sale Single Layer Roll Forming Machine Ag Panel Max Rib Roof Tile Making Machine Metal Roofing Machine is a machine to produce building material of metal roof.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

The Automatic Trapezoid Metal Roll Forming Machine is a professional roofing sheet production solution designed for continuous manufacturing of trapezoid profile metal panels. Featuring advanced cold roll forming technology and an automatic control system,this machine provides high production efficiency,excellent forming accuracy,and stable performance for construction and metal fabrication industries.

The machine is specially developed for producing trapezoidal roofing sheets,widely used in industrial buildings,commercial structures,warehouses,workshops,and residential construction projects. It can process galvanized steel,pre-painted steel,aluminum sheets,and other metal coils into strong and durable roofing panels with consistent profiles.

Compared with traditional sheet forming methods,the automatic trapezoid roof panel roll forming machine offers faster production speed,lower labor requirements,and better product consistency. The fully automatic operation system improves manufacturing efficiency and ensures every finished panel meets precise dimensional requirements.

roduct name			trapezoidal ibr roofing tile roll making machine
NO.	Items		Parameters	Remark
1	Suitable Material	Type	GI/GL
		Width	1000/1200/1250mm	Custom
		Thickness	0.30—0.80mm
2	Product Specifications	Length	Any length	Programmed
		Length Tolerance	±2mm/6m
3	Working Speed	10-25 m/min		Standard machine
4	Control System	Mitsubishi/Siemens PLC& transducer		Custom
5	Total Power	About 20KW
6	Total Weight	About 8T

Advanced Roll Forming Technology

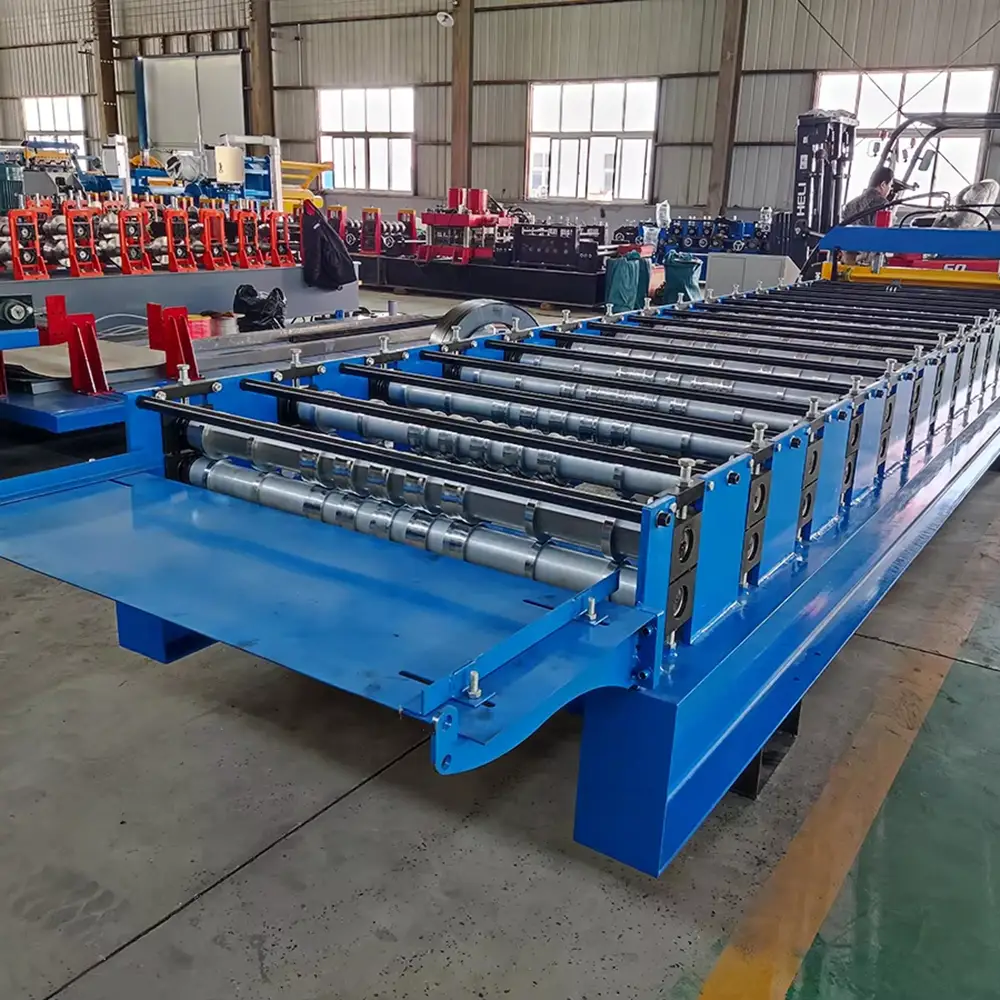

The Automatic Trapezoid Metal Roll Forming Machine adopts multi-stage roller forming technology to gradually shape flat metal coils into trapezoid roofing profiles.

Main processing functions:

Metal coil feeding
Sheet leveling
Continuous roll forming
Automatic cutting
Panel output

Roll forming advantages:

High forming accuracy
Smooth panel surface
Continuous production
Low material waste
Stable profile quality

The carefully designed forming rollers ensure uniform pressure distribution and prevent surface damage during production.

Automatic Control System

The machine is equipped with an intelligent PLC control system for convenient operation and efficient production management.

Main features:

PLC control
Touch screen operation
Automatic length setting
Automatic cutting control
Production parameter storage

Benefits:

Easy operation
Reduced labor cost
Improved production efficiency
Accurate panel dimensions
Stable production performance

Operators can easily adjust production parameters according to different roofing panel specifications.

High Efficiency Trapezoid Roofing Panel Production

The Automatic Trapezoid Metal Roll Forming Machine is designed for high-volume roofing sheet manufacturing.

Fast Production Speed

Continuous coil feeding and automatic forming improve production output.

Precise Panel Dimensions

Automatic control ensures accurate length and profile consistency.

Excellent Surface Quality

Professional rollers maintain smooth and attractive metal sheet surfaces.

Reduced Material Waste

Optimized forming technology improves material utilization.

Long Service Life

Heavy-duty machine structure ensures reliable factory operation.

Suitable Materials

The trapezoid metal roll forming machine can process various metal coils:

Galvanized Steel Coil
Prepainted Galvanized Steel Coil
Galvalume Steel Coil
Aluminum Coil
Mild Steel Coil

Typical applications:

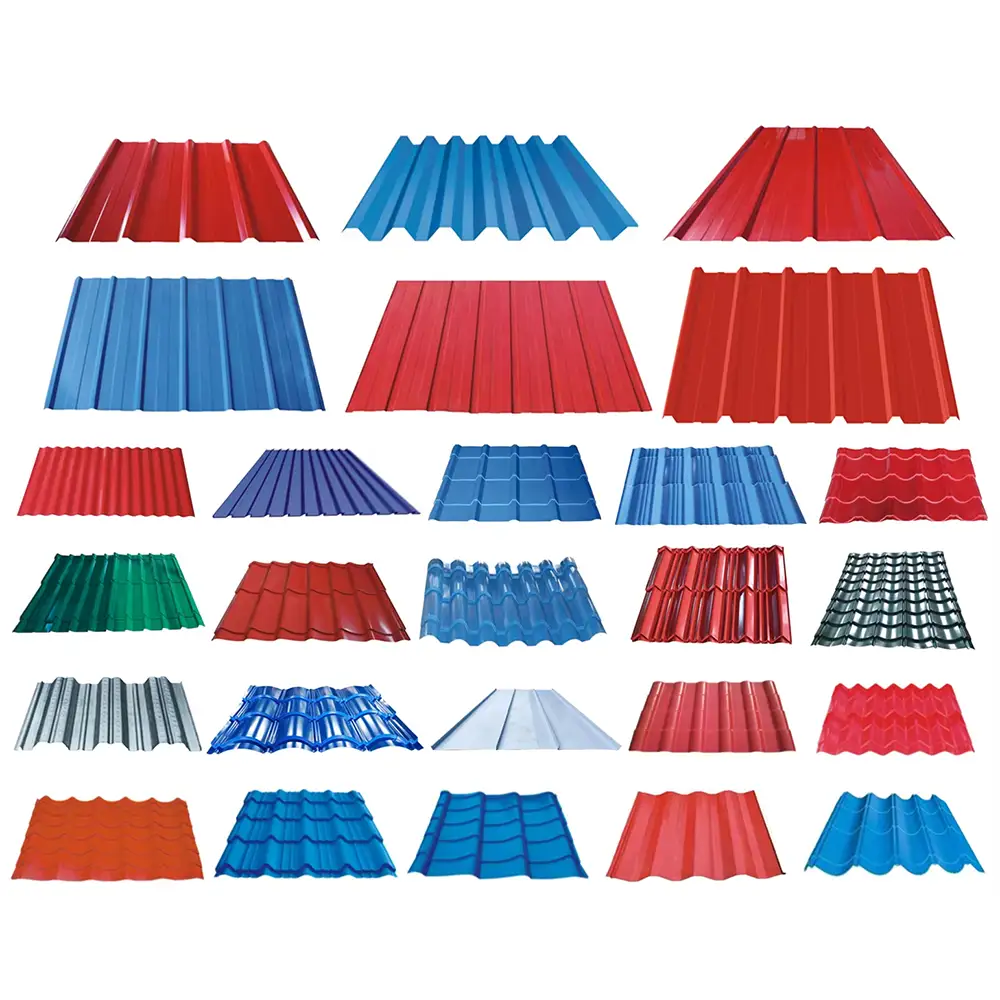

Roofing panels
Wall cladding panels
Industrial building sheets
Commercial construction panels
Metal enclosure systems
Wide Application Industries
Construction Industry

Applications:

Factory buildings
Warehouses
Commercial buildings
Residential roofing
Steel Structure Industry

Used for:

Roof panels
Wall panels
Building envelope systems
Metal Fabrication Industry

Applications:

Customized roofing products
Sheet metal components
Construction materials
Prefabricated Building Industry

Used for:

Modular buildings
Temporary structures
Portable buildings
Advantages Compared With Traditional Sheet Processing
Fully Automatic Production

Reduces manual operation and improves manufacturing efficiency.

High Profile Accuracy

Precision rollers ensure consistent trapezoid panel dimensions.

Better Production Capacity

Continuous forming supports large-volume orders.

Lower Operating Cost

Reduced labor requirements improve production economics.

Flexible Customization

Different panel shapes,thicknesses,and specifications can be customized.

Key Features Of Automatic Trapezoid Metal Roll Forming Machine
1. Automatic Coil Feeding System

Ensures continuous and stable material supply.

2. Precision Roll Forming Unit

Produces accurate trapezoid metal profiles.

3. PLC Automatic Control

Provides intelligent production management.

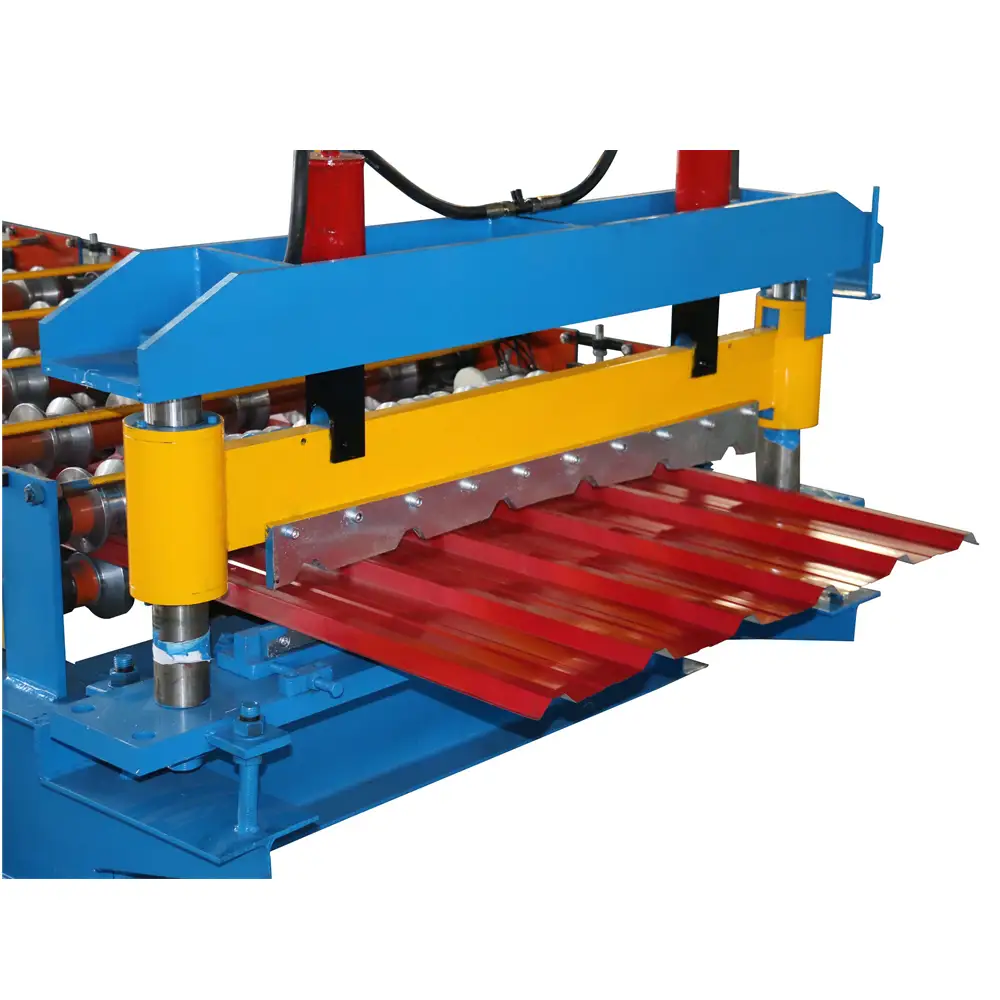

4. Hydraulic Cutting System

Ensures clean and accurate panel cutting.

5. Heavy-Duty Machine Structure

Suitable for long-term industrial operation.

6. Customized Production Solutions

Profile design,roller configuration,and machine specifications can be customized.

Why Choose Our Automatic Trapezoid Metal Roll Forming Machine?
Professional Roll Forming Machine Manufacturer

We specialize in manufacturing metal roll forming equipment and complete roofing sheet production lines for global customers.

Advanced Manufacturing Technology

Precision machining and professional forming technology ensure reliable machine performance.

High Production Efficiency

Automatic operation improves output and reduces production costs.

Customized Solutions

We provide customized solutions including panel profile design,forming stations,cutting systems,and automation options.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete After-Sales Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is an Automatic Trapezoid Metal Roll Forming Machine used for?

It is used for producing trapezoid roofing sheets and wall panels from metal coils.

Q2: What materials can the machine process?

It can process galvanized steel,pre-painted steel,galvalume steel,and aluminum coils.

Q3: What are the advantages of roll forming technology?

Roll forming provides continuous production,high accuracy,and excellent panel consistency.

Q4: Is the machine fully automatic?

Yes. The machine can include automatic feeding,forming,and cutting systems controlled by PLC.

Q5: What industries use trapezoid roofing panels?

They are widely used in industrial buildings,warehouses,commercial construction,and prefabricated buildings.

Q6: Can the machine produce different panel profiles?

Yes. Rollers and machine configurations can be customized for different trapezoid profiles.

Q7: Can the production line be customized?

Yes. Machine speed,material thickness,profile design,and automation level can be customized.

Prev：Sorry, no information

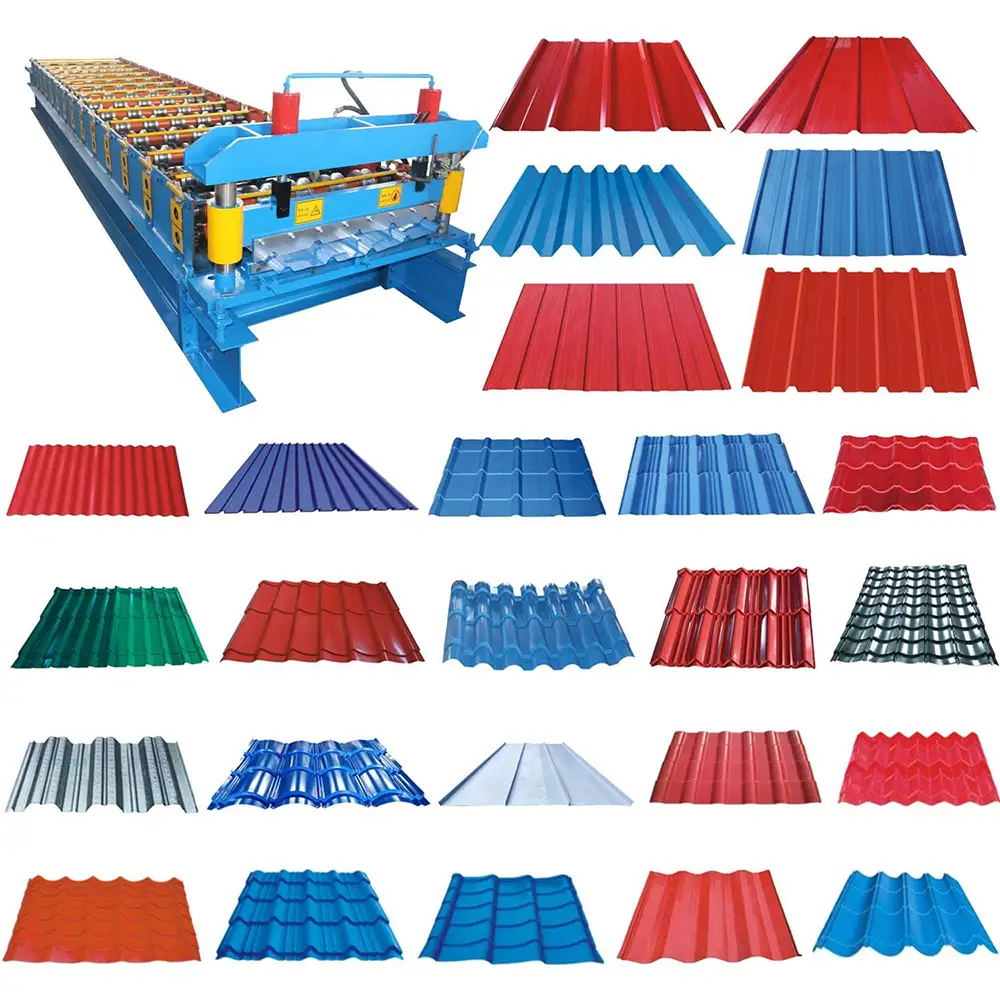

Next：Zinc Tile Roofing Sheet Making Machine
