Automatic CNC 15 ton double line 3m feeding cutting Tube Hole Pipe Punching Machine Technical Parameters

Automatic CNC 15 Ton Double Line 3m Feeding Cutting Tube Hole Punching Machine is designed for automatic feeding,cutting,and punching of steel tubes and pipes. High precision CNC control improves production efficiency for metal processing industries..

 The Automatic CNC 15 Ton Double Line 3m Feeding Cutting Tube Hole Punching Machine is an advanced automatic metal tube processing system designed for high-efficiency cutting and punching operations on steel pipes, square tubes, rectangular tubes, and metal profiles. Equipped with CNC intelligent control, automatic feeding, double-line punching technology, and a powerful 15-ton hydraulic punching system, this machine provides an efficient solution for mass production in furniture manufacturing, construction, solar mounting systems, automotive components, and metal fabrication industries.

Traditional pipe punching and cutting processes often require separate machines and manual positioning, resulting in lower production efficiency, higher labor costs, and inconsistent processing accuracy. This CNC tube punching machine integrates automatic feeding, precise positioning, hydraulic punching, and cutting functions into one complete production system, greatly improving manufacturing efficiency and product consistency.

With a 3-meter feeding and processing length, double-line punching capability, and automatic CNC operation, this machine is ideal for factories requiring continuous and accurate production of metal tube components.

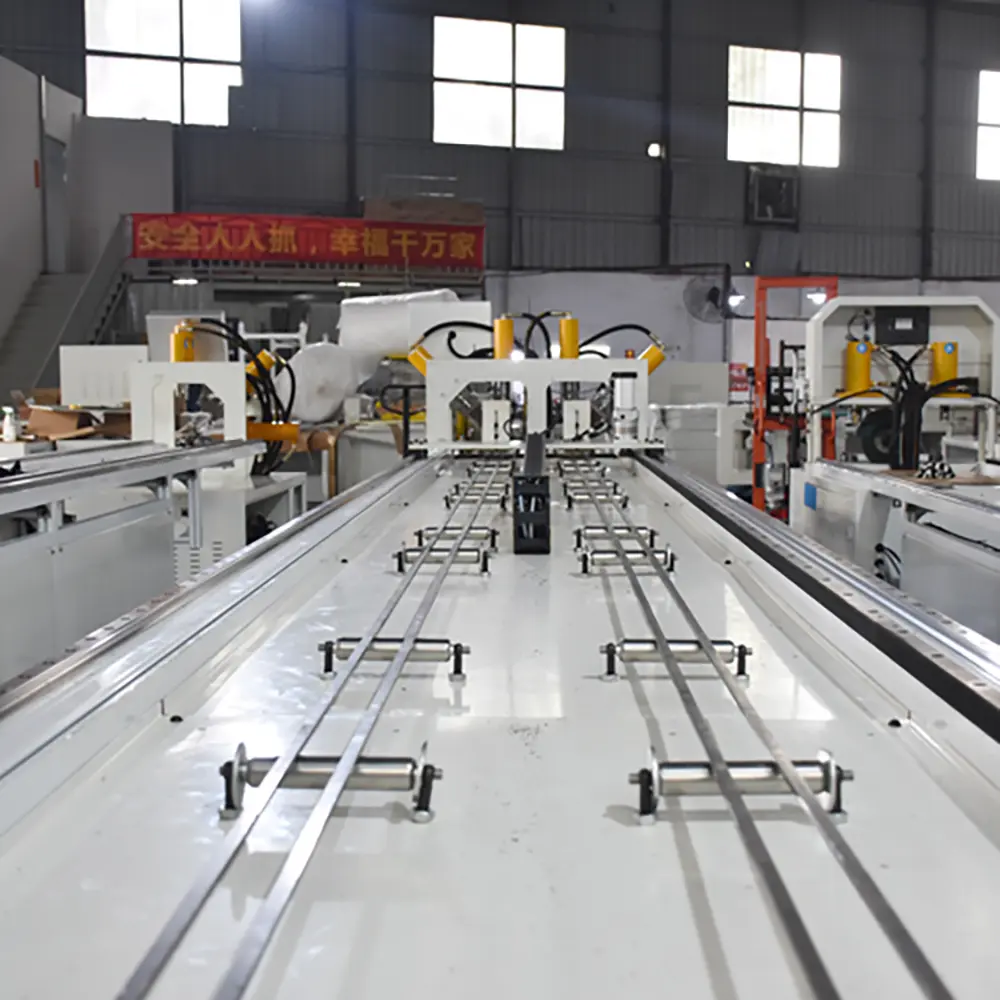

Advanced CNC Automatic Tube Processing System

The Automatic CNC 15 Ton Double Line Tube Hole Punching Machine combines multiple production processes into one intelligent manufacturing solution.

The machine integrates:

Automatic tube feeding
CNC positioning control
Double-line hole punching
Hydraulic punching system
Tube cutting
Finished product discharge

This integrated structure reduces manual handling and improves the overall production workflow.

Main advantages include:

High-speed production
Accurate hole positioning
Reduced labor requirements
Stable processing quality
Improved production efficiency

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.

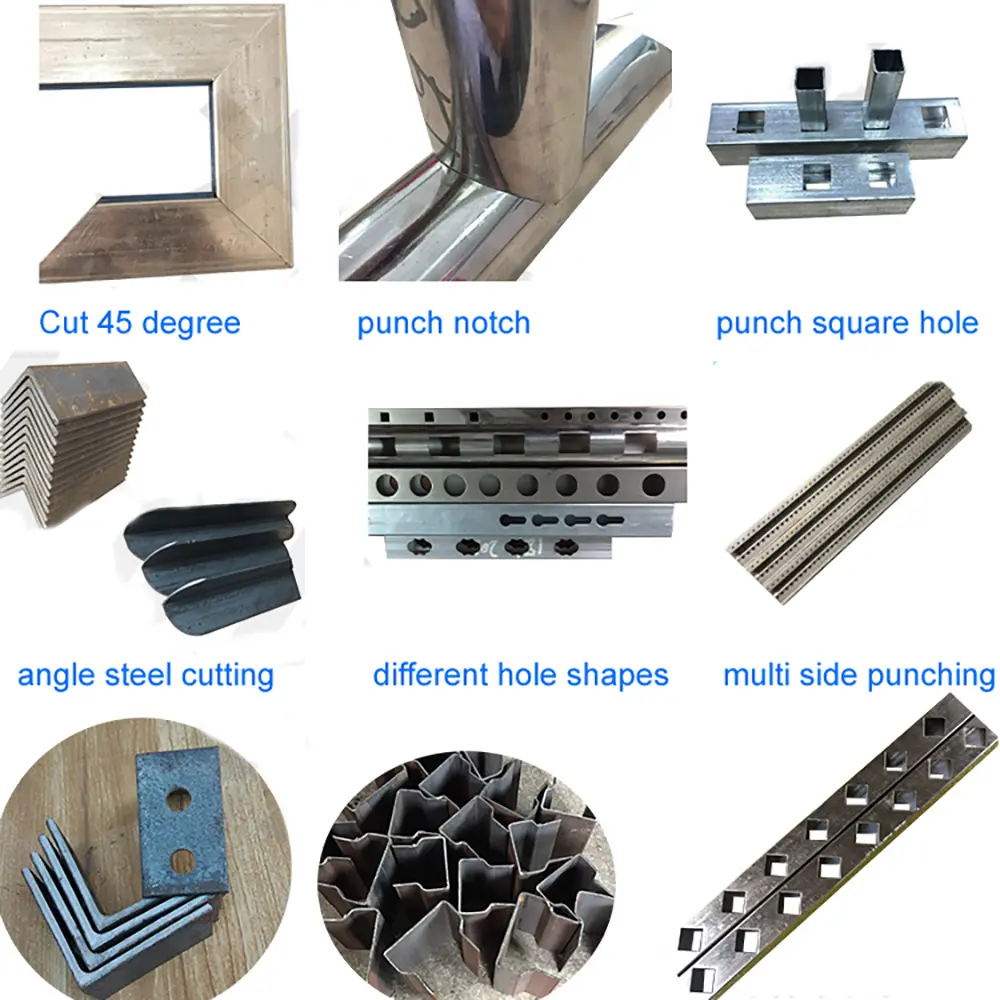

4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need
Model 15TA 15TB 20TA 20TB
Feed length 3000 6000 3000 6000
Nominal force 150kn 250kn
Stroke 120mm 150mm
Max punch Thickness SS 2.4mm,MS:3mm SS 4mm,MS:5mm
Motor power 5.5kw 7kw
Punching capacity(metal thickness) ≤3mm ≤5mm
Fit to material Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape Round, square, rectangle ,oval, angle steel
Tube and hole size Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy 0.01mm
Feed accuracy 0.1mm
Color white , or customized
Feed way Slideway and servo motor
Control way PLC, 10 inch Touch Screen
Clamping way Pneumatic(air compressor is with machine)
programs stored 200 sets, each program store different processing message
Operation language Chinese and English, or customized
Voltage 220V,380V,415V,440v, customized as requirement
Cutting method(option ) Saw blade ,or hydraulic punch cutting


Measure
Machine head 1500x1000x1700mm

Feed frame
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed)
