Articulating Tractor, Articulated Narrow-Track Tractor for Hills Technical Parameters

Articulating Tractor for Sale, Articulated Narrow-Track Tractor for Hills It main used in hill, Garden,fit for higher slope operations, The traction is strong, The articulated Tractor front and rear box hinged.

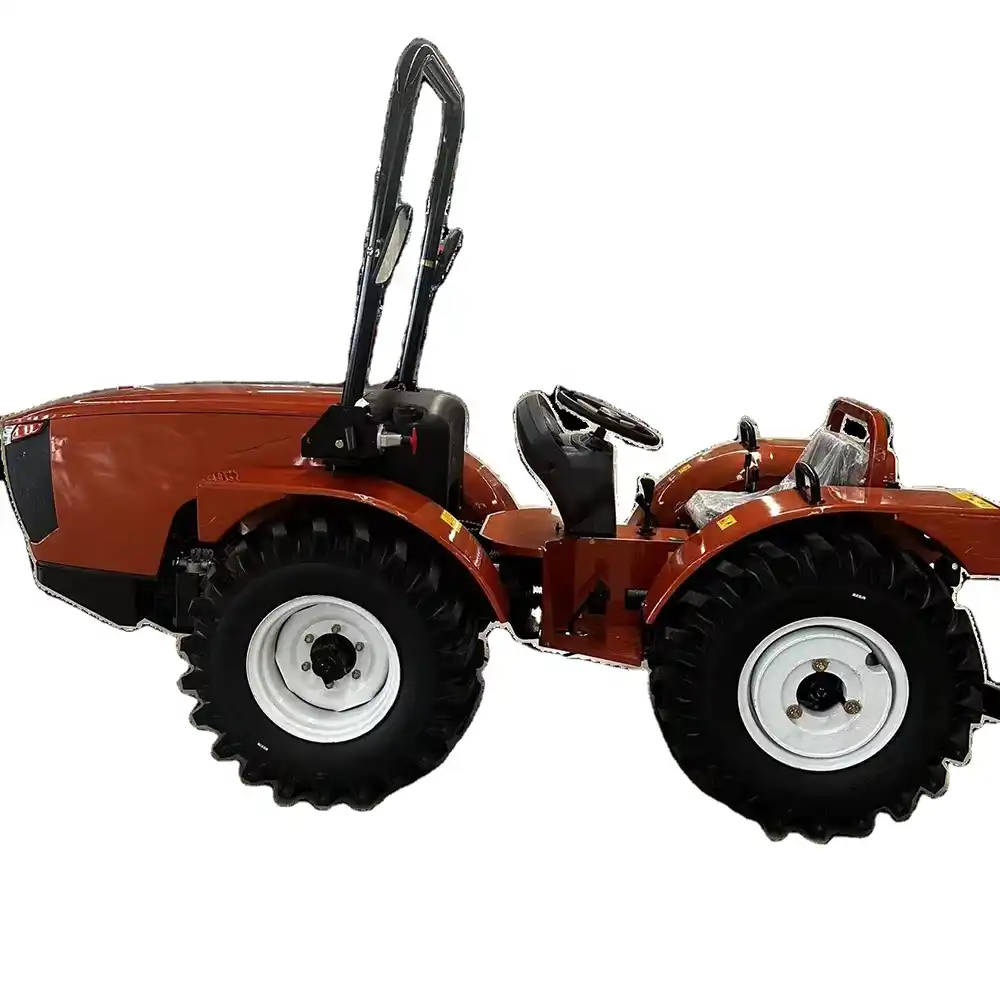

Articulating Tractor, Articulated Narrow-Track Tractor for Hills

It main used in hill, Garden,fit for higher slope operations, The traction is strong,
The articulated Tractor front and rear box hinged, can realize the body torsion, so as to reduce the turning radius, but also to achieve greater climbing ability; The center of gravity of the machine is closer to the front to ensure the stability and safety of the work in the mountains and hills. Compared with traditional tractors, the biggest advantage is that the tractor can handle both climbing and descending hills easily, especially suitable for mountainous and hilly areas.

604 Articulated Tractor
Technical Parameter:
Item Unit Designed value
Machine Model / 604
Type / 4WD
Purpose / General purpose
Overall dimension(L*W*H) mm 3490× 1355×2190(Top ROPS)
Wheelbase mm 1410
Wheel tread(Front wheel/Rear wheel) mm 960-1300/960-1300
Normally used Wheel tread
(Front wheel/Rear wheel)
mm 1020/1020
Min. ground clearance mm 250( Rear axle bottom)
Min. operation weight kg 1780
Max. Ballast(front/rear) kg 0/56
Gear(Forward, backward) / 8/2
Theoretical speed of each gear km/h Forward:1.52, 2.24, 3.53, 4.86, 7.02,
10.36, 16.30, 22.46 Backward:
Connection mode of engine and clutch / Direct connect
Start mode / Electric start
PTO power kW 37.5
Max. traction force kN
Engine Type / Inline, water cooled, four strokes
Mode / 3G25TC-60G31C
Manufacture / CHANGCHAI
Intake mode / Turbocharged inter-cooled
Cylinder No. /
Rated power kW 44.1
Rated speed r/min 2300
Steering
system
Type of steering system / Bending steering
Type of steering gear / Hydrostatic steering gear
Transmissio
n system
Clutch type / Dry, single disc, constant joint
Transmission type / Mechanical plane composition
Gearbox shift mode / The meshing sleeve shifts gears
Tire mode(Front/rear) / 13.2-16(9.5-16)/13.2-16(9.5-16)
Tire Pressure (Front/Rear) kPa 80~120/80~120
Working
device
Hydraulic suspension system type / separated type
Suspension device mode / Rear mounted, three point linkage
Suspension device category / 1 category
Hydraulic oil pump type / Gear pump
Hydraulic output / One group
Full opening pressure of relief valve MPa 18±0.5
  PTO mode / Rear mounted, semi-independent
PTO spline /
PTO spline OD mm Φ35
PTO speed r/min 540/760( 540/1000 or 720optional


Prev:25 HP 4WD Utility Tractor with Cab, EPA Tier 4 Compact Utility Tractor with Front Loader
Next:75 HP Utility Tractor, 754 Cab Tractor with 4 in 1 Front end Loader, Rotary Tiller, Slasher
TAG: Farm Tractor, Agricultural Tractor, Farmland Tractor, Farming Equipment, Agriculture Tractor, Agriculture Machinery, Agricultural Equipment,
Related Category: Farm Tractor, Compact Tractor, Four Wheel Tractor, 4WD Tractor, 60 HP Tractor Series, Agricultural Machinery, Farm Machinery,
Articulating Tractor China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
You May Also Like
Relevant Cases
Articulating Tractor, Articulated Narrow-Track
Articulating Tractor, Articulated Narrow-Track

Articulating Tractor for Sale, Articulated Narrow-Track Tractor for Hills It main used in hill, Garden,fit for higher slope operations, The traction is strong, The articulated Tractor front and rear box hinged...

25 HP 4WD Utility Tractor with Cab, EPA Tier 4
25 HP 4WD Utility Tractor with Cab, EPA Tier 4

25HP EPA Tier 4 Certified Diesel Engine Clean emission, low noise, and fuel-efficient powertrain for USA/Canada market. 4WD Compact Design for Narrow Fields Lightweight and flexible...

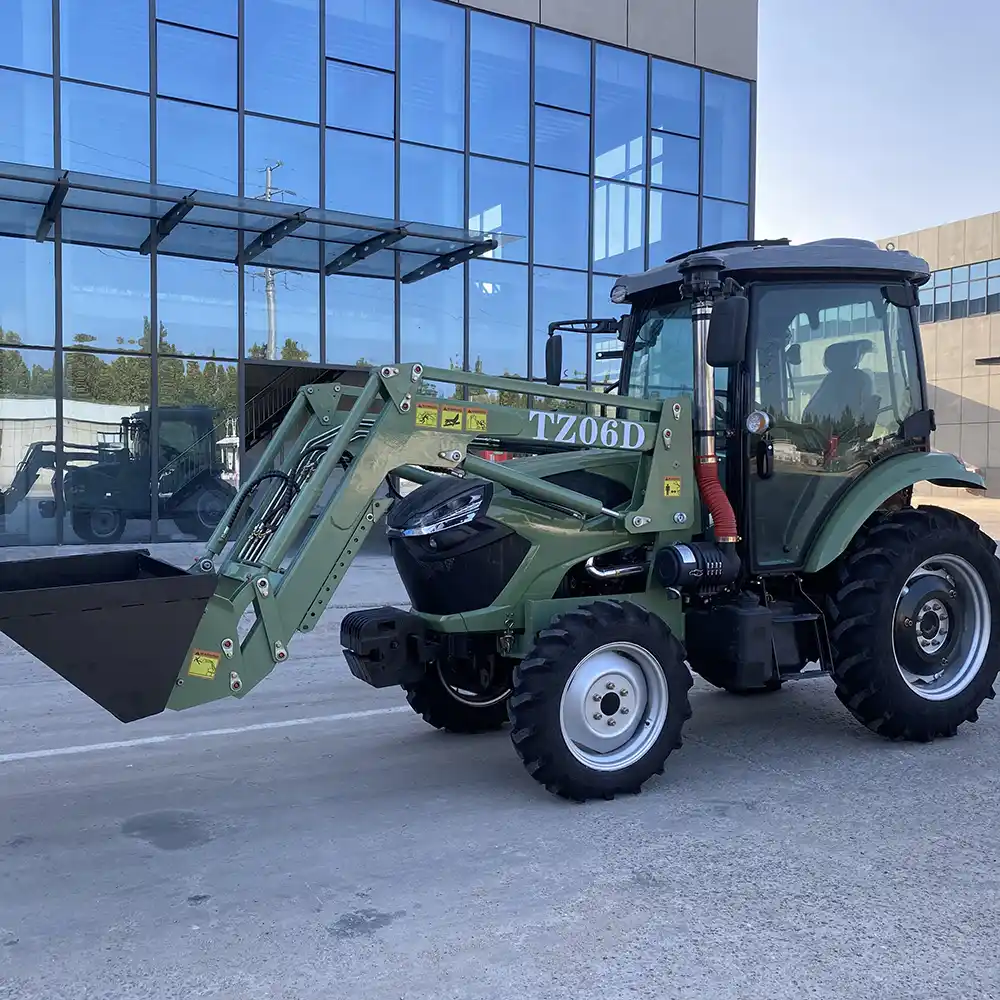

75 HP Utility Tractor, 754 Cab Tractor with 4
