Agriculture Hand Tractor Technical Parameters

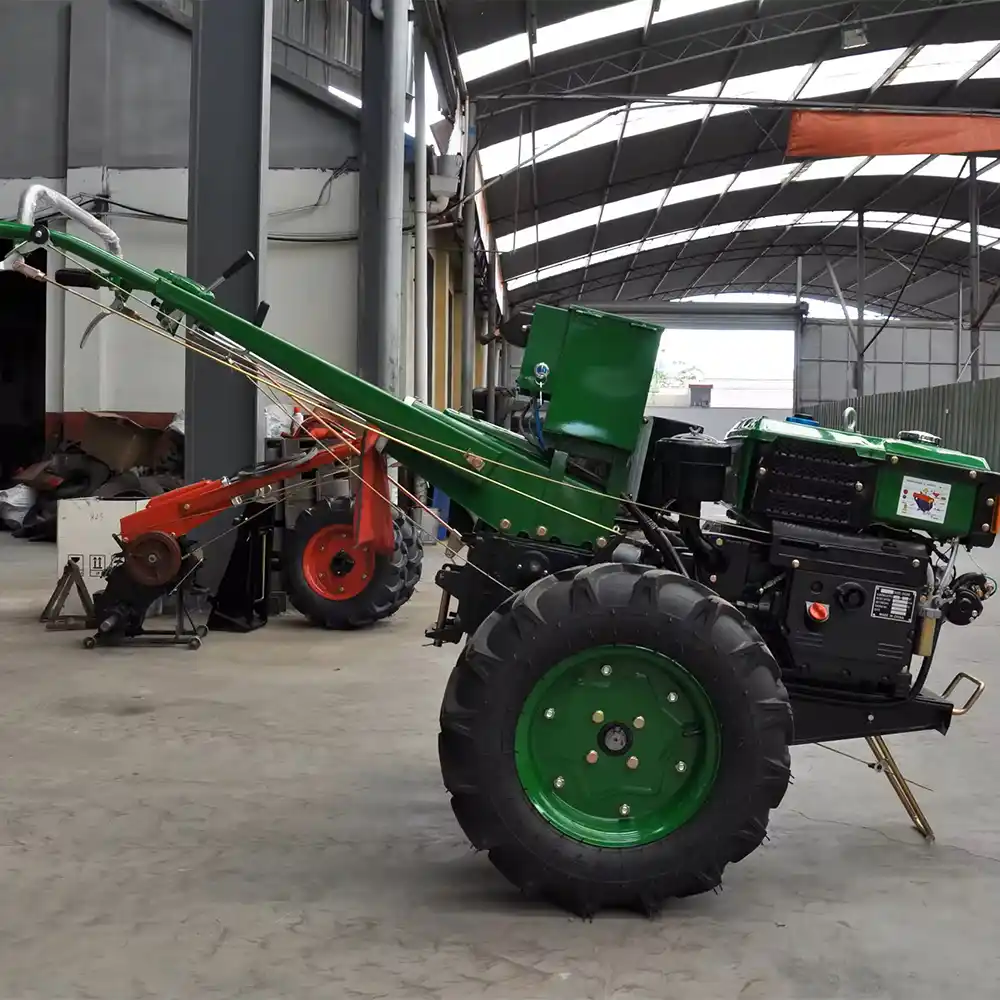

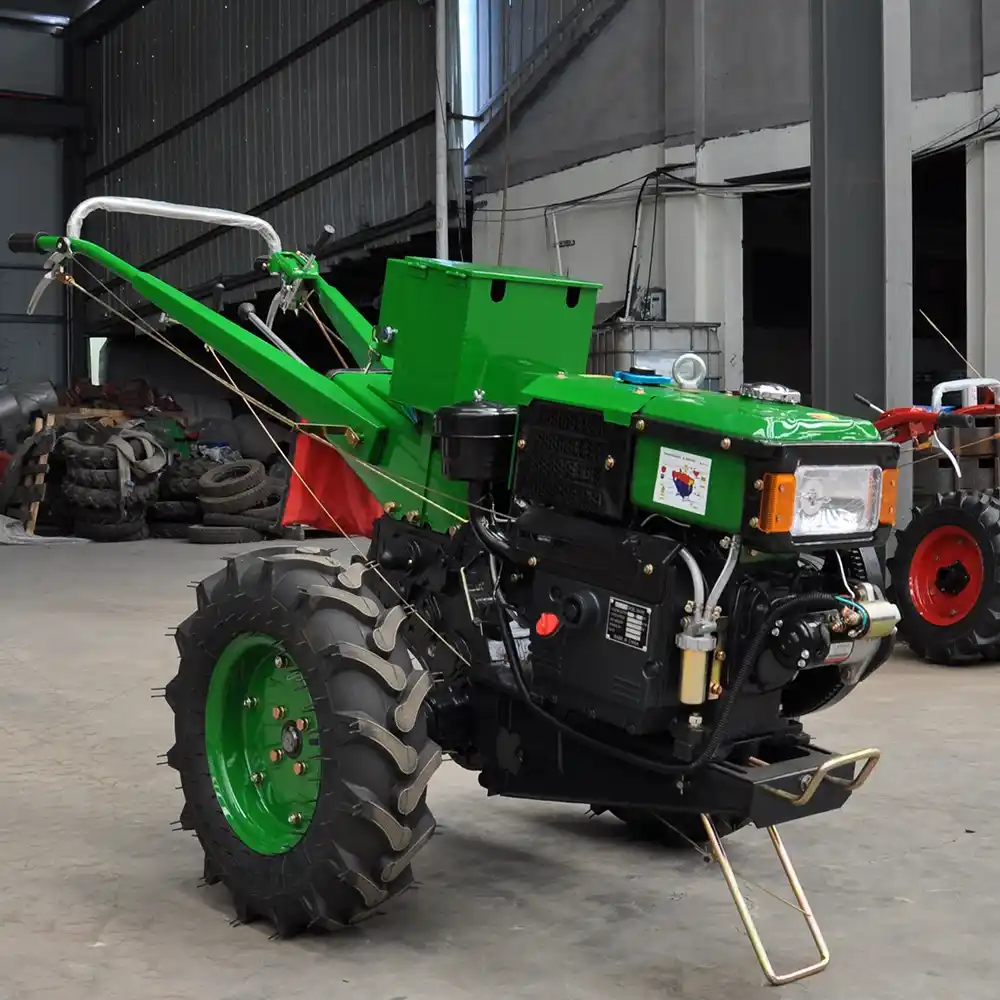

China Hand Tractor Agriculture walking tractor with ZS1105 diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field, like small farmland, vineyards.

China Hand Tractor SX walking tractor with ZS1105 diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field, like small farmland, vineyards, flower garden, greenhouse particularly ideal for mountainous field.

Mode SX-8 SX-10 SX-12 SX-15 SX-18 SX-20
Structure weight 270 290 300 480 480 480
Overall dimensions  (L*W*H) 2170x 845 x 1150 2220x 1250 x 1220
Power 8HP 10HP 12HP 15HP 18HP 20HP
Tire size 6.00-12( w-tire) 6.00-16( w-tire)
Transmission two belt three belt
Drivetrain final drive single-stage spur gear circle column wheel drive
The fuel tank volume (L) 11
13
Engine lubricating oil (L) 1.5-2 2.5-3.2
Gearbox lubricants (L) 3-3.3 3-3.3
The cooling water injection amount (L) 12-13 13.5-15
Clutch style riple-plate,single-action,standard,dry-friction,long engaging friction
Gearbox style main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift. (3 + 1)×2 composition formula circular gear wheel column.
Basic Basic
