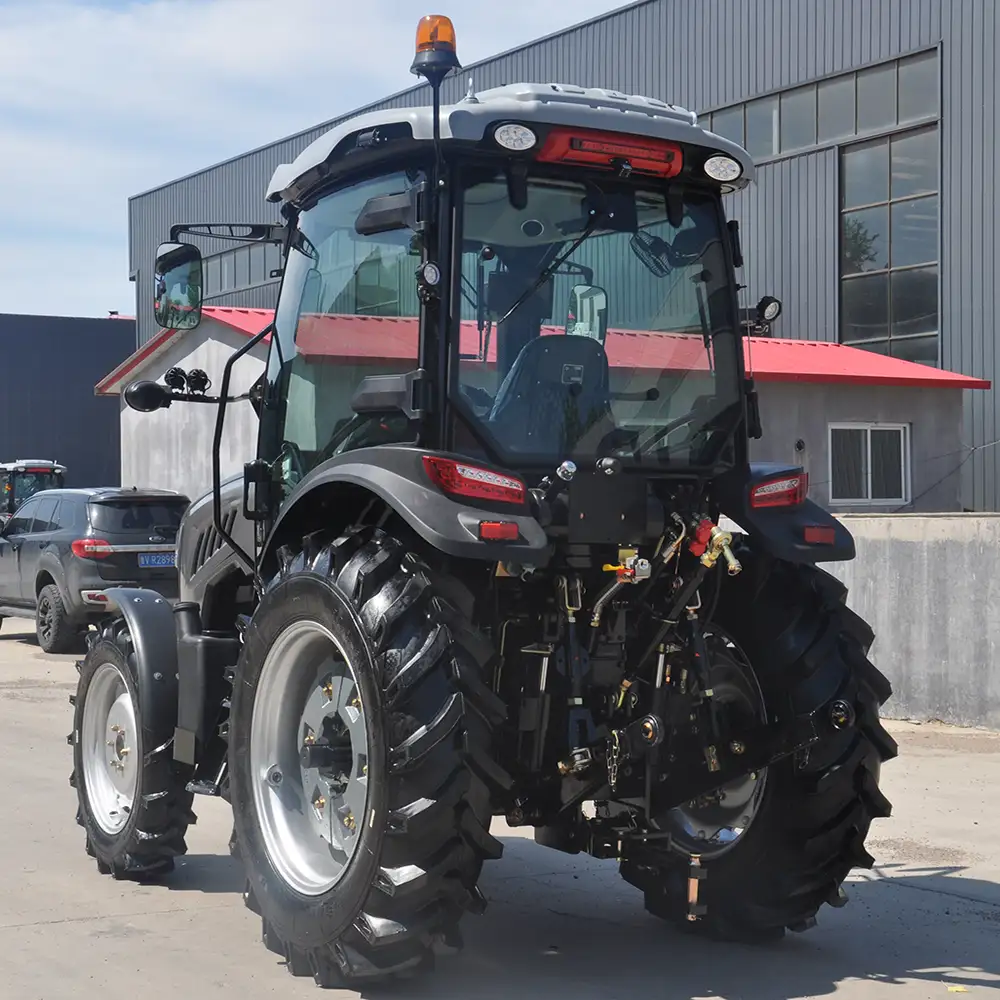

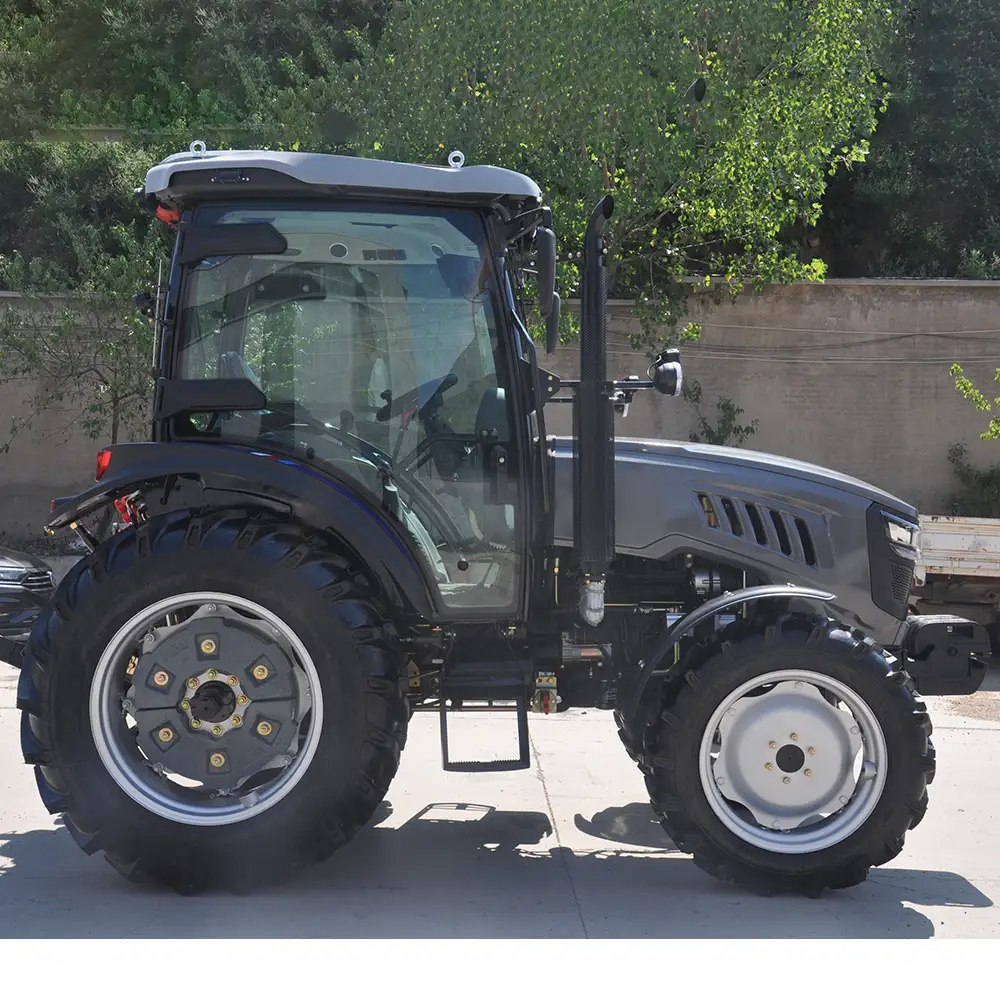

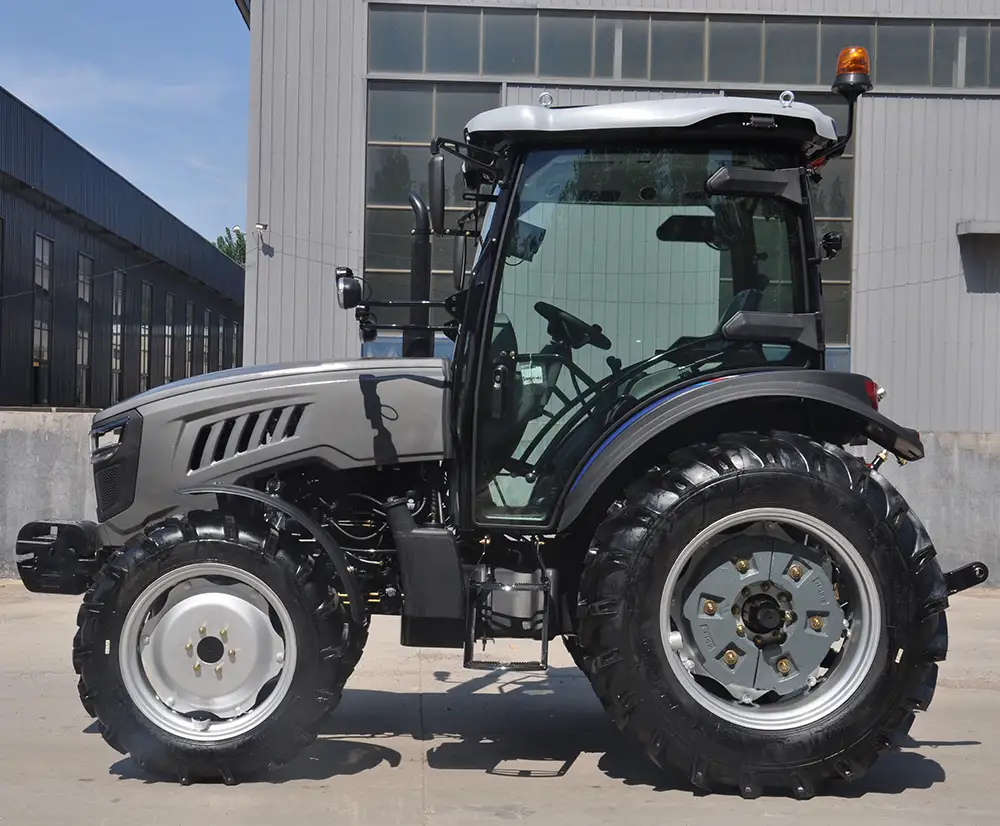

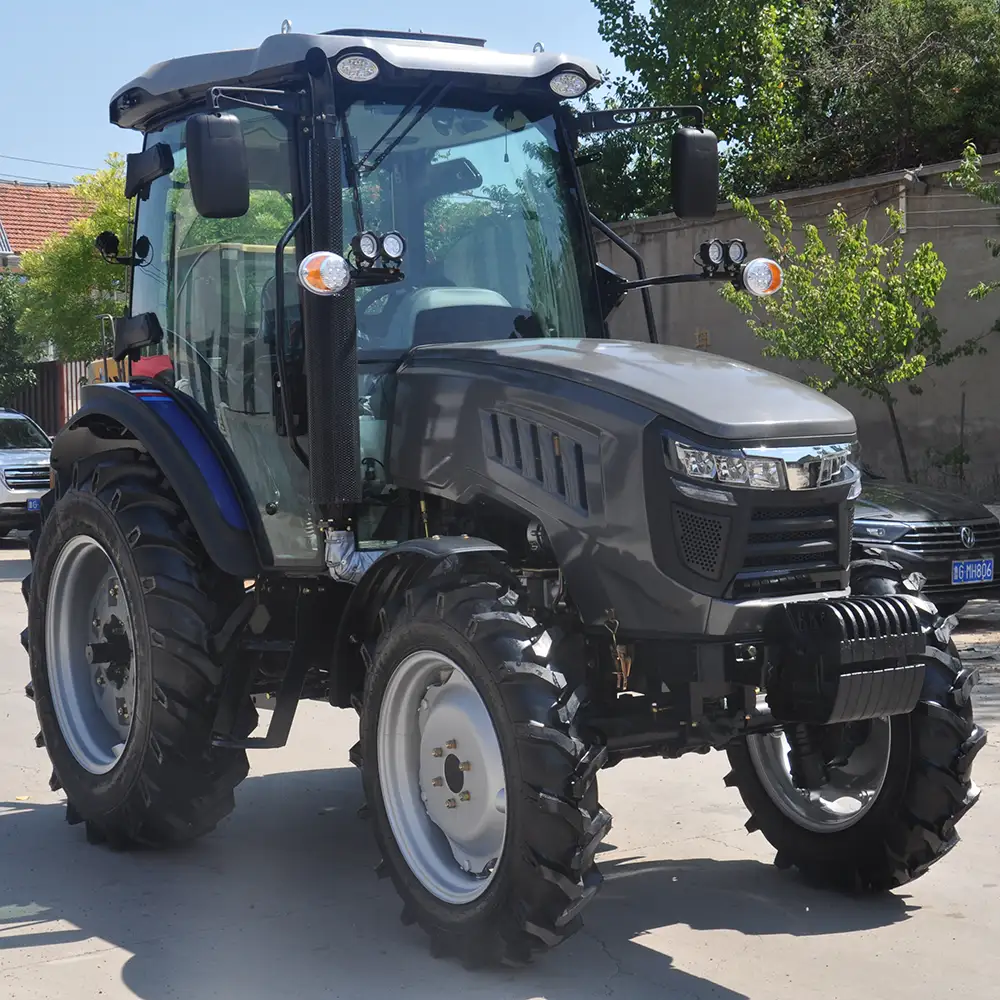

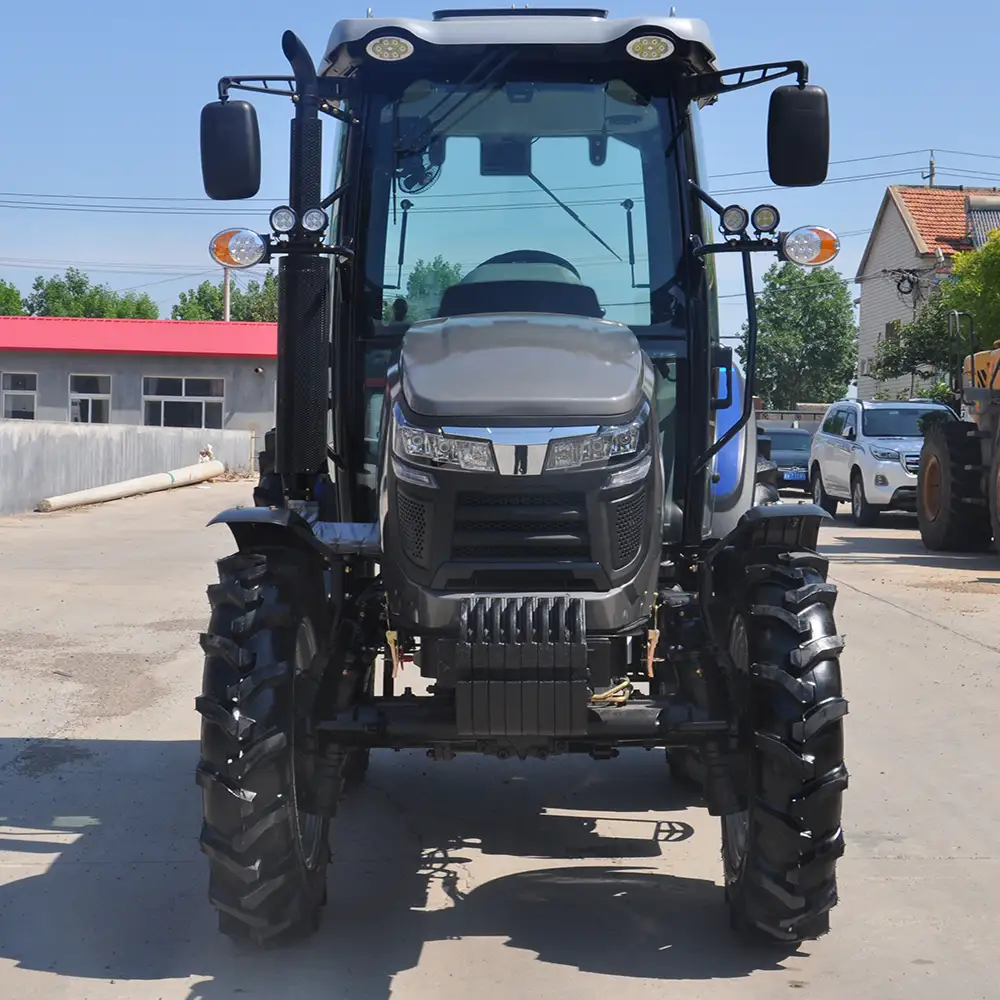

904 Tractor, 90 HP Tractor 4WD with Deluxe Cabin, Fan, Cab Heater, Air Conditioner Technical Parameters

904 Tractor for Sale, 90HP Tractor 4WD with Deluxe Cabin, Fan, Cab Heater, Air Conditioner, two-speed PTO shaft of 540/1000 rpm Machine weight 4000 kg. Large weight allows you to work confidently on rough terrain.

Machine weight - 3090 kg. Large weight allows you to work confidently on rough terrain.
The attachment is connected to a three-point trailing mechanism with a maximum lifting capacity of up to 1420 kg, as well as to a two-speed PTO shaft of 540/1000 rpm

Items Description
Power & Type 90HP, 4x4
Engine  No. of Cylinder 4
Bore×storke(mm) 100x105
Cooling System Forced water cooling
Air Intake Type Naturally Aspirated
Rated Speed(rpm) 2400
Rated Output(kw) 58.8
Dimension Size L*W*H (mm) 4150X1840X2580(CABIN);
4150X1840X2680(ROPS)
Wheel Base (mm) 2050
Wheel Tread (mm)  F/R F:1270/1370/1470;     R:1200~1500
Min Ground Clearance(mm) 360
Structure Weight(kg) 2780(CABIN)/2650(ROPS)
Transmission gear(km/h) Low speed: (f/r)
  i:2.41/2.12;  ii3.50/3.06;
 iii:5.20/4.19;  iv:7.35/6.49
Middle speed: (f/r)
i:6.13/5.30;  ii:8.75/7.69;
iii:13.22/10.50;   iv:18.67/16.84;
High speed: (f/r)
 i:10.62/9.30;  ii:15.47/13.42;
iii:22.91/18.00;   iv:32.36/27.21;
PTO(KW) 58.8
Max. balance weight 130/180
Transmission Front axle type Dry land type
Type of gear 4 X 3 X (1+1)
Clutch Type Double disc,dry,double action
Differential Type F:secondary planetary
R:fourth planetary
Differential Lock F:n/a
R: Tooth type
Main shift type Shift sleeve
Auxiliary shift type Shift sleeve
Running system Tyre F/R 8.3-24/14.9-30
Steering Hydraulic Steering
Steering Device Cycloidal Steering Valve Hydrostatic
Steering Device
Service brake type Oil bath disc type
Parking Brake Mechanical, Manually
Walking system Hitch System 3-Point hydraulic hitch .II
Control Type Force, Position
Hydraulic Pump Gear Pump
PTO Rear Rectangle Spline, 6 Teeth
PTO shaft spline 8
PTO shaft dia.(mm) 38
PTO Speed  540/760rpm
Max.lifting force(KN)  >=15.9
