1. Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking , fault self-diagnosis and other functions.
2.Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.
3. Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.

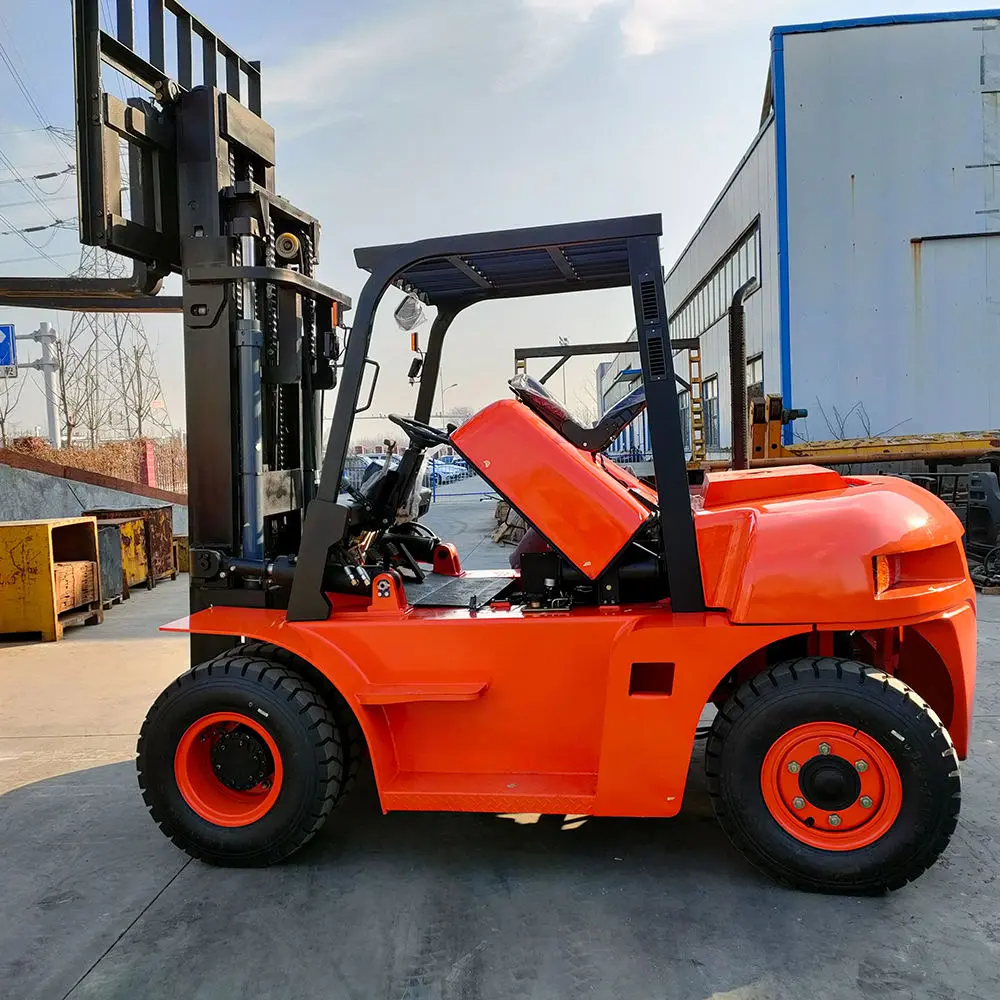

4.Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

Rated lifting load	kg	4000	5000	6000
Load center distance	mm	500	500	600
Lift height	mm	3000	3000	3000
Overall length	mm	2930	3440	3440
Overall Width	mm	1290	2010	2010
Overhead guard height	mm	2180	2340	2430
Wheelbase	mm	1900	2250	2250
Minimum ground clearance	mm	140	150	200
Mast tilt angle (front/rear)	%	6°/12°
Front Tire		250-15-16PR	8.25-15-14PR	8.25-15-14PR
Rear Tire		7.00-12-12PR	8.25-15-14PR	8.25-15-14PR
Minimum turning radius (outer side)	mm	2710	3250	3250
Max.Gradeability	%	20	20	20
Fork size	mm	1070×150×50	1220×150×60	1220×150×60
Forklift weight	kg	4950	8150	8750
Engine model		XinchaiC490BPG	XinchaiC495BPG	XichaiCa6110125G2
Optionl Engine model		ISUZU C240	ISUZU 4JG2	ISUZU 6BG1




Optional configuration

Standard version configuration：2 stage mast / Maximum lifting height 3000 mm / Xinchai 490BPG engine / no side shifter / Pneumatic tire /
Optional configuration : Side shifter / Fork Positioner / 3 stage mast / Maximum lifting height from 4500 mm to 6000 mm / Solid tires / Double wheels / Closed Cabin / Isuzu engine / Yanma engine / Mitsubishi / Euro 5 Engine / Epa engine

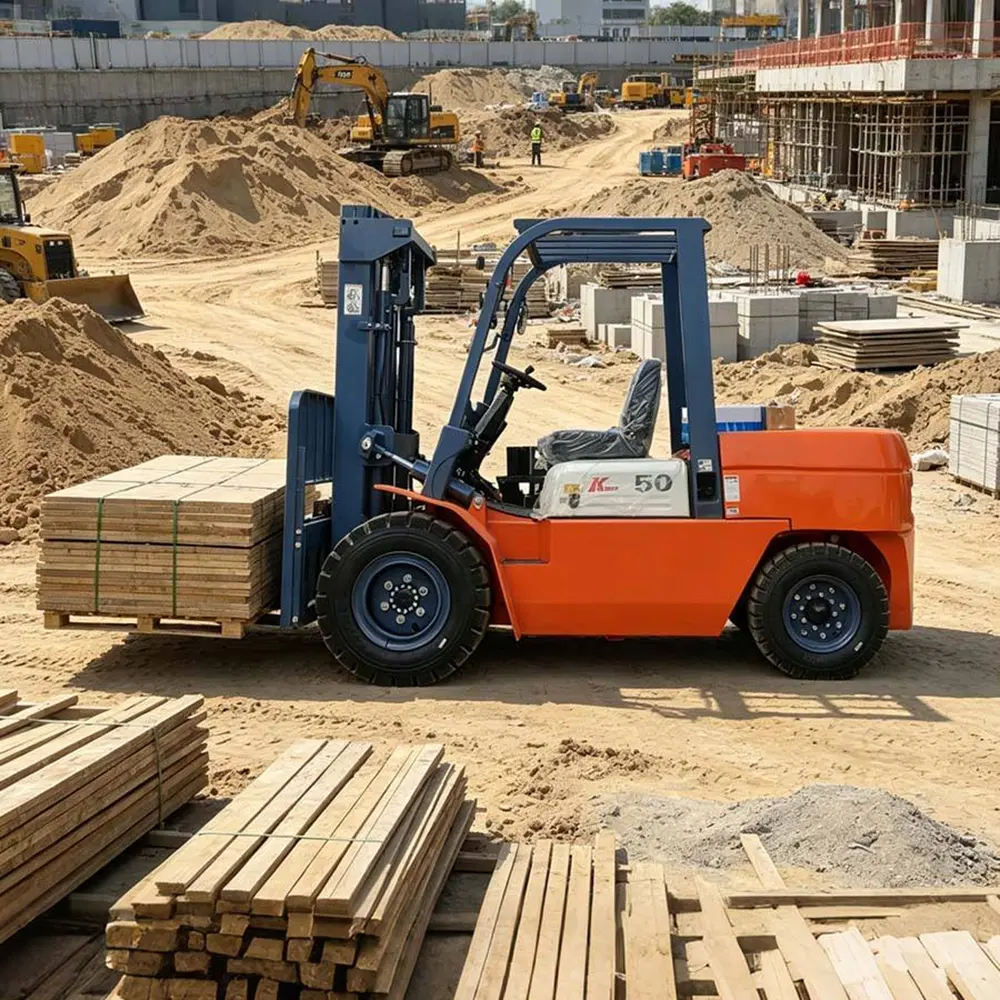

5 Ton Diesel Forklift

The 5 Ton Diesel Forklift is a heavy-duty industrial forklift designed for demanding lifting, loading, and transportation applications. With a rated lifting capacity of 5000kg, this diesel-powered forklift provides strong performance, excellent stability, and reliable operation for handling large and heavy materials.

Compared with smaller forklifts, the 5 Ton Diesel Forklift offers greater lifting capability and is specifically designed for industries requiring high-load handling performance.

It is widely used in:

Manufacturing plants
Warehouses
Logistics centers
Ports and terminals
Steel yards
Construction sites
Mining areas
Heavy equipment industries

The 5 Ton Diesel Forklift is suitable for moving:

Steel coils
Machinery components
Heavy pallets
Construction materials
Timber products
Industrial equipment
Large cargo loads

With powerful diesel performance and a reinforced structure, it provides an efficient solution for heavy-duty material handling operations.

Powerful Diesel Engine Performance

The core advantage of the 5 Ton Diesel Forklift is its strong diesel power system.

The diesel engine provides:

High torque output
Strong driving force
Excellent load performance
Long continuous operating capability
Reliable outdoor operation

Diesel power is especially suitable for heavy-duty applications because it maintains stable performance under demanding workloads.

The forklift can operate efficiently in:

Outdoor storage yards
Construction environments
Industrial facilities
Loading areas
Rough working conditions

The powerful engine ensures smooth transportation even with maximum rated loads.

5000kg Heavy Duty Lifting Capacity

The 5 Ton Diesel Forklift is designed for professional heavy-load operations.

Main lifting advantages include:

5000kg rated load capacity
Strong mast structure
High lifting stability
Precise fork control
Reliable load handling

The reinforced lifting system allows operators to safely move heavy materials.

Typical applications include:

Steel material handling
Machinery transportation
Container support operations
Factory production logistics
Heavy warehouse operations
Advanced Hydraulic Lifting System

The hydraulic system of the 5 Ton Diesel Forklift provides smooth and efficient lifting performance.

Features include:

Strong hydraulic pressure
Fast lifting speed
Stable fork movement
Accurate load positioning
Reduced operating vibration

The hydraulic system controls:

Fork lifting
Fork lowering
Mast tilting
Load adjustment

This improves working efficiency and operational safety.

Durable Heavy Duty Structure

The 5 Ton Diesel Forklift is built for long-term industrial use.

Main structural components include:

Reinforced steel frame
Heavy-duty mast assembly
Strong overhead guard
Durable axles
High-strength forks

Benefits:

Longer service life
Better impact resistance
Lower maintenance costs
Stable performance in harsh environments

The robust design enables continuous operation in demanding industries.

Excellent Stability And Safety Performance

Safety and stability are essential for heavy-load forklift operations.

The 5 Ton Diesel Forklift provides:

Low center of gravity design
Strong chassis stability
Reliable braking system
Stable steering control
Secure load handling

The machine is designed to maintain balance during:

Heavy lifting
Material transportation
Stacking operations
Long-distance movement

This improves operator confidence and workplace safety.

Wide Application Areas
Industrial Manufacturing

The 5 Ton Diesel Forklift is commonly used for:

Raw material movement
Production line supply
Machinery handling
Finished product transportation
Warehouse And Logistics

Applications include:

Heavy pallet handling
Cargo stacking
Warehouse loading
Storage yard operations
Port And Terminal Operations

Suitable for:

Heavy cargo movement
Industrial product transportation
Loading and unloading support
Construction Industry

Used for:

Steel structure handling
Building material transportation
Equipment movement
Construction site logistics
Comfortable Operator Cabin Design

The 5 Ton Diesel Forklift is designed to improve operator comfort and efficiency.

Features include:

Ergonomic seat design
Clear visibility
Easy-to-use controls
Reduced vibration
Comfortable driving position

A comfortable operating environment helps reduce fatigue during long working hours.

Efficient Transmission System

The forklift transmission system provides:

Smooth driving performance
Strong traction
Easy speed control
Reliable operation

The combination of diesel engine power and transmission efficiency ensures excellent performance under heavy loads.

Easy Maintenance And Service

The 5 Ton Diesel Forklift is designed for convenient maintenance.

Advantages include:

Easy engine access
Simple inspection points
Convenient component replacement
Reduced downtime

Regular maintenance helps maintain performance and extend equipment lifespan.

Main Features Of 5 Ton Diesel Forklift
5000kg heavy lifting capacity
Powerful diesel engine
Heavy-duty forklift structure
Efficient hydraulic lifting system
Strong stability and safety performance
Excellent outdoor working capability
Durable mast and fork system
Comfortable operator design
Easy maintenance
Suitable for industrial applications
Why Choose Our 5 Ton Diesel Forklift?
1. Strong Heavy Load Capability

Designed for lifting and transporting loads up to 5 tons efficiently.

2. Powerful Diesel Performance

Provides excellent torque and long operating endurance.

3. Reliable Hydraulic System

Ensures smooth lifting and accurate load control.

4. Durable Industrial Design

Built for continuous operation in demanding environments.

5. Wide Application Range

Suitable for factories, warehouses, ports, construction, and logistics.

6. Professional Support Service

We provide technical support, spare parts, and customized solutions.

FAQS
1. What is a 5 Ton Diesel Forklift used for?

A 5 Ton Diesel Forklift is used for lifting, transporting, and stacking heavy materials up to 5000kg.

2. Where can a 5 Ton Diesel Forklift be used?

It is widely used in factories, warehouses, ports, construction sites, steel yards, and logistics centers.

3. What are the advantages of a diesel forklift?

Diesel forklifts provide strong power, high load capacity, long operating hours, and excellent outdoor performance.

4. Can the forklift handle steel and heavy equipment?

Yes. The 5 Ton Diesel Forklift is specifically designed for heavy materials such as steel products and machinery parts.

5. Is a 5 Ton Diesel Forklift suitable for outdoor work?

Yes. Diesel forklifts are ideal for outdoor environments and rough working conditions.

6. What attachments can be installed?

Optional attachments include side shifters, clamps, extended forks, and customized handling tools.

7. How often should maintenance be performed?

Maintenance frequency depends on operating hours and working conditions. Regular inspections are recommended.

8. Can the 5 Ton Diesel Forklift be customized?

Yes. Fork length, mast height, attachments, and configurations can be customized according to customer requirements.
