Standard Equipments:
4L22 Engine,4 Cylinders,8+2 Gear Shift,With Single-Stage Clutch,Power Steering,
4x4 Wheel Drive,3-Point Linkage, Rear PTO 540/760, Color follow your need.
Options:
Cab,Canopy,Multi-Way Valve,Front Ballast,Rear Ballast,Air Brake,Dual-Stage Clutch,
8+8 Shuttle Gear, Rear PTO 540/1000, Tilting Draw Bar, Combination Instrument

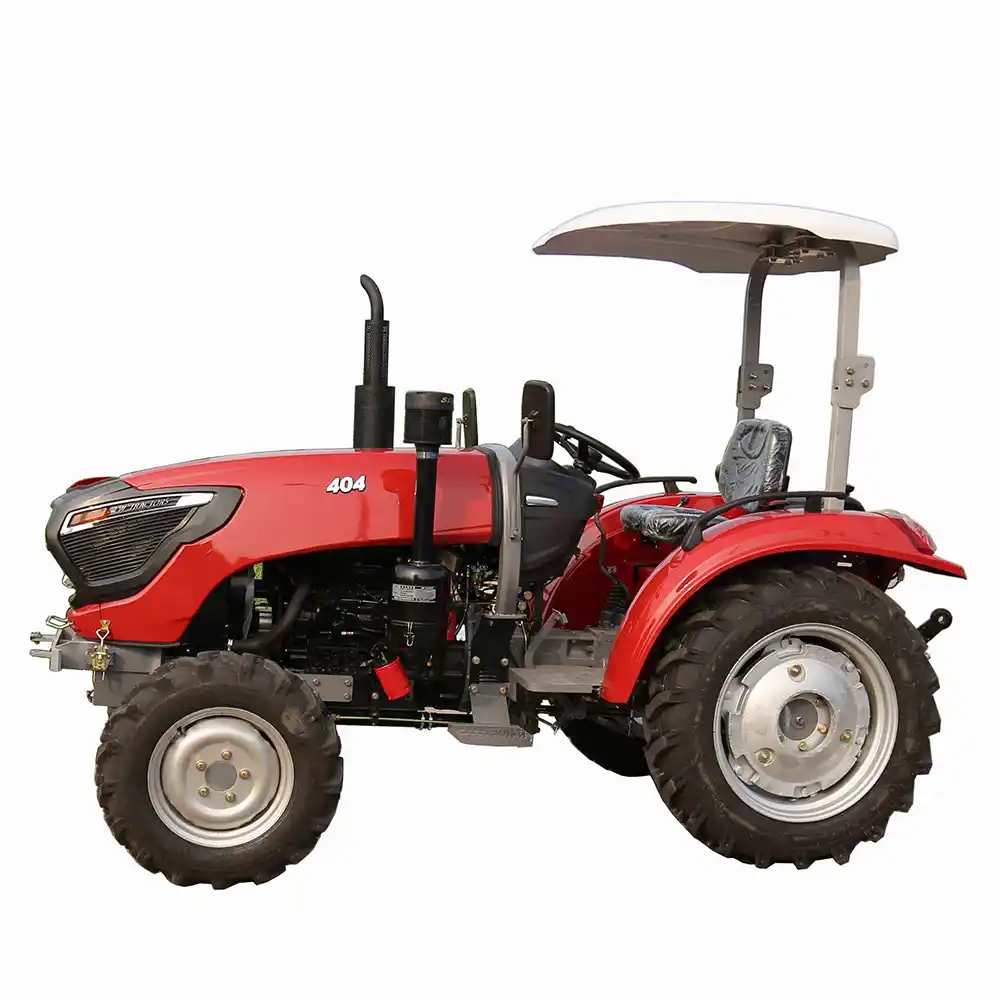

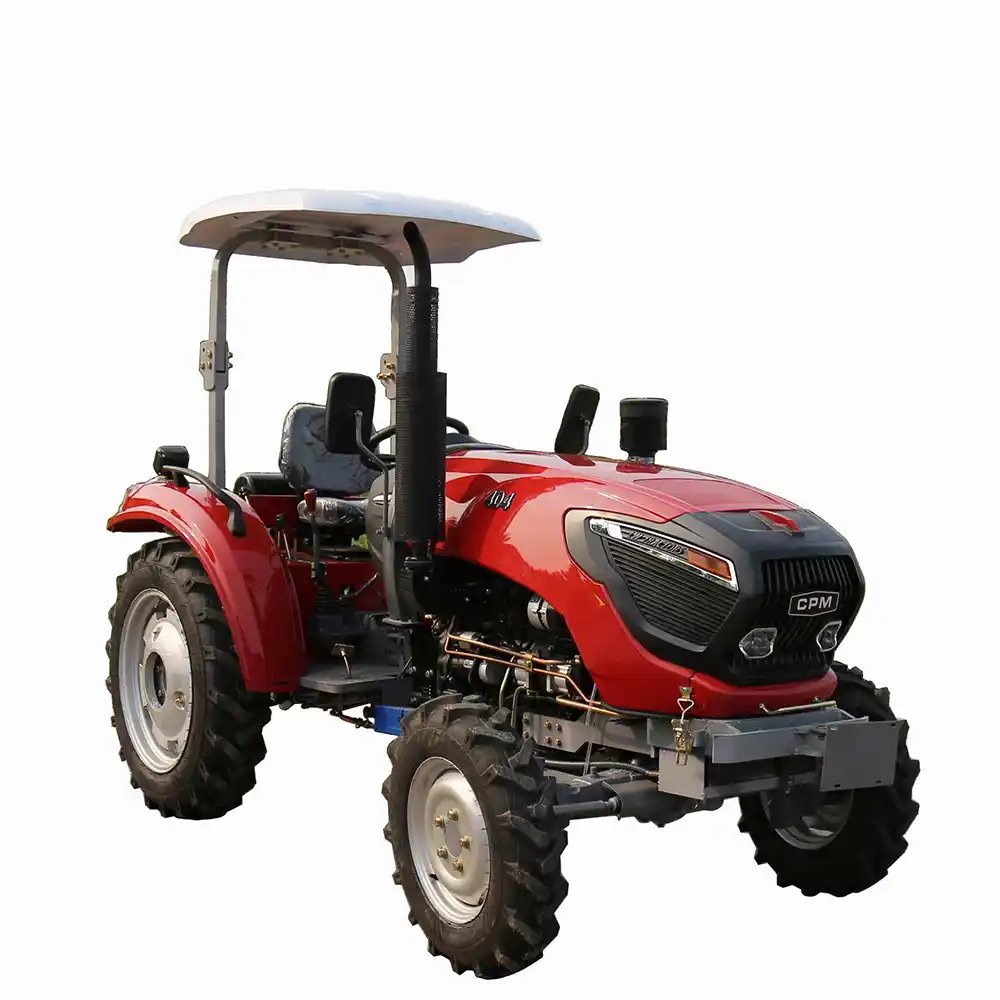

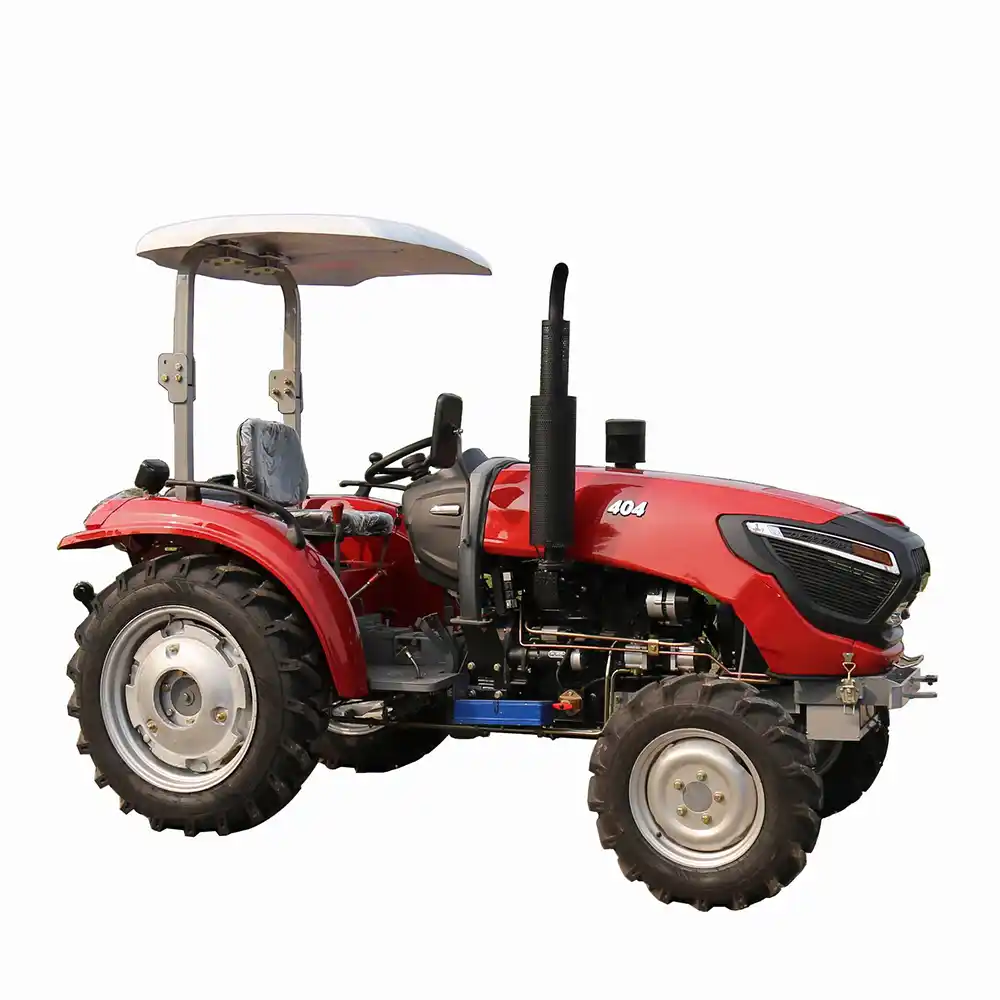

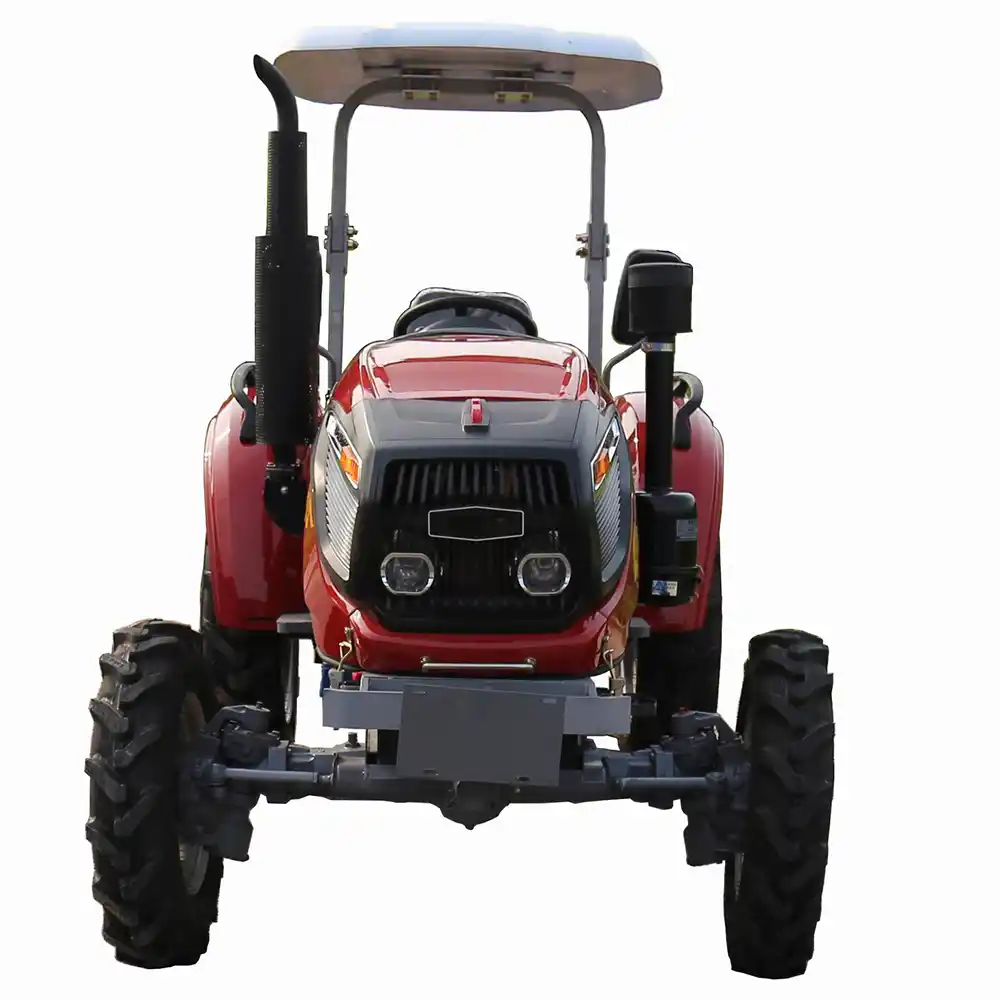

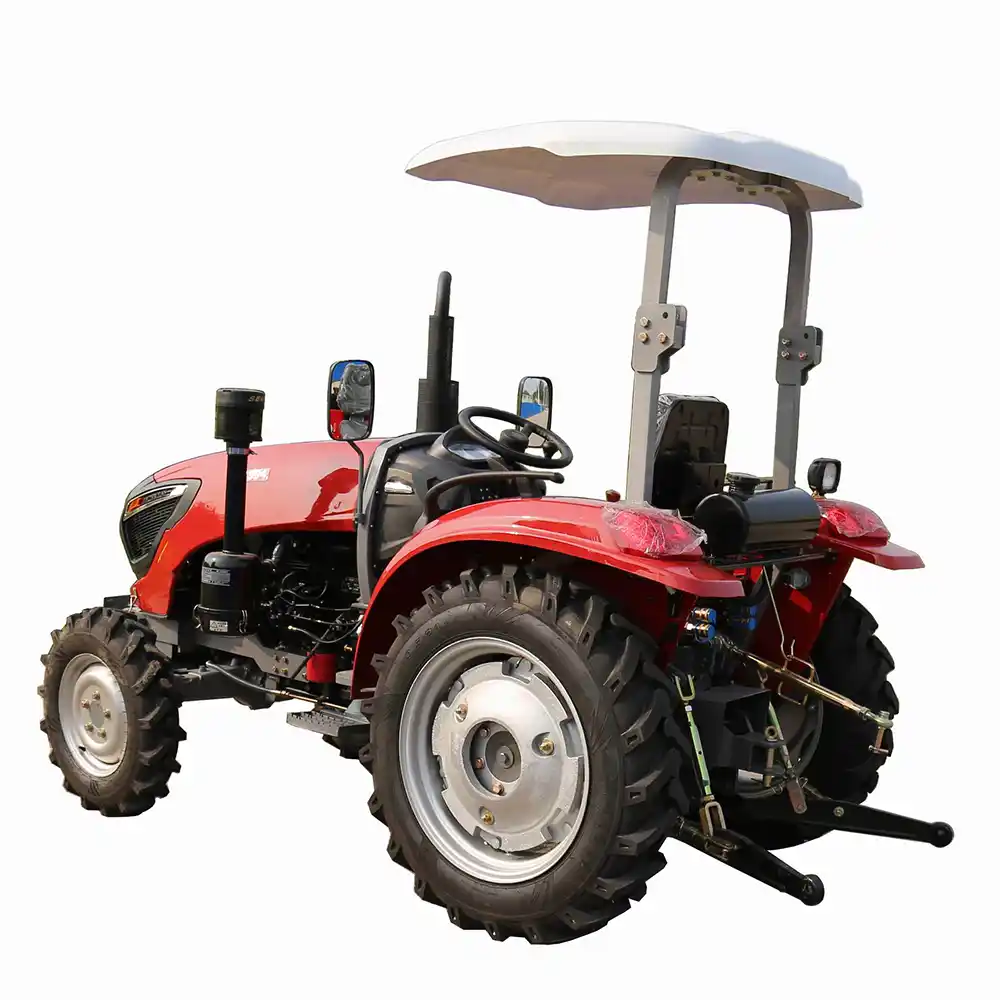

40hp 4wd Tractor Specs
|
Model |
404 |
|
(mm)Dimensions of Tractor |
Length (to front ballast) |
2900 |
|
Width |
1560 |
|
Height (to the exhaust vent) |
2200 |
|
Tread |
Front Wheel |
1500 |
|
Rear Wheel |
1200 |
|
Axle Base |
1690 |
|
Min.Ground Clearance |
300 |
|
Structure weight (kg) |
1300 |
|
Engine |
Model |
LD4L23/YTO490 |
|
Type |
Vertical,4-Cylinder,Water Cooled and 4-stroke |
|
Rated Power(kw) |
29.4 |
|
Rated speed (r/min) |
2400 |
|
Fuel |
Diesel |
|
Tyre |
Front Wheel |
6.00-16/6.5-16 |
|
Rear Wheel |
9.5-24/11.2-24 |
|
Clutch |
Single-stage clutch or Dual-stage clutch |
|
Steering |
hydraulic steering |
|
Transmission Type |
8+2 gear shift/ 8+8 shuttle gear |
|
Suspension Type |
3-point links |
|
PTO |
Type and Rev |
Semi-independent Type 540/760 r/m or 540/1000 |
|
Spline Size |
I35 Rectangle Spline with 6 teeth |
Farm tools:
This model tractor can match all kinds of implements, such as front end loader with standard bucket, 4 in 1 bucket, backhoe, forks, trailer, mower, hedge cutter, snow blower, rotary tiller, disc plough, disc harrow, wood chipper, spreader, post hole digger, transport box and so on, we can also provide other implements according to your requirements.
