3 Ton Telehandler Max Lifting Height 6M, 7M, 10M, 14M, 18M

Technical Parameters

Specifications	T3007	T3507	T4010	T4014	T4018	T5010	T5014	T5018
Max. Lift capacity	3ton	3.5ton	4ton	4ton	4ton	5ton	5ton	5ton
Max lift heigh	7m	7m	8.8m	13.8m	17.6m	9.8m	13.8m	17.6m
Engine
Horsepower	103HP/77.3KW	103HP/77.3KW	114HP/ 85KW	114HP/ 85KW	114HP/ 85KW	122HP/ 91KW	122HP/ 91KW	122HP/91KW
Engine fuel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Transmission
Drive	4WD	4WD	4WD	4WD	4WD	4WD	4WD	4WD
Transmission type	Hydraulic system(Optional Hydrostatic System)
Tyres standard	16/70-20Pneumatic	16/70-20Pneumatic	16/70-24 Semi-solid	440/ 80-24 Tubeless	440/80-24 Tubeless	16/70-24 Semi-solid	440/80-24 Tubeless	440/80-24 Tubeles
Dimension
L*W*H(Without pallet fork)	5000mm*2150mm*2250mm		6200mm*2400mm*2550mm			6400mm*2400mm*2550mm
Ground clearance	350mm	350mm	380mm	380mm	380mm	380mm	380mm	380mm
Features
Enclosed Cab	Standard
Air Conditioner	Standard
Operating Lights	Standard
Joystick Control	Standard
Back-up video	Standard
Parking heater	Standard
Quick Hitch System	Standard
Auxiliary Hydraulics	Standard
Overload Alarm System	Standard

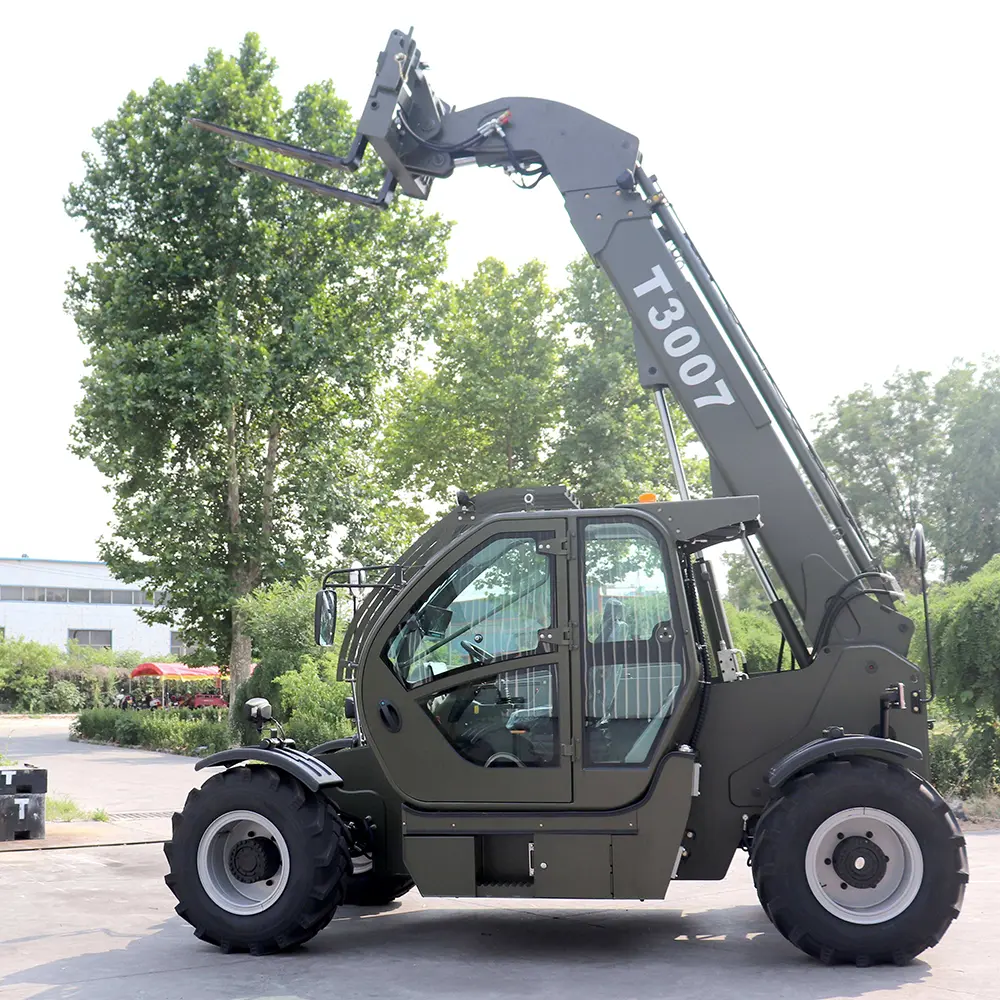

3 Ton Telehandler
Professional Telescopic Handler With 6M, 7M, 10M, 14M And 18M Lift Height Options

The 3 Ton Telehandler is an advanced material handling machine that combines the lifting capabilities of a forklift with the reach advantages of a crane. Designed for versatility and efficiency, it is widely used in construction, agriculture, warehousing, logistics, mining, and industrial operations.

Unlike traditional forklifts that use a fixed mast, telehandlers feature an extendable telescopic boom that can reach both vertically and horizontally. This design enables operators to place materials at elevated locations, reach over obstacles, and transport loads efficiently across rough terrain.

With a rated lifting capacity of 3,000 kg, the 3 Ton Telehandler is suitable for handling construction materials, pallets, agricultural products, steel structures, machinery, industrial equipment, and bulk materials.

Available in multiple boom configurations, including 6M, 7M, 10M, 14M, and 18M lifting heights, the machine can be selected according to project requirements, providing greater flexibility and productivity.

The robust chassis, powerful engine, and advanced hydraulic system ensure excellent performance even in demanding working conditions.

Available Lift Height Models
3 Ton Telehandler 6M

The 6-meter model is ideal for warehouses, farms, factories, and small construction sites.

Suitable For:
Loading and unloading operations
Agricultural material handling
Warehouse storage
Factory logistics
Equipment transportation
3 Ton Telehandler 7M

The 7-meter version provides additional lifting height while maintaining compact maneuverability.

Common Applications:
Construction material placement
Industrial maintenance
Warehouse stacking
Farm operations
3 Ton Telehandler 10M

The 10-meter model is one of the most popular options for medium-sized construction projects.

Advantages:
Greater lifting range
Improved reach capability
Efficient material placement
Enhanced productivity
3 Ton Telehandler 14M

The 14-meter telehandler is designed for projects requiring substantial lifting height and forward reach.

Ideal For:
Commercial construction
Infrastructure development
Steel structure installation
Industrial operations
3 Ton Telehandler 18M

The 18-meter version provides maximum reach for demanding applications.

Suitable For:
High-rise construction
Bridge projects
Industrial plant maintenance
Specialized lifting operations
Powerful Diesel Engine

The 3 Ton Telehandler is equipped with a reliable diesel engine engineered for heavy-duty applications.

Engine Benefits
High torque output
Excellent fuel economy
Stable operation
Strong climbing ability
Reliable performance in harsh environments

The power system ensures continuous productivity while minimizing operating costs.

Advanced Telescopic Boom System

The telescopic boom is the key feature that makes telehandlers highly versatile.

Benefits Include
Increased lifting height
Extended forward reach
Improved accessibility
Precise material placement
Greater job site flexibility

The boom is manufactured from high-strength steel and designed to provide long-term durability and safe operation.

The hydraulic extension system ensures smooth boom movement and accurate control.

Excellent Rough Terrain Capability

Many construction and industrial sites feature uneven surfaces that conventional forklifts cannot navigate efficiently.

The 3 Ton Telehandler is equipped with:

Large all-terrain tires
Four-wheel drive system
High ground clearance
Reinforced chassis
Excellent traction capability

These features allow operation on:

Gravel roads
Construction sites
Dirt tracks
Agricultural fields
Mining areas
Muddy terrain
Heavy Duty Hydraulic System

The advanced hydraulic system provides efficient control of:

Boom lifting
Boom extension
Fork positioning
Steering functions
Attachment operation

The system is designed for precision, durability, and smooth performance under heavy workloads.

Hydraulic responsiveness enhances both productivity and safety.

Comfortable Operator Cabin

The spacious cabin is designed to improve operator comfort and efficiency.

Cabin Features
Ergonomic controls
Adjustable seat
Wide visibility
Digital instrument panel
Optional air conditioning
Low vibration design

These features help reduce fatigue and improve productivity during extended work periods.

Multiple Attachment Compatibility

The 3 Ton Telehandler supports a wide range of attachments for increased versatility.

Pallet Forks

Ideal for standard material handling tasks.

Buckets

Suitable for sand, gravel, soil, and bulk material loading.

Crane Hooks

Used for suspended lifting operations.

Work Platforms

Provide elevated access for maintenance and installation work.

Bale Grabs

Designed for agricultural applications.

Grapples

Suitable for timber, scrap, and irregular materials.

This attachment flexibility allows one machine to perform multiple functions.

Applications Of 3 Ton Telehandler
Construction Industry

Lifts and transports building materials, steel structures, pallets, and equipment.

Agriculture

Handles hay bales, feed, fertilizer, crops, and farm supplies.

Warehousing And Logistics

Supports loading, unloading, stacking, and inventory management.

Industrial Manufacturing

Provides material handling solutions for factories and production facilities.

Infrastructure Development

Used in roads, bridges, tunnels, and utility projects.

Mining Operations

Assists with maintenance, logistics, and material transportation.

Ports And Cargo Facilities

Handles industrial cargo and heavy materials efficiently.

Equipment Rental Companies

A popular rental machine due to its versatility and broad application range.

Advantages Of 3 Ton Telehandler
Strong Lifting Capacity

Rated for lifting up to 3,000 kg safely and efficiently.

Multiple Lift Height Options

Available in 6M, 7M, 10M, 14M, and 18M configurations.

Excellent Terrain Adaptability

Designed for rough and uneven outdoor environments.

Increased Productivity

Reduces labor requirements and improves material handling efficiency.

Multi-Purpose Functionality

Compatible with multiple attachments for various applications.

Reliable Stability

Heavy-duty structure ensures safe lifting performance.

Cost-Effective Investment

One telehandler can replace multiple machines on a job site.

Why Choose Us
Professional Construction Machinery Manufacturer

We specialize in telehandlers, forklifts, excavators, loaders, bulldozers, rollers, crawler dumpers, and other construction equipment.

Strict Quality Control

Every machine undergoes comprehensive inspection and testing before shipment.

Competitive Factory Pricing

Factory-direct sales provide affordable and reliable equipment solutions.

OEM And Custom Manufacturing

Customized colors, logos, attachments, and configurations are available.

Rich Export Experience

Machines are exported worldwide with professional logistics support.

Spare Parts Availability

Long-term spare parts supply and technical support are guaranteed.

Professional After-Sales Service

We provide maintenance guidance, technical consultation, and comprehensive customer support.

FAQs
1. What is the lifting capacity of this telehandler?

The rated lifting capacity is 3 tons (3,000 kg).

2. What lifting heights are available?

Available lifting heights include 6M, 7M, 10M, 14M, and 18M.

3. Can the telehandler operate on rough terrain?

Yes. It is specifically designed for rough terrain and outdoor applications.

4. Is four-wheel drive available?

Yes. Most models feature a four-wheel drive system for enhanced traction.

5. What industries use telehandlers?

Construction, agriculture, warehousing, logistics, mining, manufacturing, and infrastructure industries.

6. What attachments can be installed?

Forks, buckets, crane hooks, work platforms, grapples, and bale grabs.

7. Can it lift materials to elevated work areas?

Yes. The telescopic boom provides excellent lift height and forward reach.

8. Is maintenance convenient?

Yes. Service points are designed for easy inspection and maintenance.

9. Can the machine be customized?

Yes. OEM and custom specifications are available.

10. Do you provide spare parts and technical support?

Yes. We provide complete spare parts support and professional after-sales service.
