180 HP Tractor, 4WD, 1804 Tractor, 16F+16R Transmission, YTO engine Tractor Technical Parameters

Agricultural Farm Tractor 180 HP Tractor, 4WD, 1804 Tractor Supplier, 16F+16R Transmission, YTO engine Tractor Single disc,Dry friction, Double clutch..

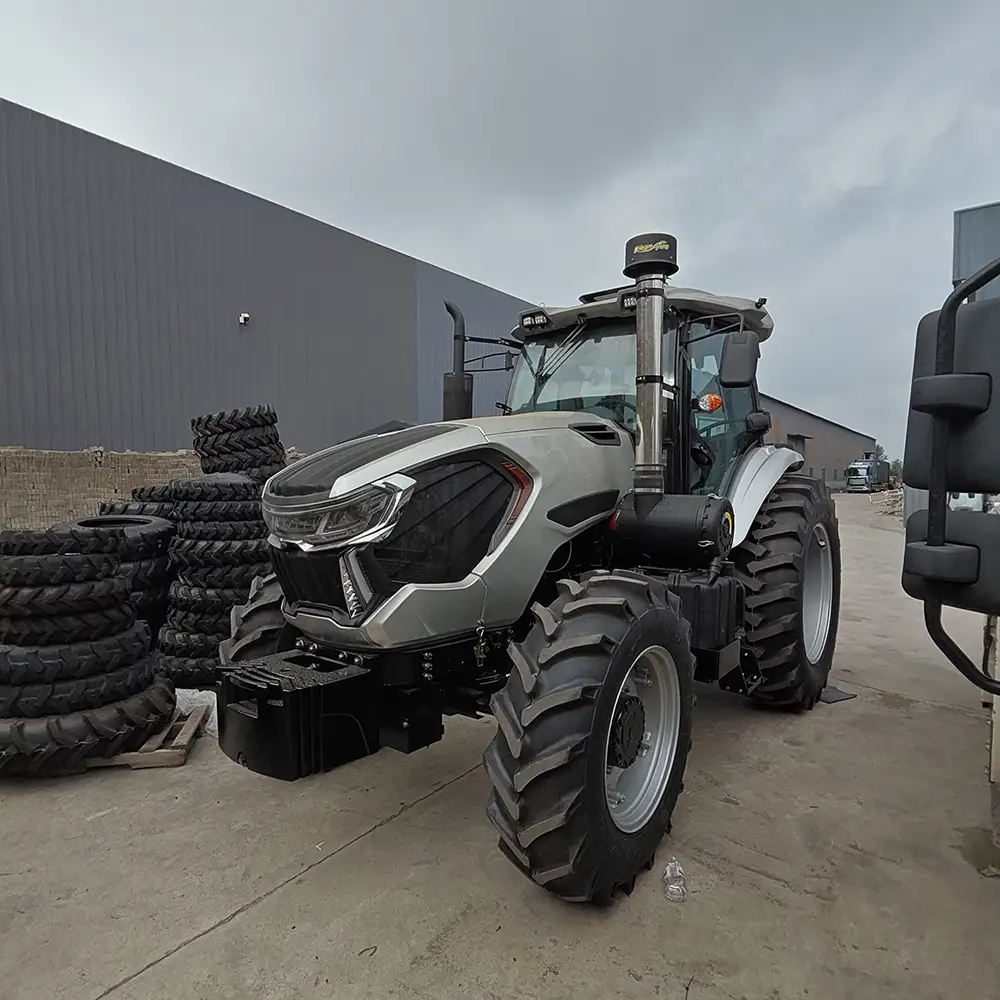

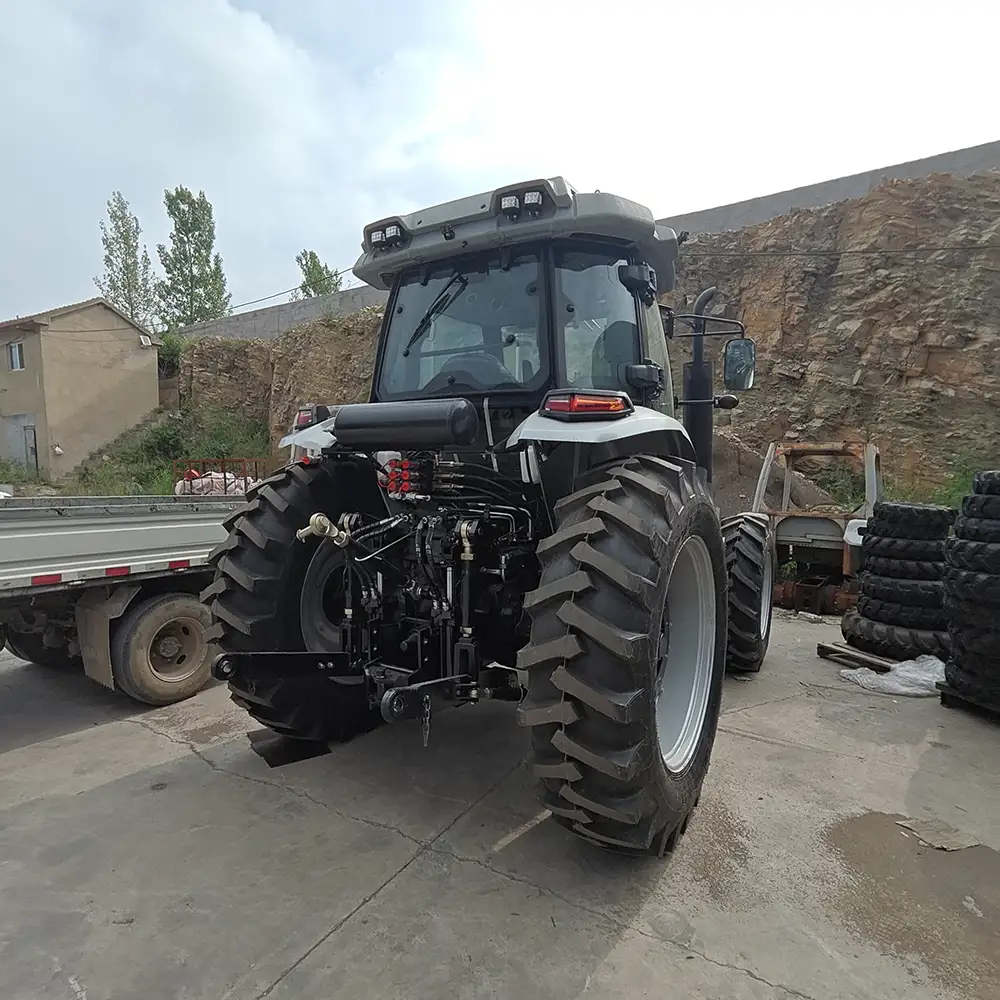

Agricultural Farm Tractor 4wd 180hp with YTO engine Tractor:

General Specification
Products Model 1804
wheel Drive 4x4
Dimension(L*W*H)mm 5340x2398 (Double tire) x3180(to the muffler)
Weight(kg) 7515
Front wheel Tread(mm) 1990
Rear Wheel(mm) 1740 (Single tire:1740-1820, Double tire:2420)
Wheel Base(mm) 2758
Minimum Land Clearance(mm) 430
Gear shifts 16F+16R
Tyre Size 14.9-28/20.8-38 (Double rear tire:14.9-28/18.4-42)
Steering gear Hydraulic steering
Rear Suspension Three-point Suspension
Engine Specification
Engine Model YTO LR6M3ZU23
Type Water cooled ,Vertical,4 stroke and Direct injection
Rated Power(kW) 132.35
Rated Revolution(r/min) 2300/2400
Start Way Electricity Start
Transmission (1+1)×4×4 shifts
Clutch Single disc,Dry friction, Double clutch.
PTO Speed 8 spline 760/1000
