Standard Equipments:
QC4108T80 Engine,4 Cylinders,12+12 Gear Shift,With Dual-Stage Clutch,Power Steering,Trailer outlet,
protection plate,Tires:8.3-24/14.9-30,hand throttle wire ,4x4 Wheel Drive,3-Point Linkage,
Rear PTO 540/1000, Color follow your need.
Options:
Cab,Canopy,Multi-Way Valve,Air Brake,Front Ballast,Rear Ballast,Tilting Draw Bar

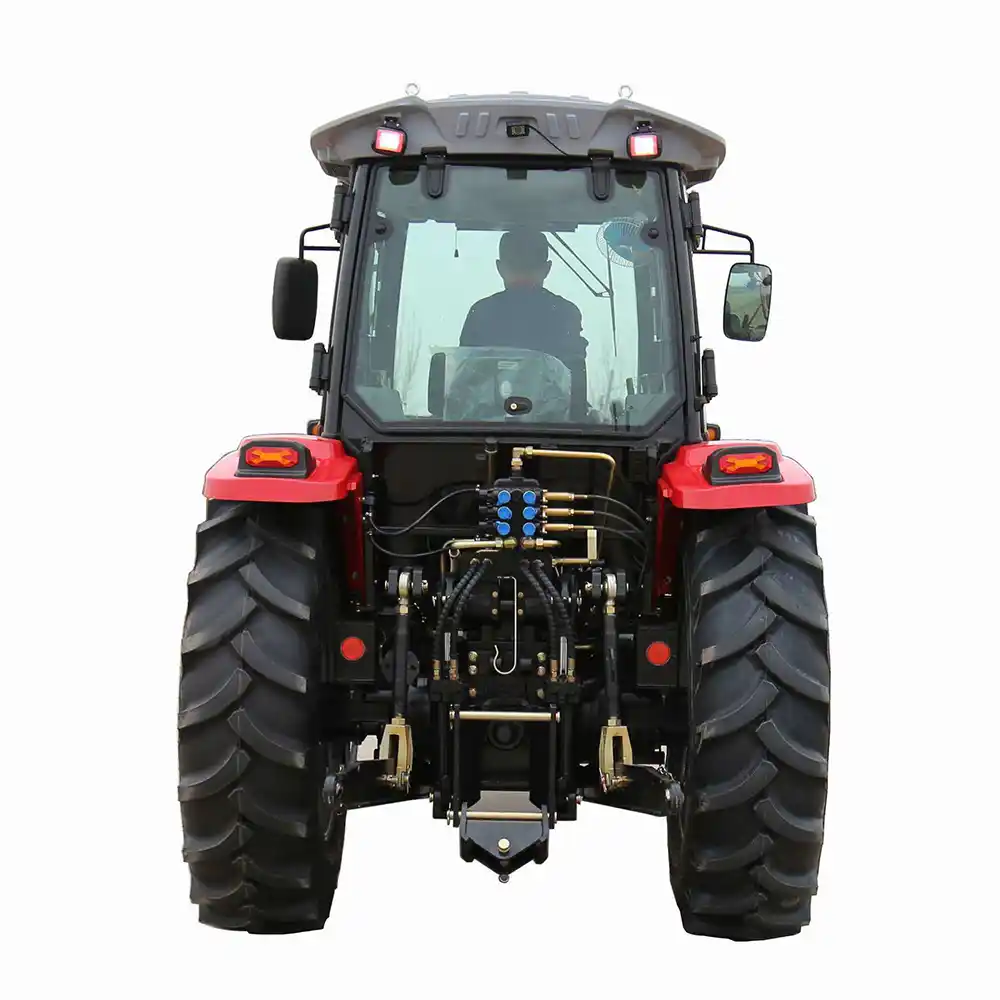

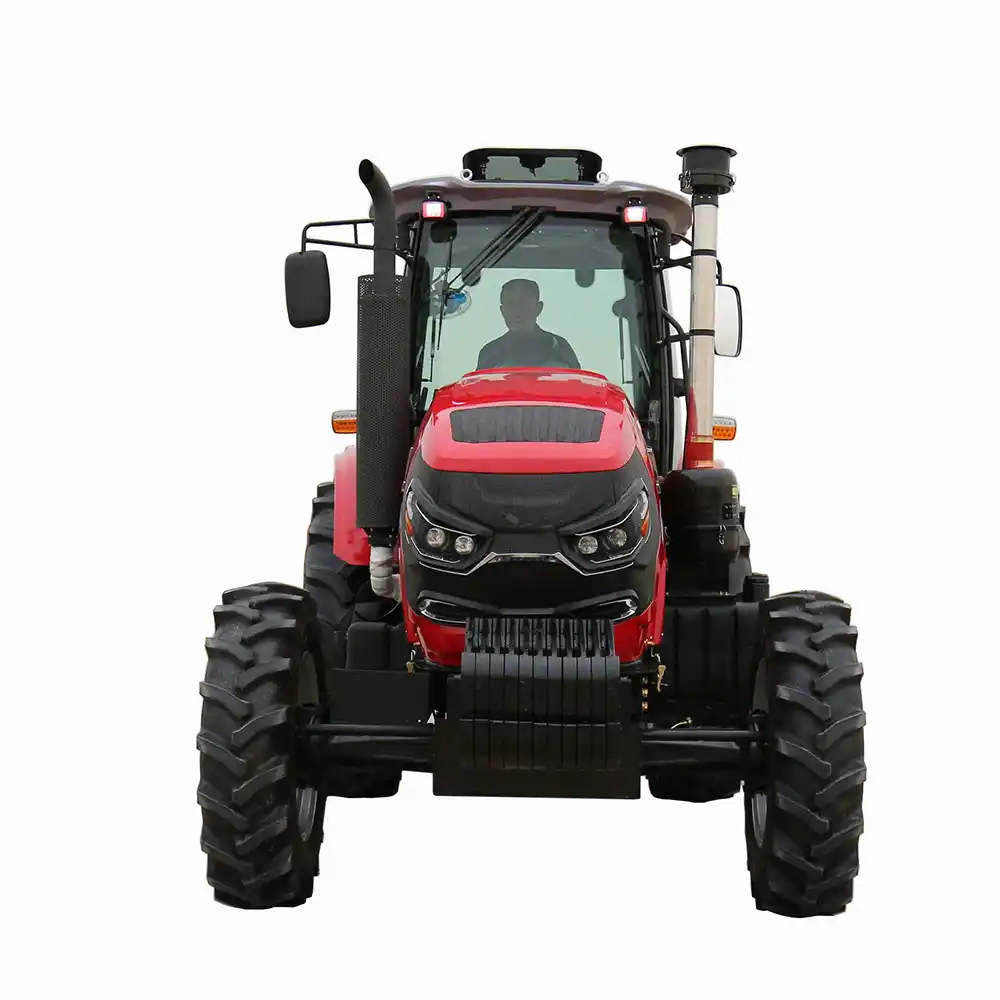

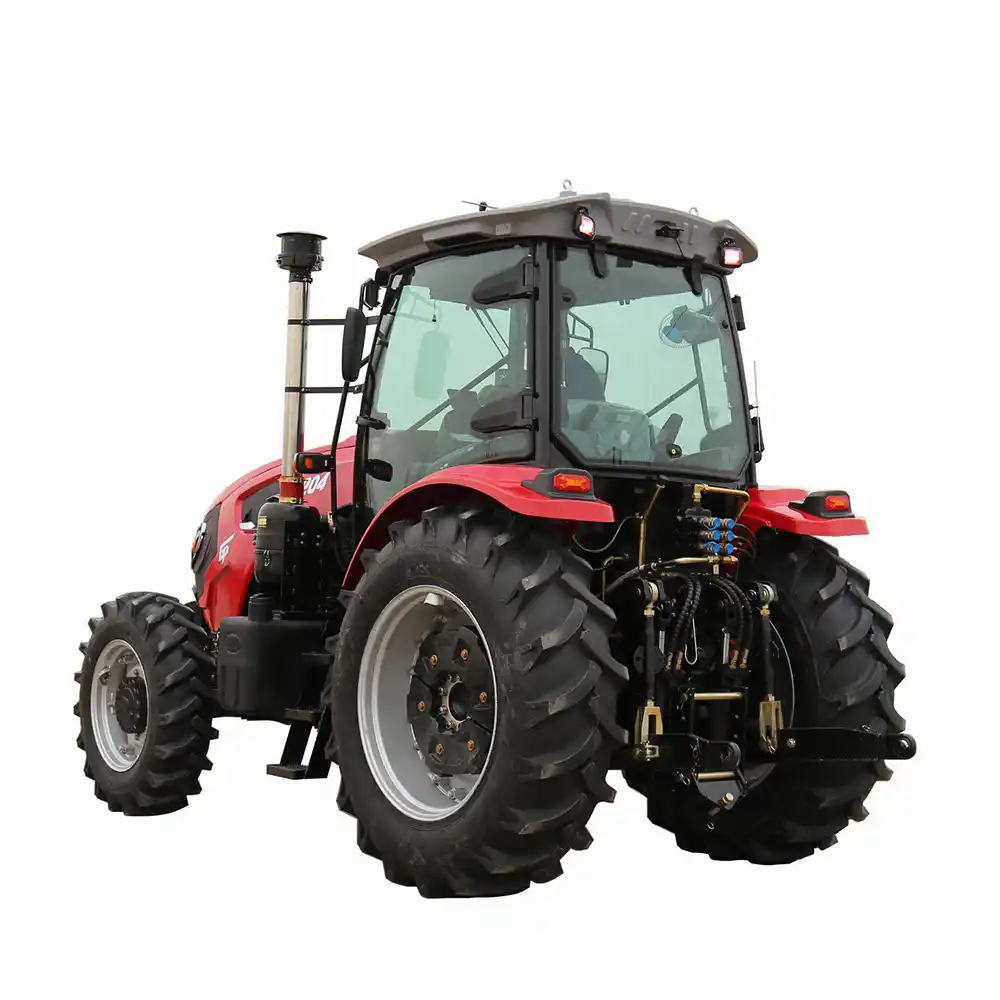

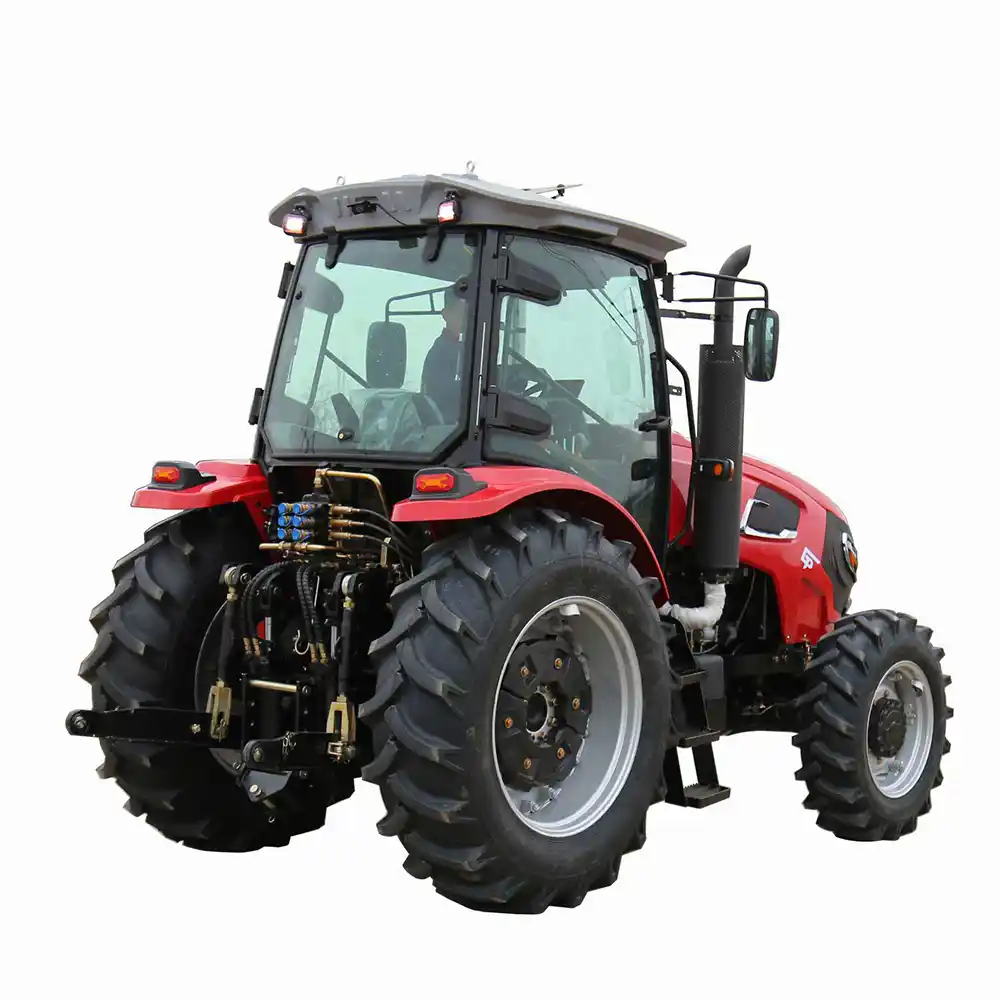

100hp 4wd Tractor Specs
|
Model |
1004 |
|
Dimensions of Tractor(mm) |
Length |
3900 |
|
Width |
1795 |
|
Height (to the exhaust vent) |
2160 |
|
Tread |
Front Wheel |
1450 |
|
Rear Wheel |
1450 |
|
Axle Base |
2072 |
|
Min.Ground Clearance |
410 |
|
Structure weight (kg) |
2700Kg |
|
Engine |
Model |
QC4108 |
|
Type |
Vertical,4-Cylinder,Water Cooled and 4-stroke |
|
Rated Power(kw) |
100HP |
|
Rated speed (r/min) |
2400 |
|
Fuel |
Diesel |
|
Tires |
Front Wheel |
8.3-24 |
|
Rear Wheel |
14.9-30 |
|
Clutch |
Dual-stage clutch |
|
Steering |
Hydraulic steering |
|
Transmission Type |
12+12 shift |
|
Suspension Type |
3-point links |
|
PTO |
Type and Rev |
Semi-independent Type 720r/m or 540/720r/m |
|
Spline Size |
I38 Rectangle Spline with 8 teeth |
TZ-8 Front End Loader with 4 - in - 1 Bucket Specifications:
|
Model |
TZ-10 |
|
Bucket capacity(m3) |
0.43 |
|
Rated Load(Kg) |
800 |
|
Overall dimensions(mm) |
4900×1740×1296 |
|
Max. dump height(mm) |
2200 |
|
Max. dump distance(mm) |
960 |
|
Bucket rollback angle (degree) |
420 |
|
Max. unloading angle (degree) |
460 |
|
Max. scraping depth(mm) |
160 |
|
Lifting time to pivot pin(s) |
8 |
|
Descending time(s) |
4 |
|
Recommended Tractor(hp) |
50-70 |
LW-8 Backhoe Specifications:
|
Model |
LW-10 |
|
Bucket Capacity(m3) |
0.048 |
|
Bucket Wide(mm) |
450 |
|
Max.digging depth(mm) |
2640 |
|
Max.digging Radius(mm) |
3930 |
|
Max.digging Height(mm) |
3510 |
|
Discharging Height(mm) |
2000 |
|
Max.digging depth(2ft) Flat bottom(mm) |
2500 |
|
Swing Angle(degree) |
140° |
|
Bucket Rotation(degree) |
160° |
|
Dipper stick Digging Force(Kg) |
1000 |
|
Operating pressure(Mpa) |
16 |
Packaging & Delivery:
-3 units inside 1x40'fcl assembled,
-Delivery time: 30 days after receiving your deposit
