Single Shaft Small Flat Grinding Machine Technical Parameters

Single Shaft Small Flat Grinding Machine is designed for precision surface grinding, deburring, and finishing of small metal parts. Ideal for hardware, stainless steel, aluminum, and precision component processing applications..

The Single Shaft Small Flat Grinding Machine is a compact and efficient metal finishing machine designed for precision flat surface grinding, burr removal, and surface improvement of small and medium-sized metal components. With a reliable single shaft grinding structure, this machine provides stable performance, accurate processing, and excellent surface finishing results for various industrial applications.

During machining processes such as cutting, stamping, milling, drilling, and casting, metal parts often develop burrs, uneven edges, scratches, and surface imperfections. These defects can affect product appearance, assembly accuracy, and final performance. The Single Shaft Small Flat Grinding Machine provides an efficient solution to remove unwanted material and create smooth, uniform surfaces.

Due to its compact size, simple operation, and high processing efficiency, this machine is widely used in hardware manufacturing, precision parts production, automotive components, stainless steel products, electronic components, and general metal fabrication industries.

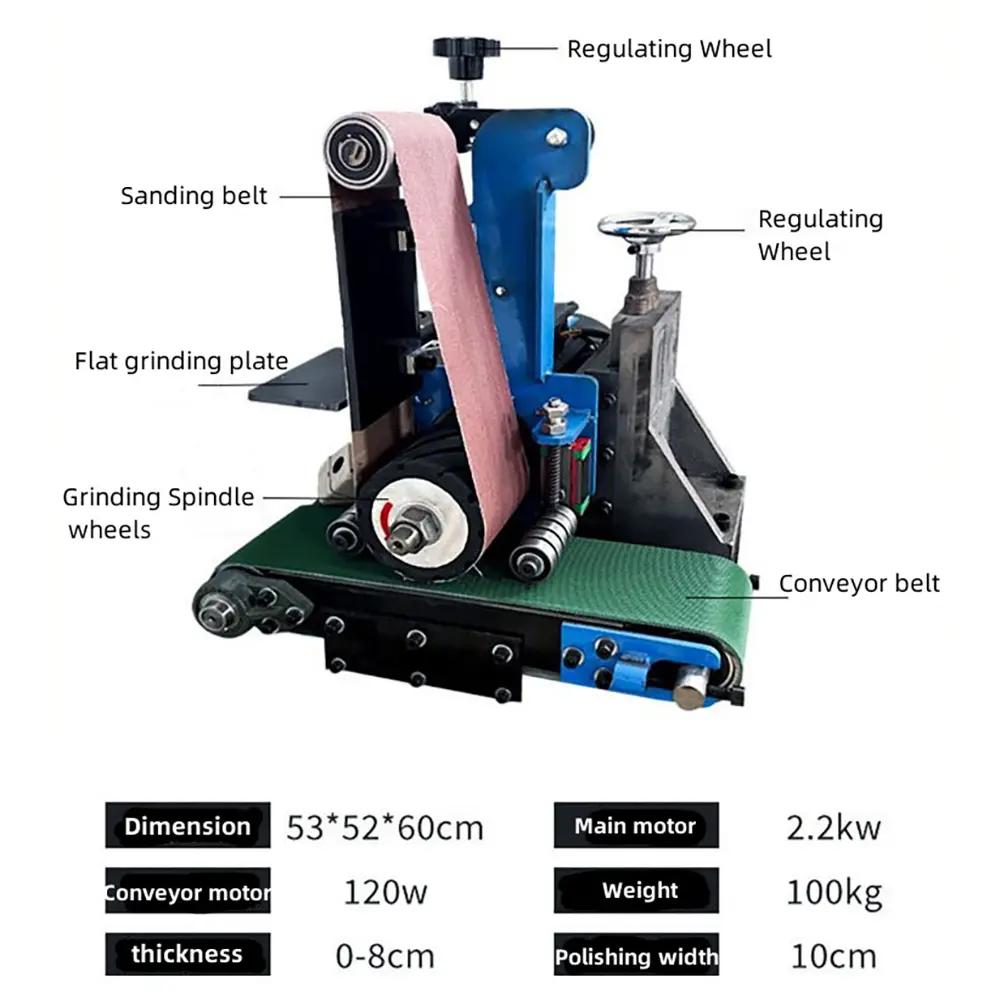

Model 100 type flat sanding polishing machine 100 type double shaft flat sanding polishing machine
Max. Sanding width 100mm 100mm
MIn. Sanding length 180mm 180mm
Sanding thickness 0.2~80mm 0.2~80mm
Sanding motor power 2.2kw 2.2KW*2
Feeding motor power 120W 120W
Sanding belt 915*100mm 915*100mm
Main grinding wheel 25mm*120mm*100mm 25mm*120mm*100mm
Dimension 530*520*600mm 850*520*600mm
Weight 100kg 150kg
Application: Stainless steel grinding and wire drawing, aluminum plate grinding, sheet metal deburring, hardware processing parts
surface grinding and wire drawing.

Efficient Single Shaft Grinding Performance

The Single Shaft Small Flat Grinding Machine adopts a high-performance single shaft grinding system that provides stable rotation and consistent grinding force. The optimized structure ensures smooth operation and accurate material removal during continuous production.

Compared with manual grinding methods, this machine offers:

Faster processing speed
More uniform grinding results
Lower labor requirements
Improved production efficiency
Better surface consistency

The single shaft design provides a practical and economical solution for manufacturers requiring reliable flat surface grinding without complex equipment structures.

Precision Flat Surface Finishing

The main function of the Single Shaft Small Flat Grinding Machine is to achieve smooth and accurate finishing on flat metal surfaces. The machine effectively removes:

Metal burrs
Cutting marks
Oxidation layers
Welding residues
Surface scratches
Uneven areas

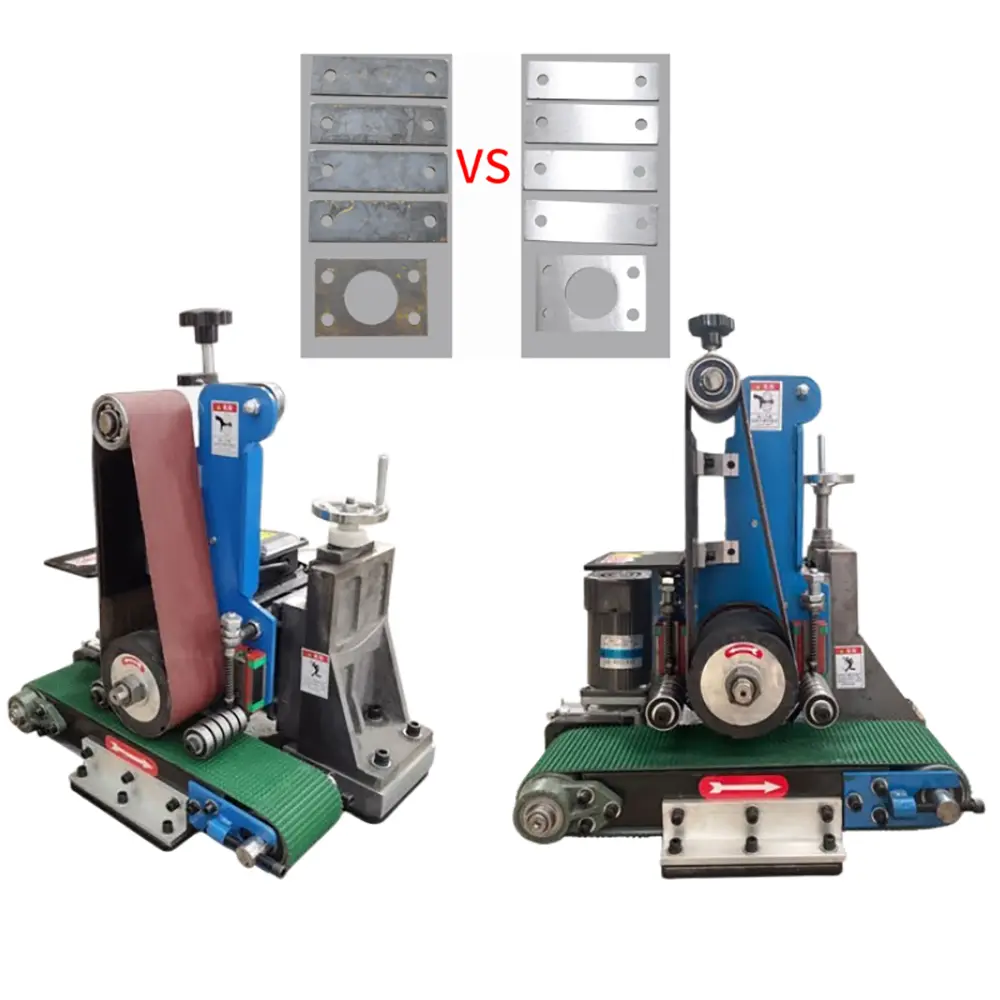

After processing, workpieces achieve improved flatness, cleaner edges, and better surface quality, making them suitable for further operations such as coating, painting, welding, polishing, and assembly.

Compact Design For Small Parts Processing

The Single Shaft Small Flat Grinding Machine features a space-saving design, making it suitable for workshops and production facilities with limited space.

It is ideal for processing:

Small metal plates
Hardware components
Machine accessories
Stainless steel parts
Aluminum components
Precision mechanical parts
Custom fabricated products

The compact structure allows easy installation and operation while maintaining reliable industrial performance.

Wide Application Industries

The Single Shaft Small Flat Grinding Machine is widely applied in:

Hardware Manufacturing

Used for finishing screws, brackets, fittings, and small metal components.

Automotive Parts Production

Suitable for grinding and deburring automotive accessories and precision parts.

Stainless Steel Processing

Provides smooth finishing for stainless steel products and decorative components.

Electronics Industry

Used for surface treatment of small metal housings and precision parts.

Machinery Manufacturing

Improves surface quality of mechanical components after machining.

Metal Fabrication

Provides efficient grinding solutions for various fabricated metal products.

Suitable Materials

The Single Shaft Small Flat Grinding Machine can process different metal materials, including:

Stainless Steel
Carbon Steel
Aluminum
Copper
Brass
Alloy Steel
Metal Plates
Small Mechanical Components

Different abrasive wheels and grinding tools can be selected according to material hardness and required finishing effects.

Reliable Machine Structure

The machine is built with a durable industrial structure to ensure long-term operation and stable grinding performance.

Main advantages include:

Strong machine frame
Stable single shaft transmission system
Low vibration operation
Precise grinding control
Easy maintenance
User-friendly operation

The robust construction ensures reliable performance in continuous manufacturing environments.

Advantages Of Automatic Flat Grinding

Compared with traditional manual grinding, the Single Shaft Small Flat Grinding Machine provides many benefits:

Higher Efficiency

Automatic grinding significantly reduces processing time.

Consistent Quality

Stable grinding force ensures uniform surface results.

Lower Production Costs

Reduced manual labor improves overall production efficiency.

Improved Safety

Minimizes direct contact with grinding operations.

Better Product Appearance

Creates smooth and professional finished surfaces.

Key Features Of Single Shaft Small Flat Grinding Machine
1. Single Shaft Grinding System

Provides stable and efficient flat surface processing.

2. Precision Surface Grinding

Ensures accurate and consistent finishing results.

3. Compact Industrial Design

Saves production space and simplifies installation.

4. Wide Material Compatibility

Suitable for various metal parts and components.

5. Easy Operation

Simple controls allow quick adjustment and operation.

6. Low Maintenance Requirements

Designed for reliable long-term industrial use.

Why Choose Our Single Shaft Small Flat Grinding Machine?
Professional Manufacturing Experience

We specialize in industrial grinding and finishing equipment, providing reliable solutions for global customers.

Stable Performance And High Precision

Our machines are manufactured with quality components to ensure accurate grinding and consistent processing results.

Customized Solutions

Grinding width, machine configuration, automation options, and processing requirements can be customized according to customer needs.

Competitive Factory Direct Supply

Direct manufacturer supply provides cost-effective equipment with reliable quality and professional support.

Complete Technical Service

We provide installation assistance, operation guidance, maintenance support, and spare parts service.

FAQS
Q1: What is a Single Shaft Small Flat Grinding Machine used for?

A Single Shaft Small Flat Grinding Machine is used for grinding, deburring, and finishing flat surfaces of small and medium-sized metal parts.

Q2: What is the difference between single shaft and double shaft grinding machines?

A single shaft machine uses one grinding shaft and provides a simpler, more economical solution, while a double shaft machine offers higher processing efficiency with dual grinding systems.

Q3: What materials can this machine process?

It can process stainless steel, carbon steel, aluminum, copper, brass, alloy steel, and other metal materials.

Q4: Is it suitable for small workshops?

Yes. Its compact design makes it suitable for small factories, workshops, and production lines with limited space.

Q5: Can it remove burrs from metal parts?

Yes. The machine effectively removes burrs, sharp edges, scratches, and machining marks.

Q6: Can grinding parameters be adjusted?

Yes. Grinding pressure, speed, and abrasive selection can be adjusted according to different processing requirements.

Q7: Do you provide customized machines?

Yes. Customized solutions are available according to workpiece size, production capacity, and surface finishing requirements.
