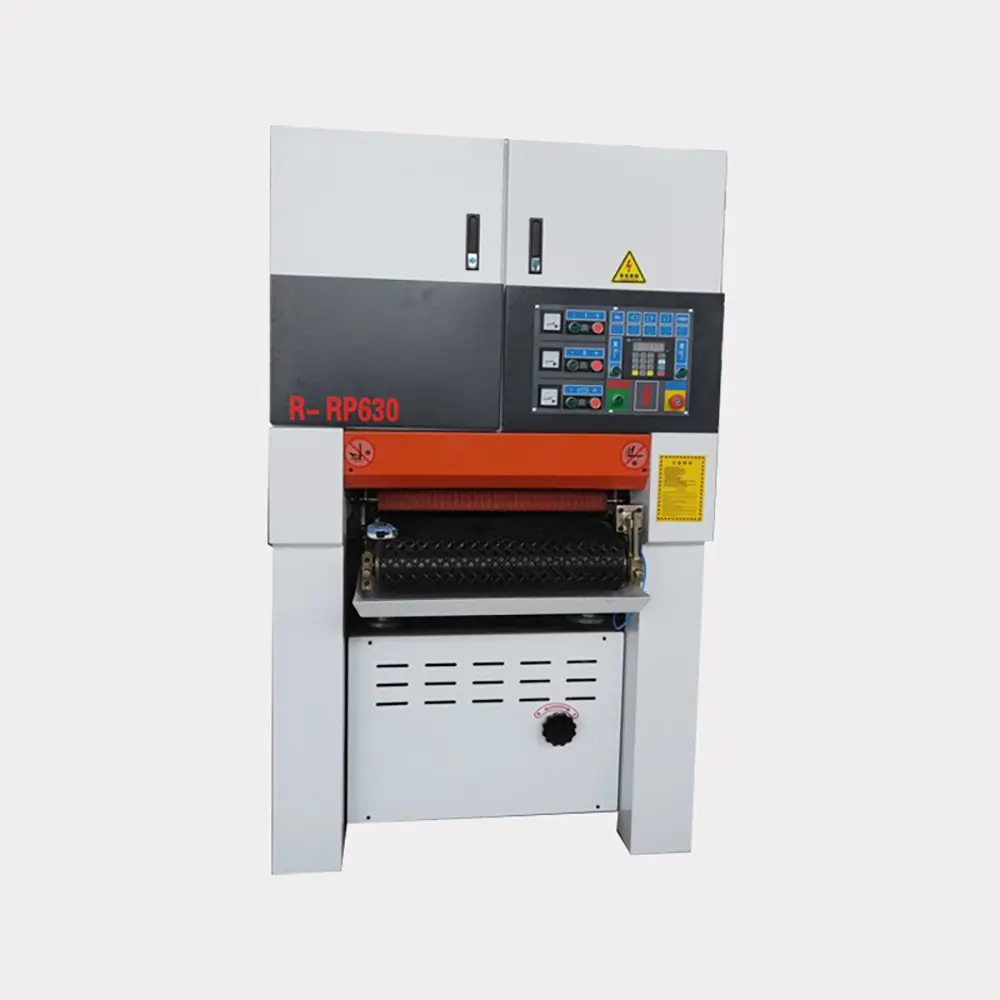

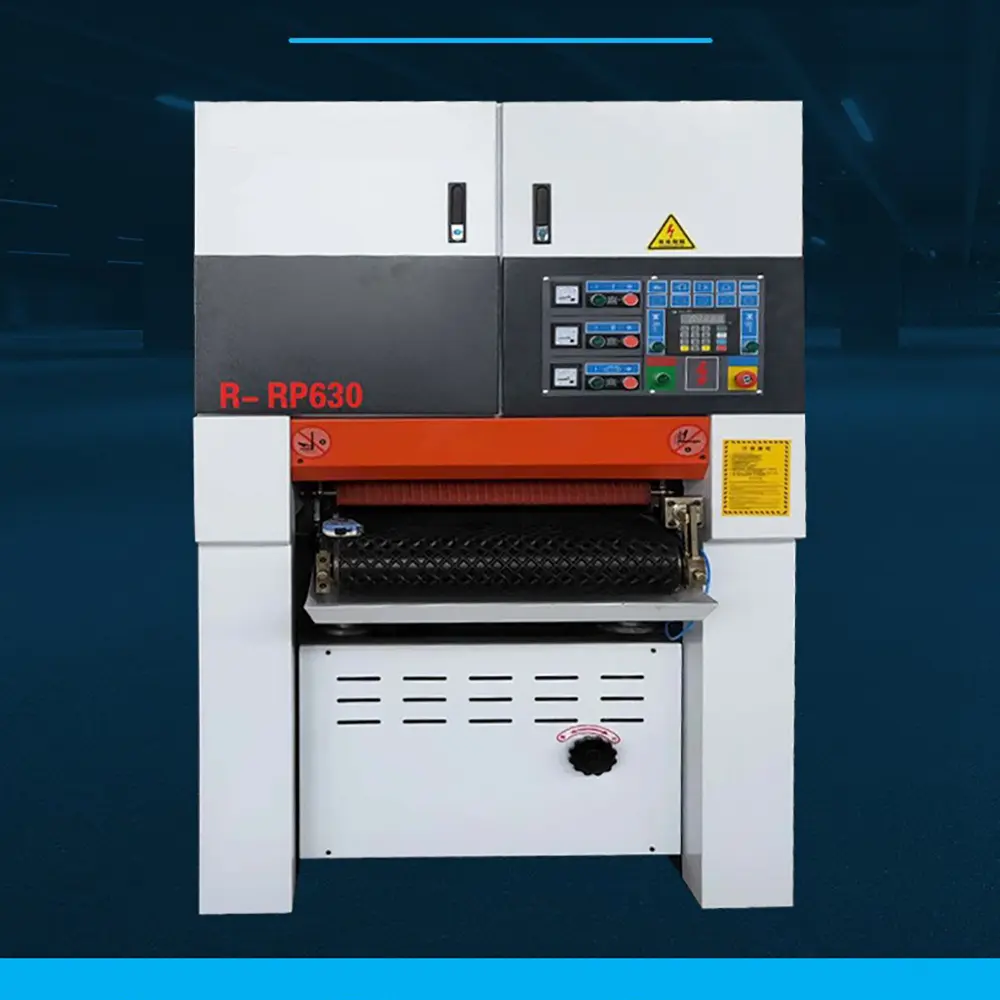

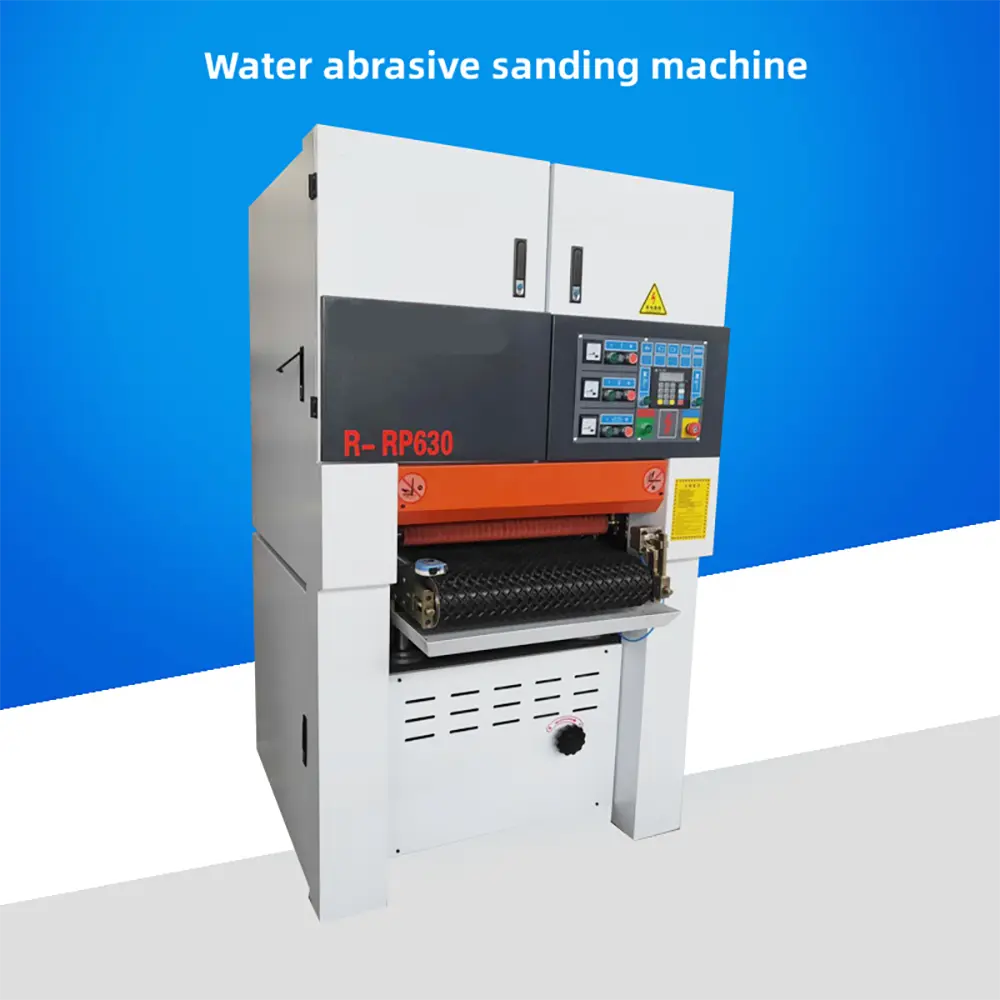

Flatbed Wet Water Sanding Machine

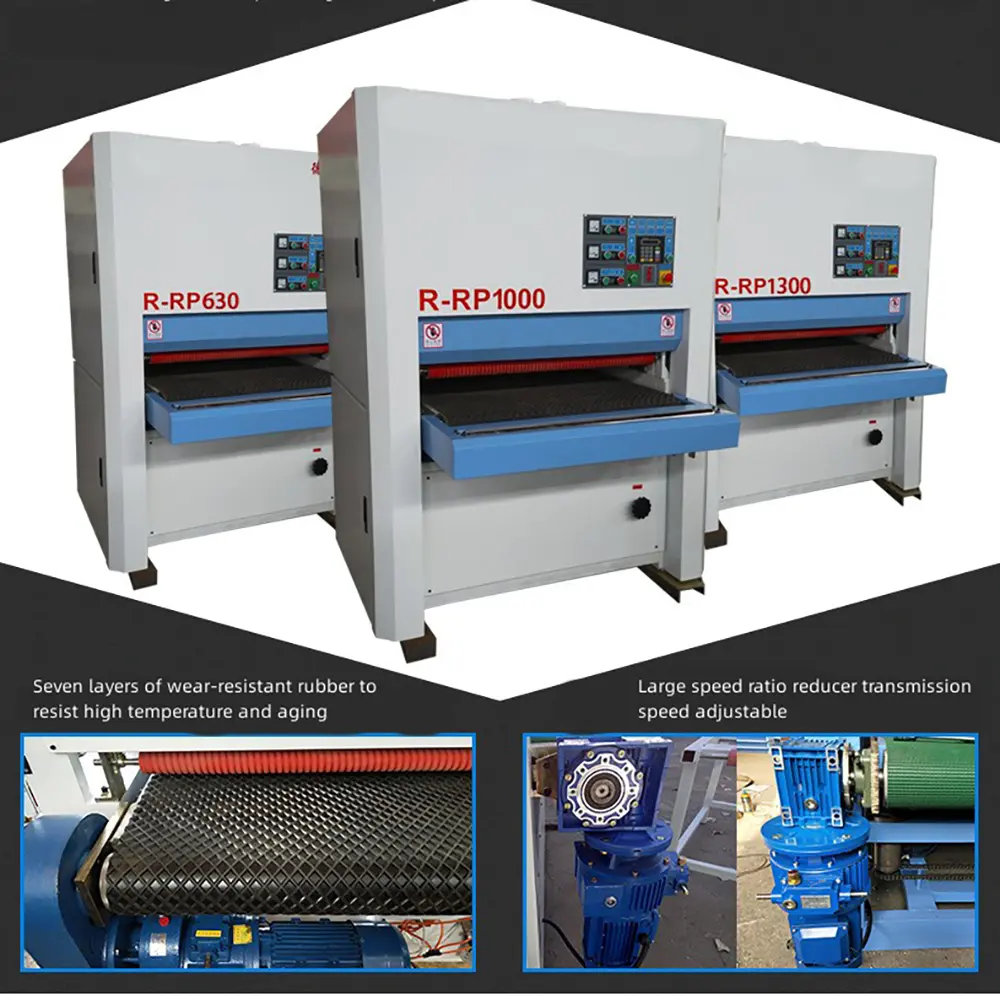

Parameter specification	R-RP630	R-RP1000	R-RP1300
Processing width (mm)	<630	<1000	<1300
Processing thickness (mm)	2-110	2-110	2-110
Processing length of plate (mm)	>50	>50	>50
Size of sanding belt (mm)	650*1920	1020*2020	1320*2020
Power of the first sanding motor (KW)	11	15-18.5	37
Power of second sanding motor (KW)	7.5	11.0-15	22
Power of conveying motor (KW)	1.1	1.5	4
Lifting motor power (KW)	0.37	0.37	0.37
Working air pressure (Mpa)	0.5	0.6	0.6
Conveying speed (m/s)	5--25	5-25	5--25
Dust suction air volume (m3/h)	5000	5000	5000
Overall dimension (length, width and height)(mm)	1600*1250*2150	1600*1450*2150	2700*2200*2150
Weight(Kg)	1400	2400	3400

The Flatbed Wet Water Sanding Machine is an advanced surface finishing machine designed for precision grinding, sanding, and polishing of flat metal materials. By combining abrasive belt sanding technology with water cooling, this machine effectively removes scratches, oxidation, burrs, and surface imperfections while achieving a smooth and uniform finish.

Widely used in stainless steel processing, sheet metal fabrication, hardware manufacturing, kitchen equipment production, elevator panels, decorative metal industries, and industrial manufacturing, the Flatbed Wet Water Sanding Machine provides an efficient solution for improving surface quality and production efficiency.

Traditional dry sanding methods often generate excessive heat, dust, and uneven finishing results. The wet water sanding system continuously supplies cooling water during operation, reducing friction heat, extending abrasive belt life, minimizing dust pollution, and improving the final surface appearance of workpieces.

High Performance Wet Sanding Technology

The Flatbed Wet Water Sanding Machine uses a high-quality abrasive belt system combined with water circulation technology to achieve stable and efficient surface treatment. The continuous water flow cools the workpiece and sanding belt, preventing overheating and ensuring consistent finishing performance.

The machine is suitable for processing large flat metal sheets, plates, panels, and components. The flatbed working structure provides stable support and allows operators to achieve uniform sanding results across the entire surface.

With adjustable sanding pressure, feeding speed, and abrasive belt options, the machine can meet different surface finishing requirements, from light polishing to heavy material removal.

Excellent Surface Finishing Results

Surface quality plays an important role in product appearance and performance. The Flatbed Wet Water Sanding Machine creates smooth, clean, and professional finishes by removing:

Welding marks
Cutting burrs
Oxide layers
Surface scratches
Uneven textures
Manufacturing defects

The wet sanding process produces a more consistent surface compared with manual grinding, making it ideal for products requiring high decorative and functional standards.

Wide Application Industries

The Flatbed Wet Water Sanding Machine is widely used in:

Stainless steel sheet processing
Metal fabrication factories
Automotive parts manufacturing
Elevator panel production
Kitchen equipment manufacturing
Hardware product processing
Aluminum profile finishing
Decorative metal production
Industrial machinery components

It is an excellent choice for manufacturers requiring reliable and high-quality surface treatment solutions.

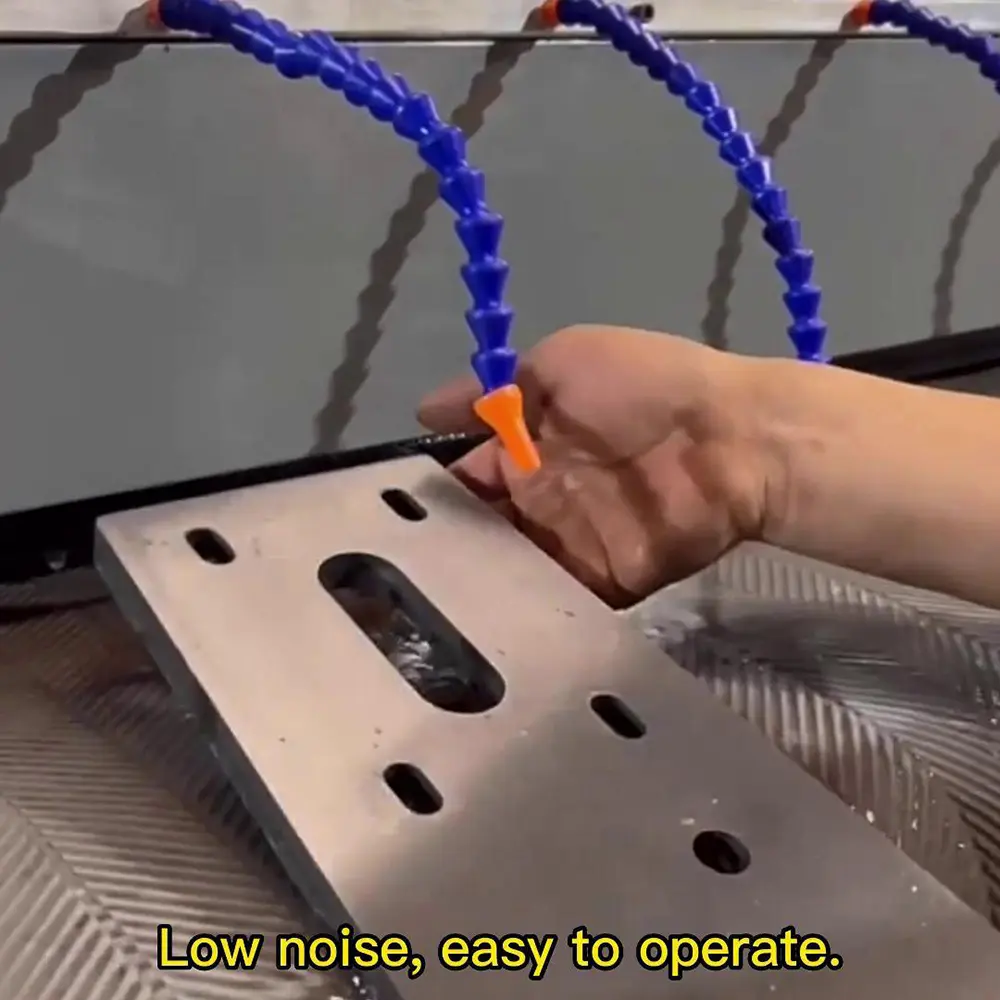

Advanced Water Cooling System

The integrated water cooling system is one of the key advantages of this machine. During sanding operation, water continuously reduces heat generated by friction, providing several benefits:

Prevents material deformation caused by overheating
Extends abrasive belt service life
Reduces airborne dust
Improves workplace safety
Produces better surface consistency

The circulating water system is designed for efficient operation and easy maintenance, making the machine suitable for long-term industrial production.

Efficient Automatic Processing

The Flatbed Wet Water Sanding Machine helps manufacturers improve production efficiency through automated sanding operations. Compared with manual polishing and grinding, it offers:

Faster processing speed
Lower labor requirements
More consistent finishing quality
Reduced production costs
Improved product appearance

The machine can be integrated into production lines or used as an independent finishing solution.

Durable Machine Structure

Built with a strong industrial frame and reliable components, the Flatbed Wet Water Sanding Machine is designed for continuous operation in demanding manufacturing environments.

The stable structure reduces vibration during processing, ensuring accurate sanding performance and extending machine service life. High-quality electrical systems and transmission components provide reliable operation with minimal downtime.

Suitable Materials

The Flatbed Wet Water Sanding Machine can process a wide range of materials, including:

Stainless Steel
Carbon Steel
Aluminum
Copper
Brass
Alloy Materials
Metal Plates
Flat Metal Panels

Different abrasive belts can be selected according to material type and required surface finish.

Key Advantages Of Flatbed Wet Water Sanding Machine
1. Superior Surface Quality

Produces smooth and uniform finishes suitable for high-end metal products.

2. Water Cooling Protection

Reduces heat damage and improves sanding efficiency.

3. High Production Efficiency

Automatic operation increases output compared with traditional manual polishing.

4. Reduced Dust Pollution

Wet sanding technology creates a cleaner and safer working environment.

5. Longer Abrasive Belt Life

Water cooling reduces wear and improves belt durability.

6. Easy Operation

Simple controls allow operators to quickly adjust processing parameters.

Why Choose Our Flatbed Wet Water Sanding Machine?
Professional Manufacturing Experience

We specialize in industrial surface finishing equipment and provide reliable machines designed for global manufacturing requirements.

High Precision And Stable Performance

Our Flatbed Wet Water Sanding Machine uses advanced technology and quality components to ensure accurate and consistent processing results.

Customized Solutions

Different machine sizes, sanding widths, abrasive configurations, and automation options can be customized according to customer production needs.

Cost-Effective Industrial Solution

Factory-direct supply helps customers obtain competitive prices while maintaining excellent machine quality and technical support.

Complete Customer Service

We provide professional installation guidance, operation support, spare parts supply, and after-sales service to ensure long-term customer satisfaction.

FAQS
Q1: What is a Flatbed Wet Water Sanding Machine used for?

A Flatbed Wet Water Sanding Machine is used for grinding, sanding, and polishing flat metal surfaces while using water cooling technology to improve finishing quality.

Q2: Why use water during sanding?

Water reduces friction heat, prevents surface damage, extends abrasive belt life, and reduces dust during operation.

Q3: What materials can be processed by this machine?

The machine can process stainless steel, aluminum, carbon steel, copper, brass, and other metal materials.

Q4: Can it remove welding marks and scratches?

Yes. The machine can effectively remove welding marks, oxidation, scratches, and surface imperfections.

Q5: Is this machine suitable for stainless steel finishing?

Yes. It is widely used for stainless steel sheet grinding, polishing, and decorative surface treatment.

Q6: Can sanding speed be adjusted?

Yes. Processing speed and sanding pressure can usually be adjusted according to different materials and finishing requirements.

Q7: Do you provide customized machines?

Yes. Customized solutions are available based on workpiece size, production capacity, and application requirements.
