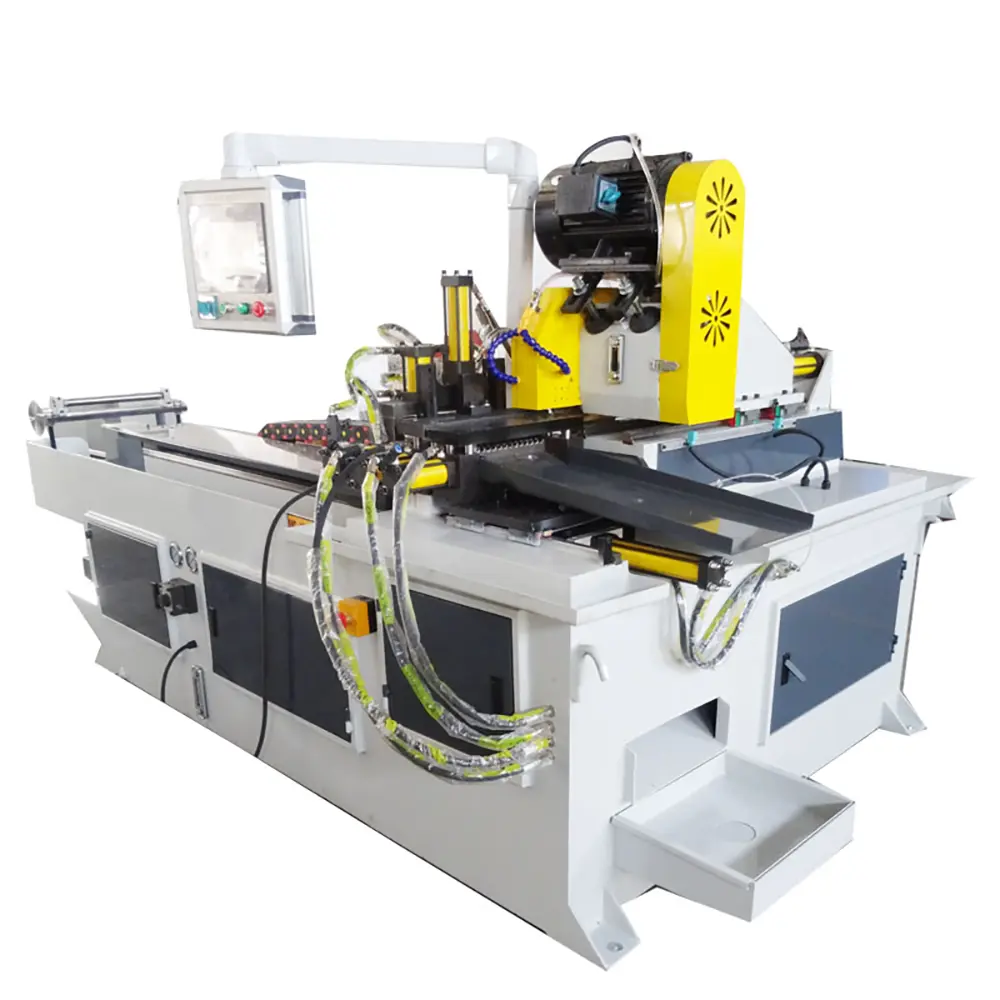

425 CNC Hydraulic Pipe Cutting Machine Technical Parameters

425 CNC Hydraulic Pipe Cutting Machine is designed for high-precision automatic cutting of large diameter metal pipes and tubes. With CNC control and hydraulic clamping,it provides efficient solutions for steel pipe,stainless tube,and industrial fabri.

The 425 CNC Hydraulic Pipe Cutting Machine is a high-performance automatic metal tube cutting system designed for precision cutting of large diameter pipes and profiles. Equipped with advanced CNC control technology and a powerful hydraulic cutting system,this machine delivers accurate,stable,and efficient cutting performance for industrial manufacturing applications.

With a maximum cutting capacity of 425mm,the machine is suitable for processing large steel pipes,stainless steel tubes,carbon steel pipes,and various metal profiles. It is widely used in steel structure manufacturing,metal furniture production,automotive parts,construction materials,mechanical fabrication,and industrial pipe processing.

Compared with traditional manual or semi-automatic cutting equipment,the CNC hydraulic pipe cutting machine provides higher accuracy,faster production speed,and better consistency. The automatic control system reduces operator dependence and makes it suitable for modern intelligent manufacturing production lines.

Model 425CNC
Power mode Hydraulic


Sawing& cutting capacity
mm
φ130
130×130
130×110
  150×90
φ 76
65×65
Suitable size of saw blade Saw diameter φ250-450mm
Hole diameter Φ32mm
pin hole 2XΦ11X65mmPCD
Power of the motor   Main motor 2.4/3kw
Servo motor 1kw
Oil pump 2.2kw, 25-35kg/c㎡
Cooling motor 0.09kw
precision Feeding ±0.1mm
Cutting ±0.1mm
Drive method of cutting head Gear
Feed way Servo motor
Length of feed 1500mm( 1000 and 2000mm are available)
Clamp the end raw material 100-150mm
Clamp way horizontally or vertically
Weight 1400 KG
Over size 2950x1550x2100 mm

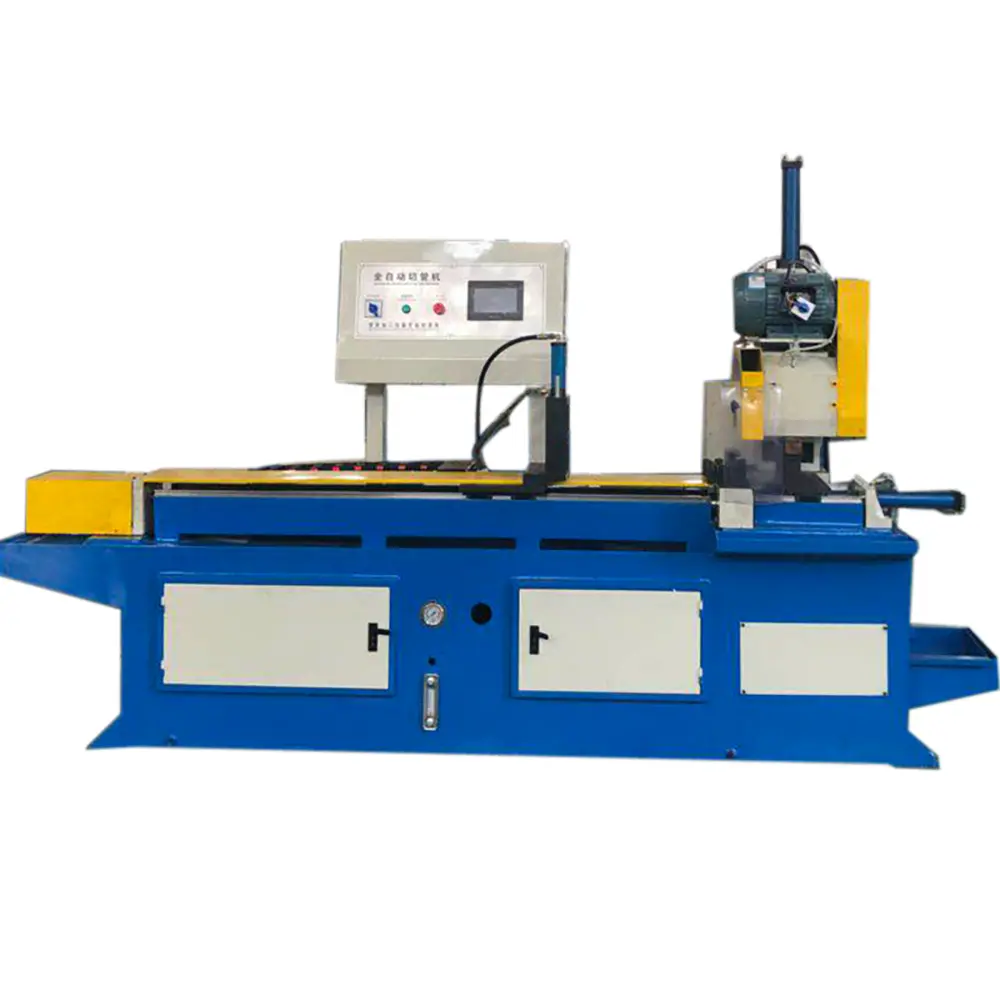

Prev:350 CNC Hydraulic Pipe Cutting Machine
