6 Meter Long Tube Cutting And Processing Capability
The 6-meter processing length allows the machine to handle long pipes and profiles efficiently.
Advantages include:
Reduced material repositioning
Less manual handling
Higher processing speed
Improved product consistency
Better production workflow
It is suitable for manufacturing long metal structures and tube components.
Automatic Cutting And Punching Process
The machine integrates cutting and punching functions into one production line.
Working process:
Tube loading
Automatic feeding
CNC positioning
Double-line hydraulic punching
Tube cutting
Finished product output
Benefits:
Reduced production steps
Lower labor cost
Improved processing accuracy
Higher equipment utilization
Better factory productivity
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.

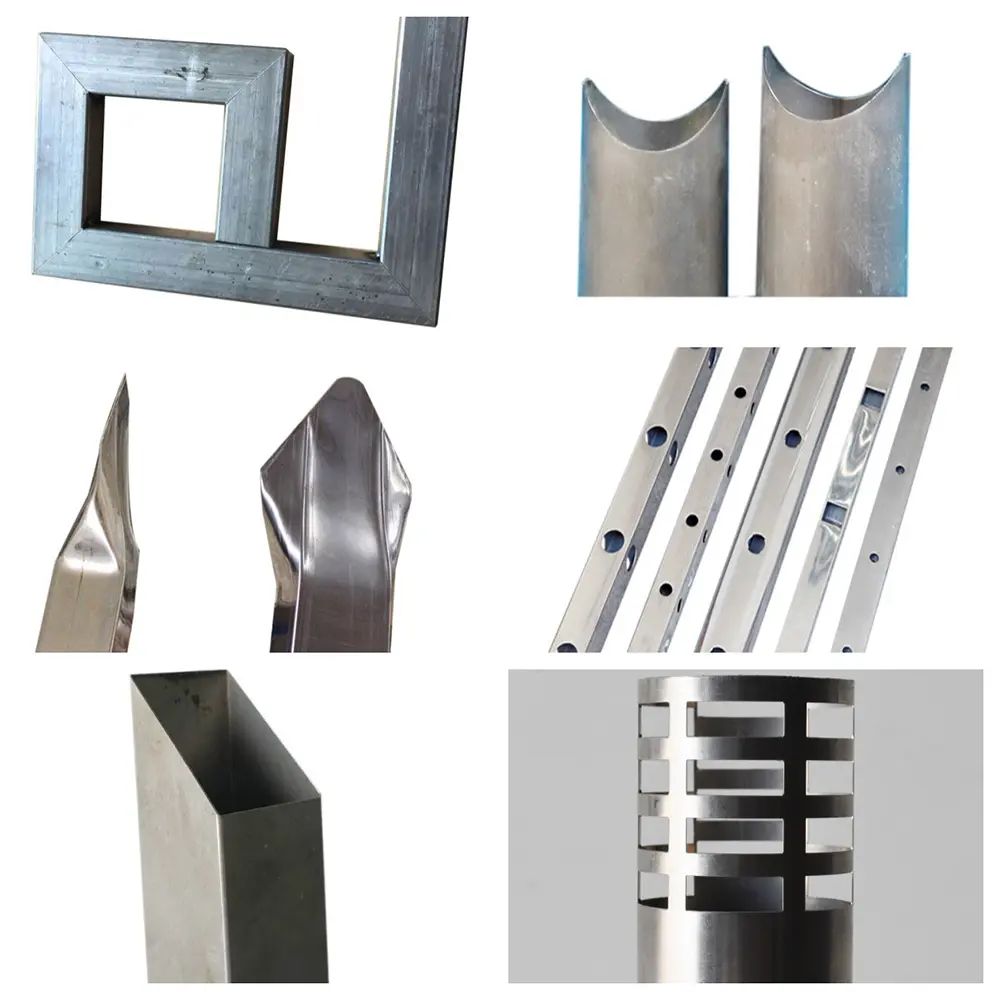

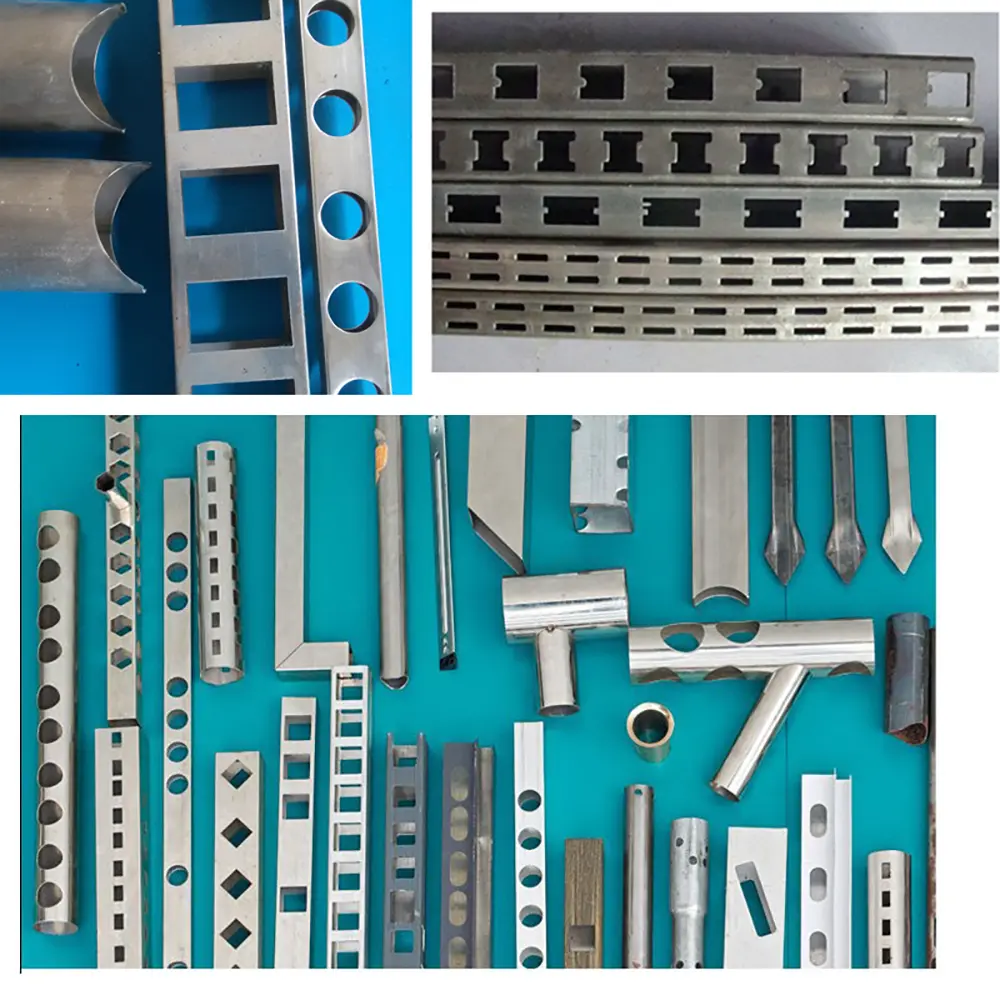

4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

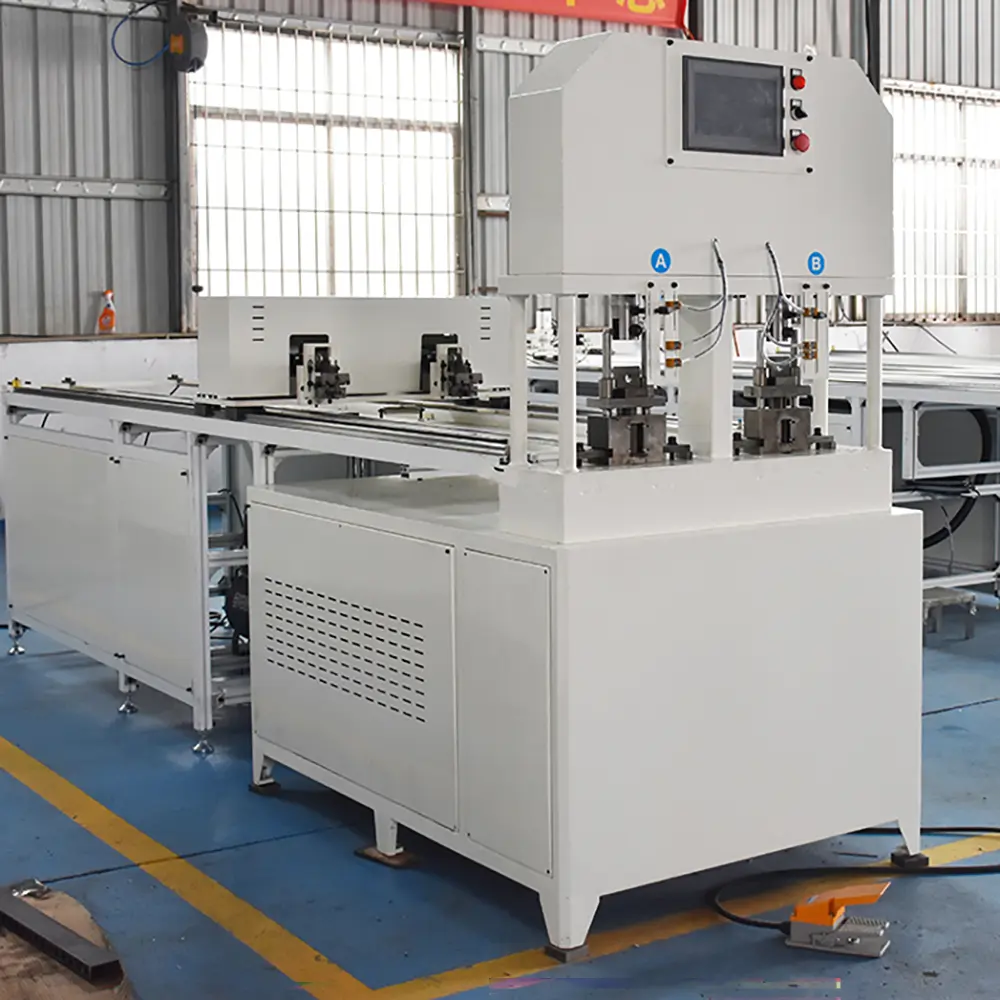

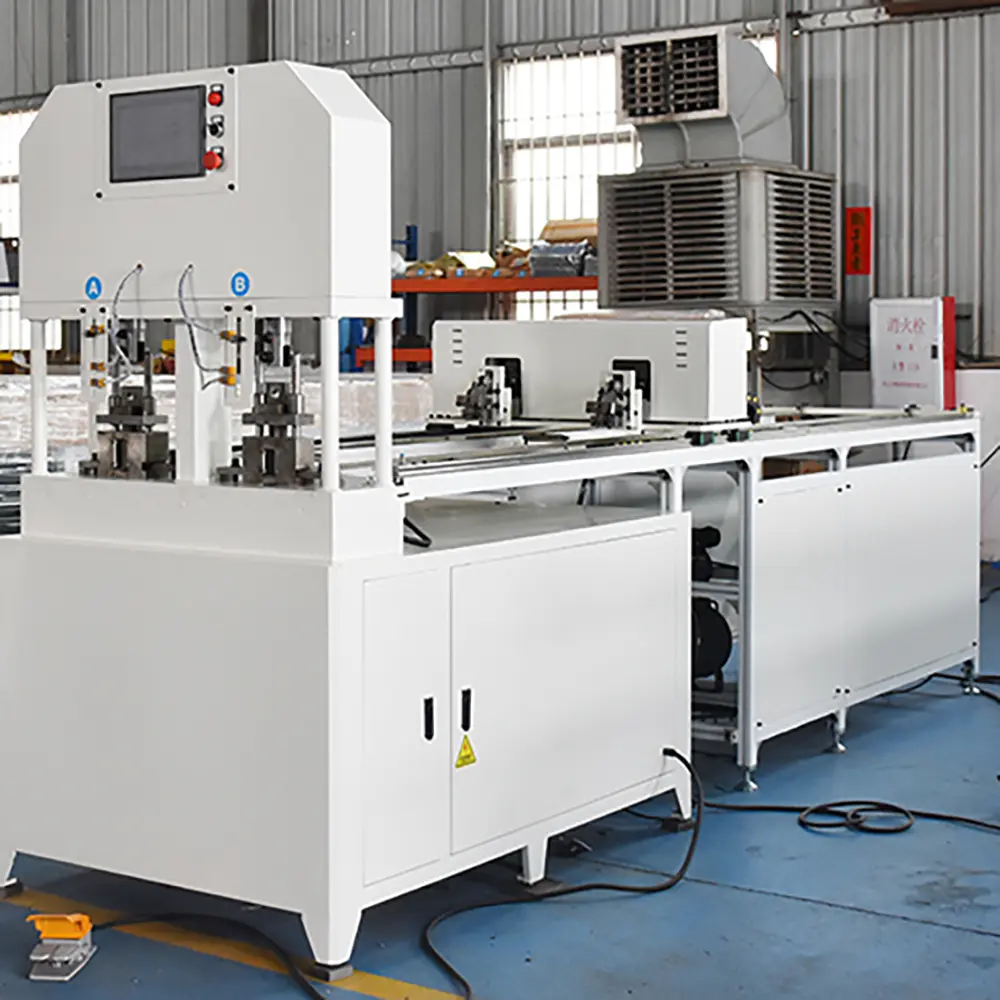

7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need Products Description
|
Model |
15TA |
15TB |
20TA |
20TB |
|
Feed length |
3000 |
6000 |
3000 |
6000 |
|
Nominal force |
150kn |
250kn |
|
Stroke |
120mm |
150mm |
|
Max punch Thickness |
SS 2.4mm,MS:3mm |
SS 4mm,MS:5mm |
|
Motor power |
5.5kw |
7kw |
|
Punching capacity(metal thickness) |
≤3mm |
≤5mm |
|
Fit to material |
Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on |
|
Fit to shape |
Round, square, rectangle ,oval, angle steel |
|
Tube and hole size |
Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size, |
|
Punching hole accuracy |
0.01mm |
|
Feed accuracy |
0.1mm |
|
Color |
white , or customized |
|
Feed way |
Slideway and servo motor |
|
Control way |
PLC, 10 inch Touch Screen |
|
Clamping way |
Pneumatic(air compressor is with machine) |
|
programs stored |
200 sets, each program store different processing message |
|
Operation language |
Chinese and English, or customized |
|
Voltage |
220V,380V,415V,440v, customized as requirement |
|
Cutting method(option ) |
Saw blade ,or hydraulic punch cutting |
Measure |
Machine head |
1500x1000x1700mm |
Feed frame |
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed) |
FAQS
Q1: What is a 15 Ton Double Line 6m Cutting And Punching Machine used for?
It is used for automatic cutting and double-line punching of round pipes,square tubes,and metal profiles.
Q2: What are the advantages of double-line punching?
Double-line punching processes two rows of holes simultaneously,improving production speed and efficiency.
Q3: What tube types can the machine process?
It can process round pipes,square tubes,rectangular tubes,and other metal profiles.
Q4: What is the maximum processing length?
The machine is designed for processing tubes up to 6 meters long.
Q5: What materials can be processed?
It can process carbon steel,stainless steel,galvanized steel,and aluminum profiles.
Q6: Can cutting and punching be completed automatically?
Yes. The machine integrates automatic feeding,punching,and cutting functions.
Q7: Can the machine be customized?
Yes. Processing length,punching tools,tube sizes,and automation functions can be customized.
