Automatic Z Type Belt Conveyor Incline Bucket Elevator Lifting Belt Conveyor

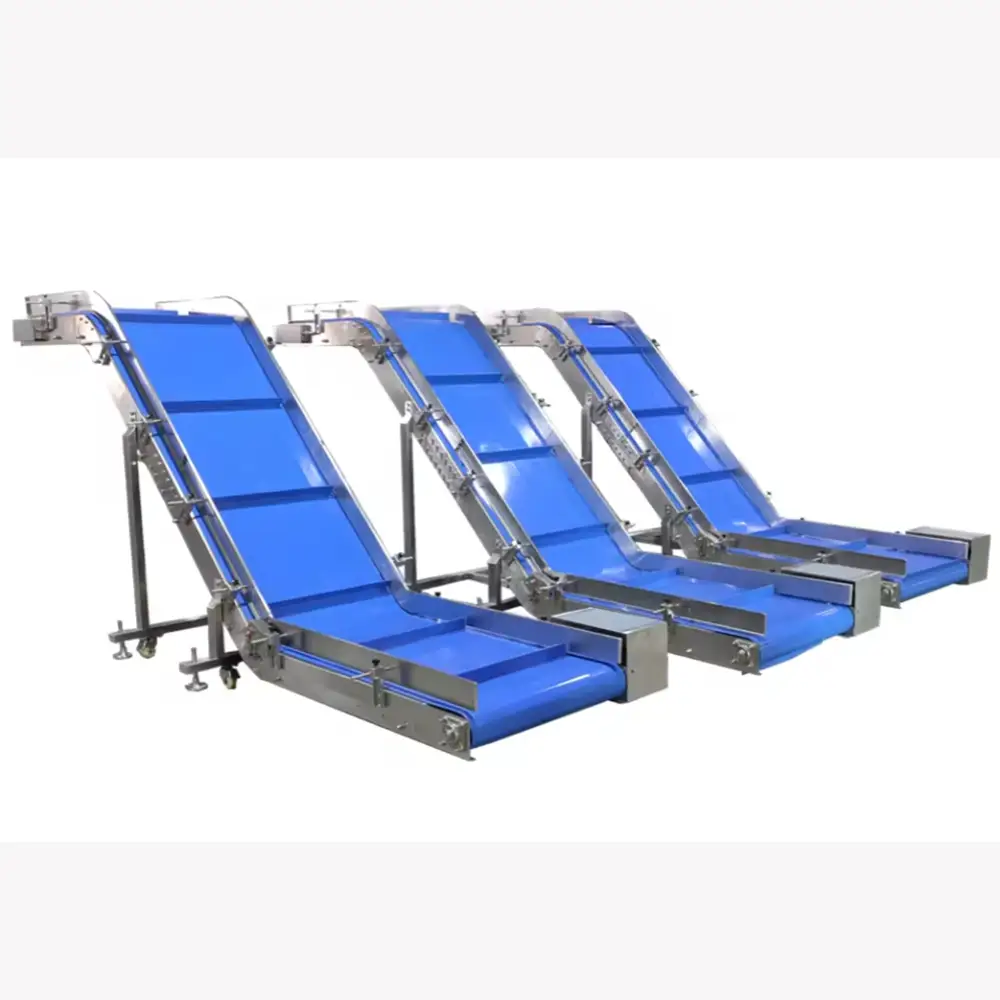

Z Type Conveyor Design

The characteristic feature of a Z type conveyor is its conveying path. Instead of moving material only horizontally, the system typically combines a horizontal infeed section, an inclined lifting section, and a horizontal discharge section.

This configuration can help connect equipment positioned at different elevations.

A typical material flow may include:

Material enters through the lower horizontal conveyor section.
The product moves toward the inclined lifting section.
The belt or buckets carry the material upward.
The material reaches the elevated discharge section.
The product is transferred to the next production, weighing, filling, packaging, or processing machine.

The exact conveyor geometry can be customized according to available factory space and the required inlet and outlet positions.

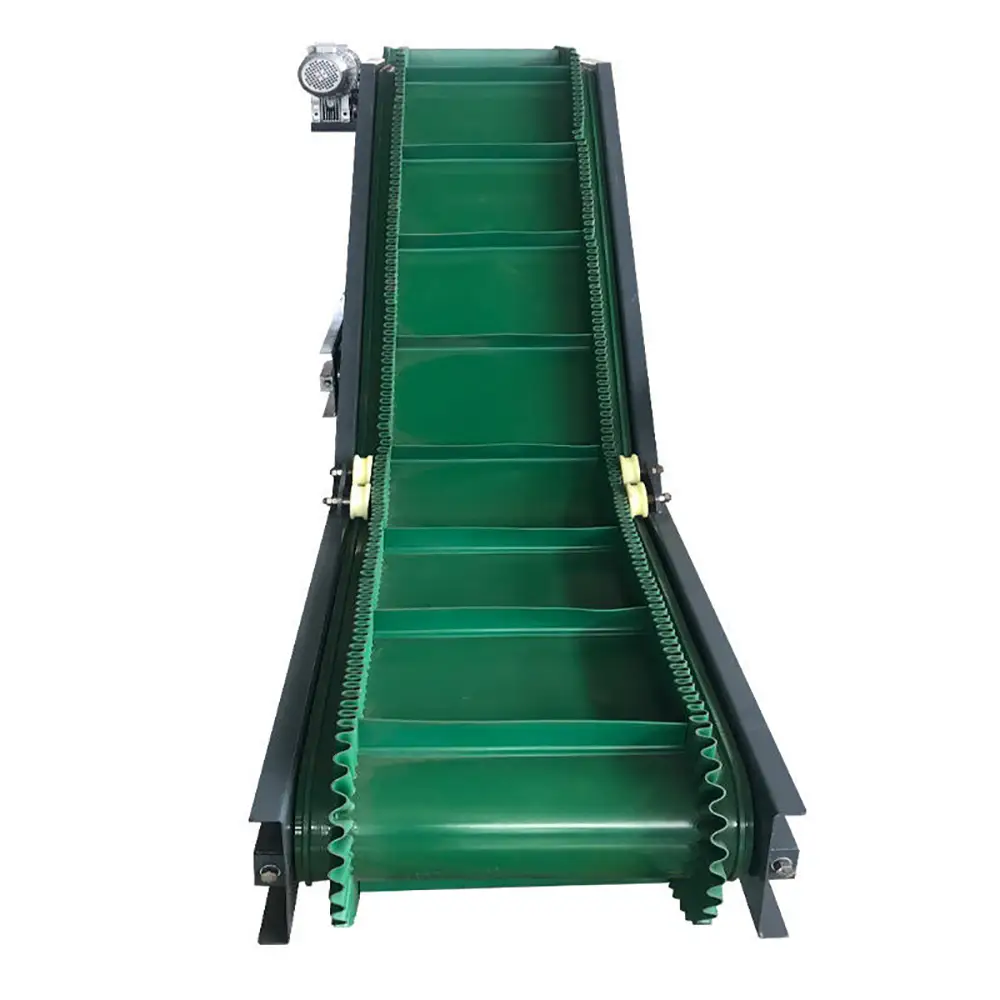

Automatic Incline Belt Conveyor

The Automatic Incline Conveyor provides continuous material transfer between different heights. It can be used as part of an automated production or packaging system, reducing the need for manual material lifting.

Depending on the product, the conveyor can use a cleated belt, bucket-style belt, or other suitable conveying configuration. The selection depends on product shape, weight, surface characteristics, flowability, and required lifting angle.

Automatic conveying can help improve production consistency while reducing repetitive manual handling.

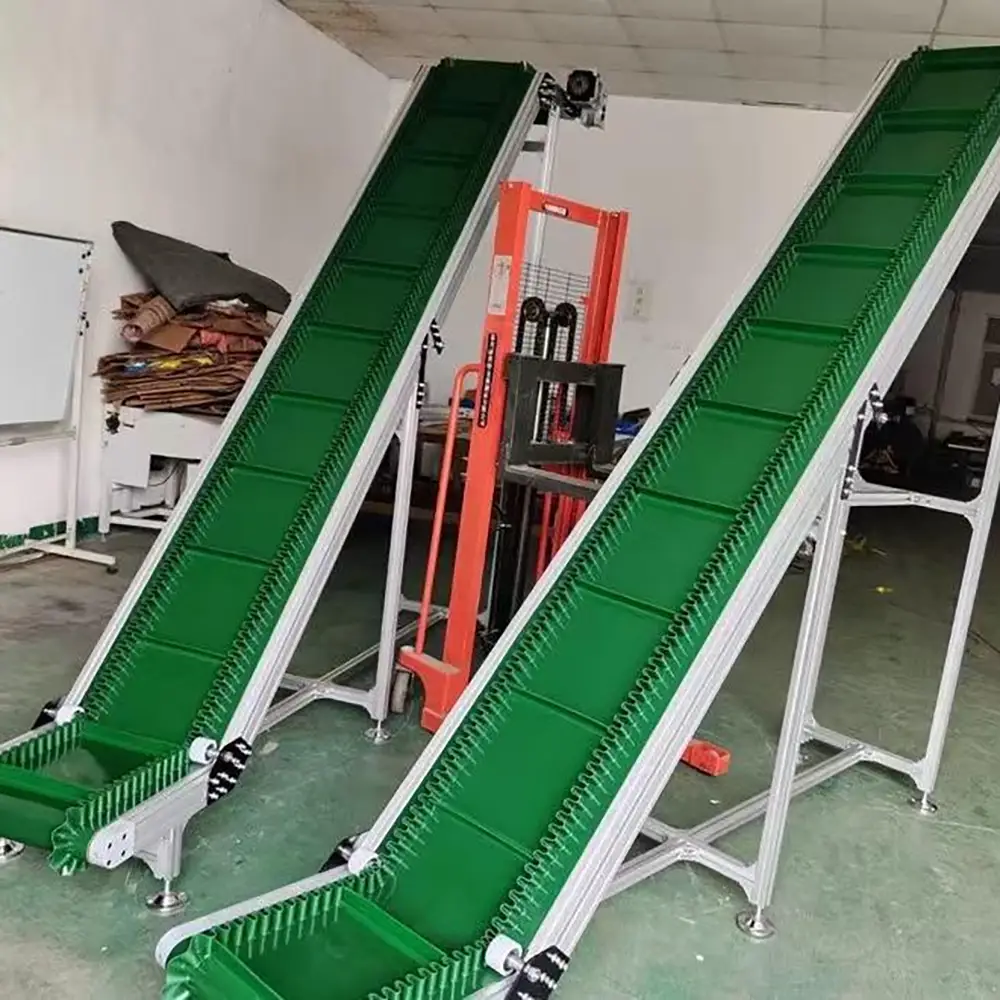

Incline Bucket Elevator Function

When configured as a bucket elevator-style system, the conveyor uses attached buckets or suitable product carriers to lift materials from a lower level to an elevated discharge point.

Buckets can help control the movement of loose or individual products during inclined and vertical transfer. This makes the system useful for products that may be difficult to transport on a flat belt alone.

Potential materials include:

Granular products
Food products
Agricultural products
Seeds
Nuts
Snacks
Hardware
Plastic components
Pharmaceutical products
Industrial parts
Packaged products

The appropriate bucket and belt configuration should be selected according to the product characteristics.

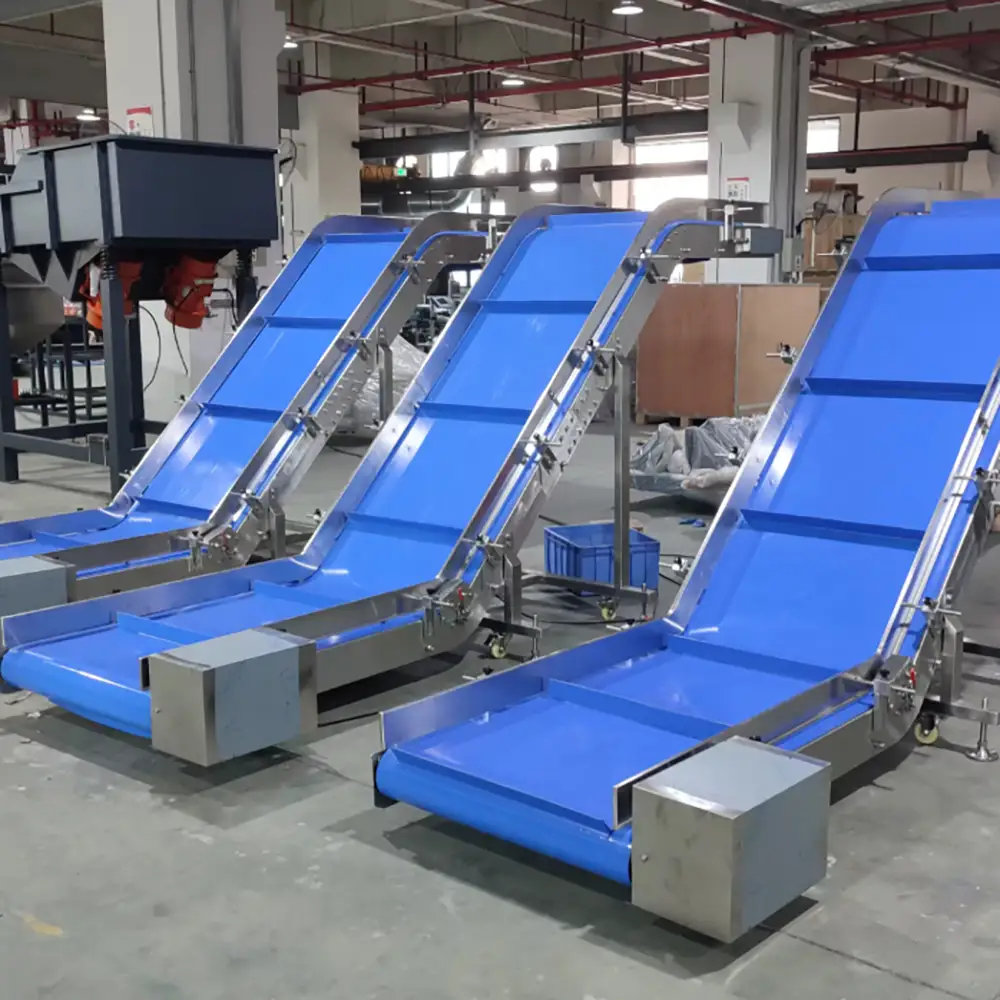

Lifting Belt Conveyor for Material Handling

A Lifting Belt Conveyor is commonly used when materials need to move between different production levels. It can connect processing equipment, storage areas, inspection stations, packaging machines, and other production equipment.

For example, a lower-level feeding system can supply material to an elevated packaging machine. The Z type conveyor transports the product upward and then delivers it horizontally to the receiving equipment.

This can simplify factory layout and reduce manual movement between production stages.

Compact Z-Shaped Layout

One of the major advantages of the Z-shaped configuration is its ability to provide elevation changes within a relatively compact footprint.

Traditional conveyor layouts may require separate horizontal and vertical conveying equipment. A Z type conveyor can combine multiple conveying directions into one integrated system.

This can be useful in factories where floor space is limited or where upstream and downstream equipment are positioned at different heights.

The exact dimensions should be designed around the customer's available space, lifting height, product flow, and machine interface requirements.

Belt and Bucket Configuration

The conveying surface is an important part of the system. Depending on the application, the conveyor can use different belt materials and structures.

For loose products, bucket-style carriers can help control the material during lifting. For packaged or stable products, a flat or cleated belt may be more appropriate.

Food-grade applications may require suitable food-contact belt materials and hygienic construction. Industrial applications may use belts selected for abrasion resistance, load capacity, or other environmental conditions.

The correct belt and bucket configuration depends on the product and working environment.

Adjustable Conveyor Capacity

Conveyor capacity depends on multiple factors, including belt width, conveyor speed, bucket volume, product density, product dimensions, loading method, lifting height, and conveying angle.

For this reason, capacity should be determined based on the complete application rather than a general machine description.

Customers should provide the product type, product size, weight, required throughput, lifting height, and operating hours when requesting a conveyor quotation.

This information helps the manufacturer select a suitable motor, belt, bucket, frame, and conveying configuration.

Applications in Food and Packaging

Z type conveyors and bucket elevator systems are widely applicable to automated food and packaging workflows when the conveyor materials and construction are appropriate for the application.

Potential products include snacks, nuts, seeds, grains, vegetables, frozen foods, candies, and other suitable products.

The conveyor can feed products to weighing machines, multihead weighers, packaging machines, filling machines, inspection equipment, and other automated production systems.

For food applications, customers should specify hygiene requirements and material-contact requirements when ordering.

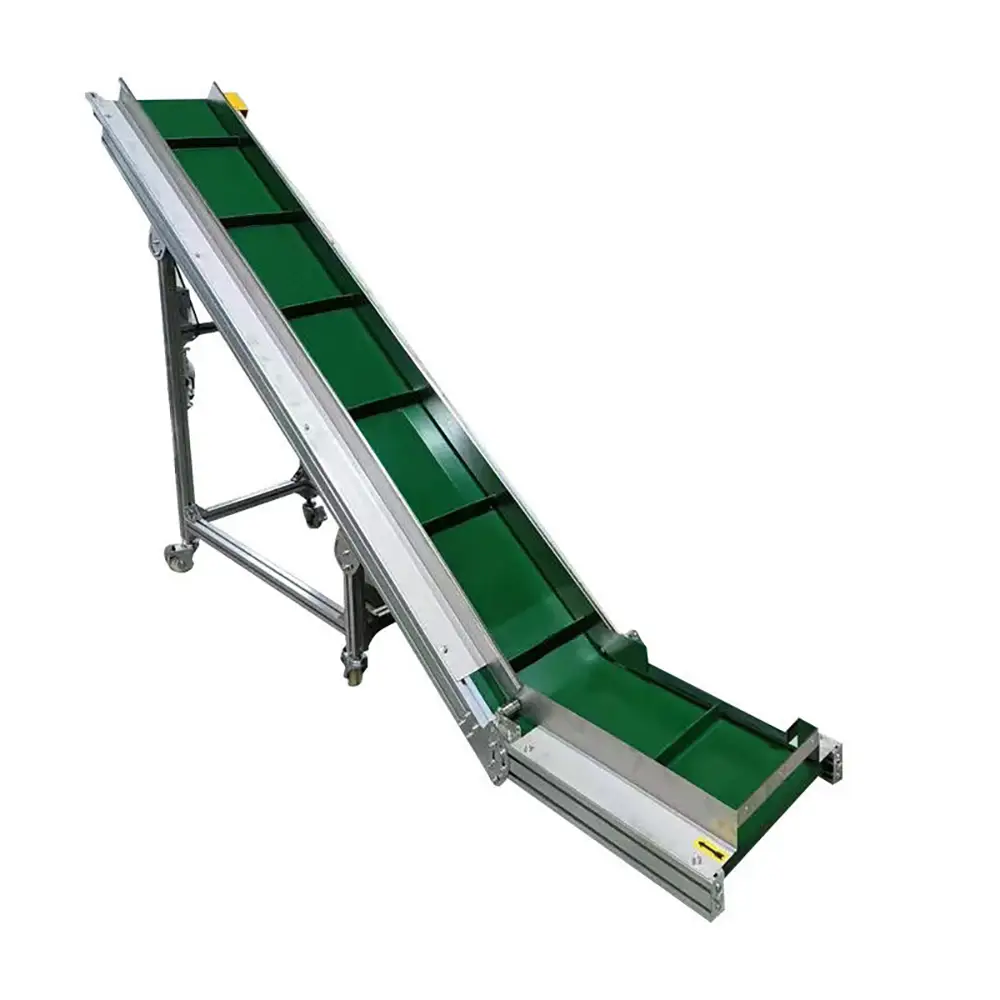

Industrial Material Handling

The same basic conveyor concept can also be used for non-food industrial products.

Potential applications include:

Plastic components
Hardware
Electronic parts
Metal components
Small packages
Agricultural products
Chemical products where appropriate
Industrial assemblies
Warehouse materials

For heavier or abrasive materials, the conveyor should be configured with suitable structural components, belt materials, drive systems, and workholding arrangements.

Integration With Automated Production Lines

The Automatic Z Type Belt Conveyor can function as a standalone material handling machine or as part of a complete automated production line.

It may be positioned between:

Feeding machines
Hoppers
Weighing machines
Filling machines
Packaging machines
Sealing machines
Inspection systems
Sorting equipment
Storage systems
Processing machines

Integration can reduce manual product transfer and help create a more continuous production workflow.

Electrical controls and conveyor operation can be coordinated with other equipment depending on the requirements of the complete production line.

Reliable Material Transfer

A properly configured conveyor provides controlled and repeatable material movement. Stable belt operation, suitable tension, appropriate loading, and correct product distribution are important for consistent conveying.

For inclined applications, the belt surface or buckets must provide sufficient product retention to reduce sliding or falling during lifting.

The conveyor angle should therefore be selected according to the product characteristics and conveying method.

Easy Operation and Maintenance

Routine maintenance is important for maintaining conveyor performance. Operators should regularly inspect belt condition, bucket attachments, rollers, bearings, drive components, tensioning mechanisms, electrical connections, and frame fasteners.

The conveyor should be kept clean and free of material buildup, especially around the belt return section and discharge area.

Any unusual noise, vibration, belt deviation, or slipping should be investigated before continued operation.

Maintenance requirements vary according to the machine design and working environment.

Safety Considerations

Conveyors contain moving belts, rollers, drive components, and other mechanical parts. Appropriate guards and safety devices should be used according to the machine configuration and applicable workplace requirements.

Operators should avoid reaching into moving components and should follow established lockout and maintenance procedures when servicing the equipment.

For inclined and elevated conveyors, the installation should also consider appropriate structural support and safe access for inspection and maintenance.

Custom Conveyor Solutions

Different factories have different material handling requirements. Therefore, the Z Type Belt Conveyor can be customized according to product characteristics and production line layout.

Customization may include conveyor width, overall dimensions, lifting height, belt type, bucket size, motor configuration, frame material, discharge height, control system, and other auxiliary components.

As a Z Type Conveyor Manufacturer, Factory, and Supplier, we can provide material handling solutions for manufacturers, distributors, wholesalers, packaging companies, and industrial automation projects.

Customers should provide product information, required capacity, conveyor dimensions, lifting height, inlet and outlet positions, operating environment, and voltage requirements when requesting a quotation.

Frequently Asked Questions
1. What is a Z type belt conveyor?

A Z type belt conveyor is a conveying system with a Z-shaped path that typically combines horizontal and inclined sections to move products from a lower level to a higher discharge point.

2. What is the difference between a Z conveyor and a bucket elevator?

A Z conveyor describes the overall conveying layout, while a bucket elevator generally refers to a lifting system using buckets or carriers. A Z type conveyor can incorporate bucket-style conveying depending on the application.

3. Can it lift products vertically?

It can provide significant elevation changes, but the exact lifting angle and height depend on the conveyor configuration and product characteristics.

4. What products can be conveyed?

Suitable products can include food products, grains, seeds, nuts, hardware, plastic parts, packaged goods, and other materials compatible with the selected belt or bucket system.

5. Can the conveyor be customized?

Yes. Width, length, lifting height, belt type, bucket size, discharge height, frame configuration, and other features can be customized.

6. Can it connect two machines at different heights?

Yes. One common application is transferring products between upstream and downstream machines positioned at different elevations.

7. How is conveyor capacity determined?

Capacity depends on belt width, speed, bucket volume, product density, product size, loading method, lifting height, and other operating parameters.

8. Can it be integrated with packaging equipment?

Yes. It can be used to feed weighing, filling, packaging, inspection, and other automated equipment when the interfaces are properly configured.

9. What information is needed for a quotation?

Provide product type, dimensions, weight, required throughput, lifting height, conveyor length, inlet and outlet heights, belt requirements, operating environment, and voltage.

10. Do you provide OEM and ODM service?

Yes. OEM and ODM solutions can be provided for customized conveyor dimensions, belt systems, buckets, controls, machine layouts, and complete material handling projects.

Why Choose Us
Flexible Z Type Design – Combines horizontal and inclined conveying sections to handle elevation changes efficiently.
Automatic Material Handling – Reduces repetitive manual lifting and transfers products continuously between production stages.
Custom Conveyor Dimensions – Conveyor width, length, lifting height, and discharge position can be configured according to factory layout.
Multiple Belt Options – Belt, cleated belt, bucket, and other conveying configurations can be selected according to product characteristics.
Wide Industrial Applications – Suitable for food, packaging, agriculture, hardware, plastics, industrial components, and other material handling applications.
Production Line Integration – Can connect feeders, weighing systems, packaging machines, processing equipment, and other automated machinery.
OEM and ODM Support – Customized machine configurations are available for specific production and material handling projects.
B2B Technical Support – We can evaluate product information, throughput requirements, dimensions, and factory layout to develop a suitable conveying solution.
